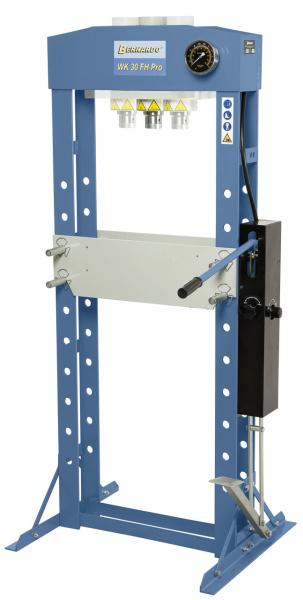

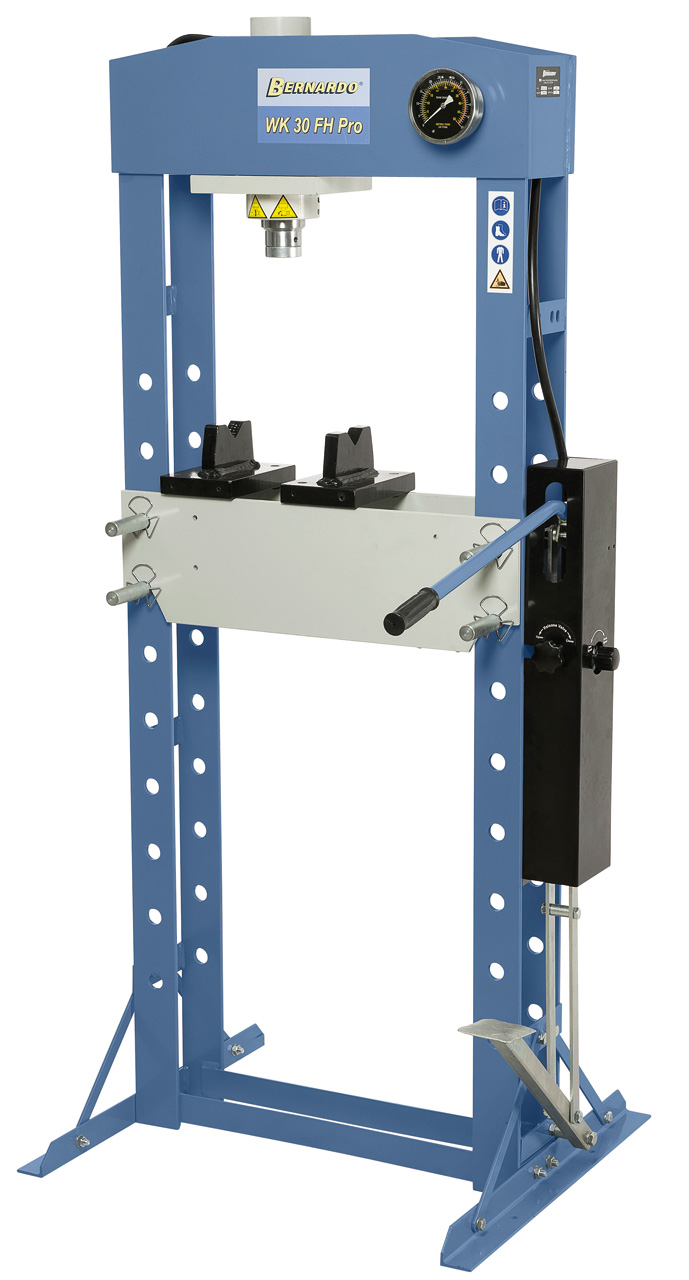

Bernardo WK 30 FH Pro Workshop press
Features Bernardo WK 30 FH Pro Workshop press
- Two adjustable speeds for piston feed by means of hydraulic pump
- Powerful workshop presses for craftsmen and repair shops
- Optimal price-performance ratio due to rational design
- The standard foot pedal leaves the hands free for the workpiece
- Increased range of application through the optionally available pressure mandrel set (10 pcs.).
- Pressure cylinder with integrated return spring for piston return
- Welded steel frame for heavy duty and high stability

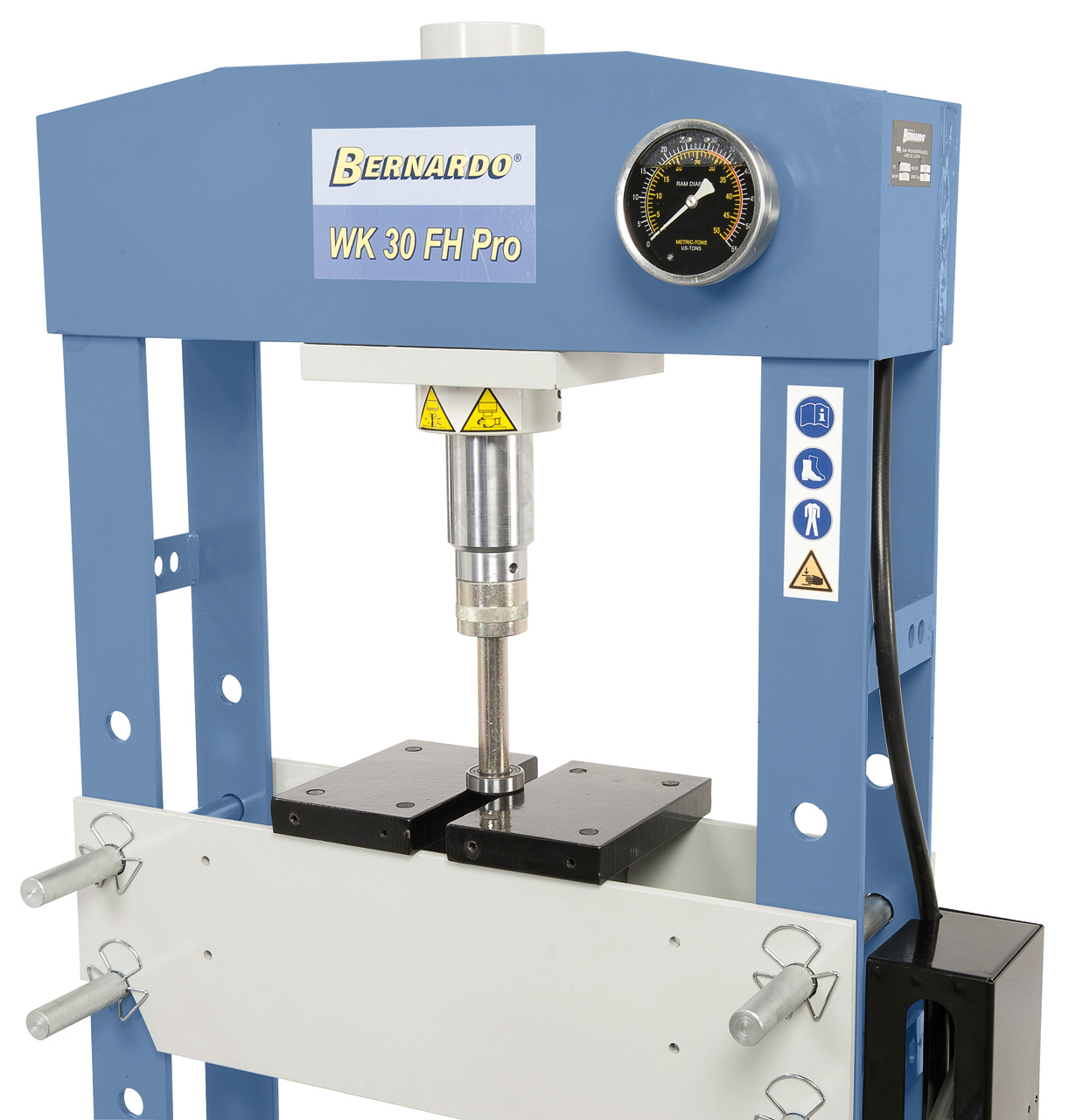

- Versatile use due to the pressure cylinder that can be moved to the left and right
Available special accessories:
- Protective grid GG-01 (Art. Nr.: 06-6142)
- Pressure mandrel set 10 pcs. (Art. Nr. 06-6147)

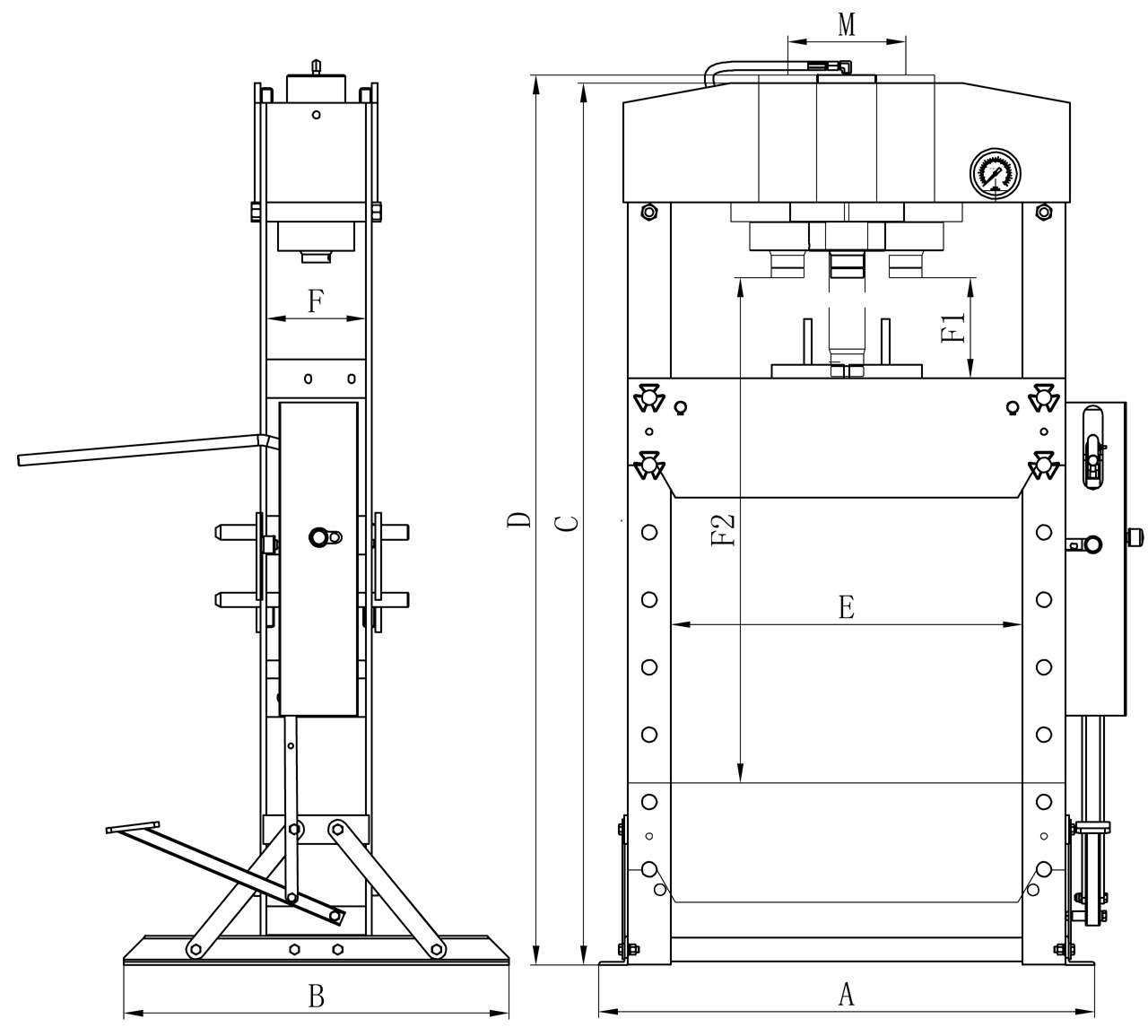

Technical data Bernardo WK 30 FH Pro Workshop press
| Compressive force | 30 tons |
| Piston stroke | 150 mm |
| Table width | 185 mm |
| Passage (E) | 530 mm |
| Passage (F) | 140 mm |
| Distance cylinder - table (F1) | 150 mm |
| Distance cylinder - table (F2) | 1030 mm |
| Cylinder slidable (M) | 200 mm |
| Width (A) | 800 mm |
| Depth (B) | 700 mm |
| Height 1 (C) | 1775 mm |
| Height 2 (D) | 1805 mm |
| Weight approx. | 162 kg |
