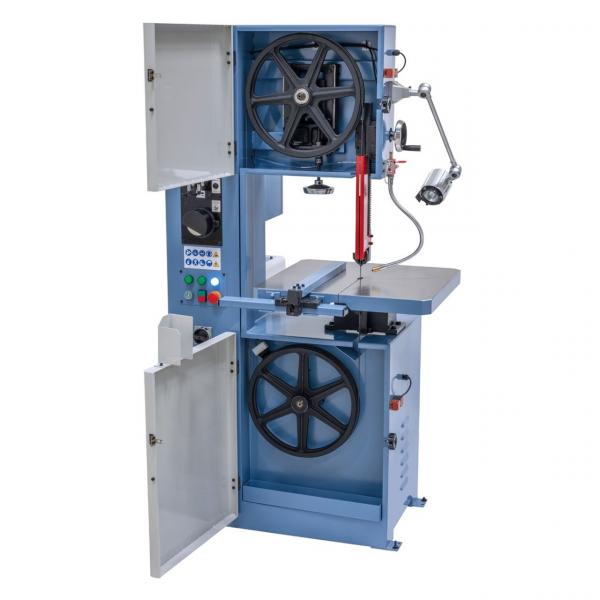

Product features Bernardo vertical band saw VBS 400
The vertical bandsaws in the VBS series are suitable for sawing almost all materials that can be sawn (e.g. steel, plastic, non-ferrous metals, non-ferrous metals, ...). They are mainly used in general production, in tool and fixture construction and in the manufacture of punching and cutting tools.
- With LED speed display as standard, for setting the desired cutting speed

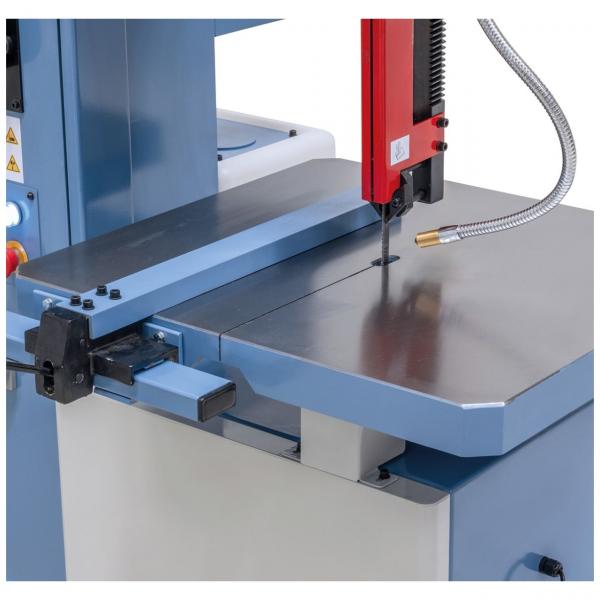

- Solid grey cast iron table, the large support surface ensures safe working
- With strip welding device, annealing device, shears and grindstone as standard
- Infinitely adjustable cutting speed as standard
- Machine body made of robust steel construction for smooth running

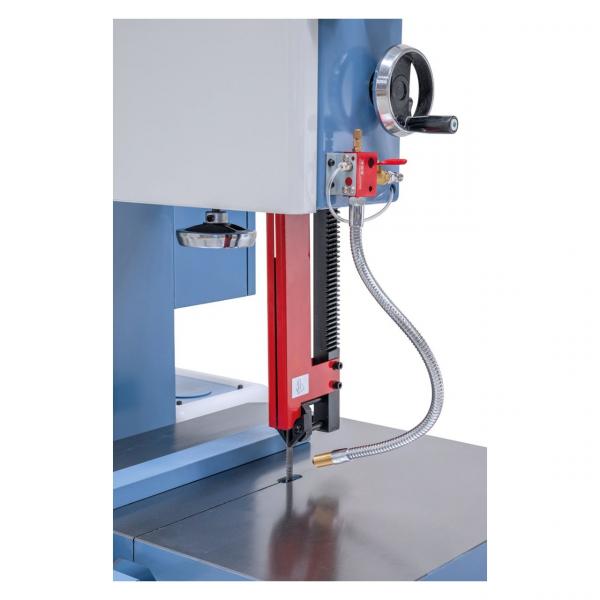

- Precision blade guide for optimum cutting results
- Ideal for sawing complicated contours and shapes
- Saw bands from 3 mm width available for radius sawing
Scope of delivery Bernardo vertical bandsaw VBS 400
- Saw band

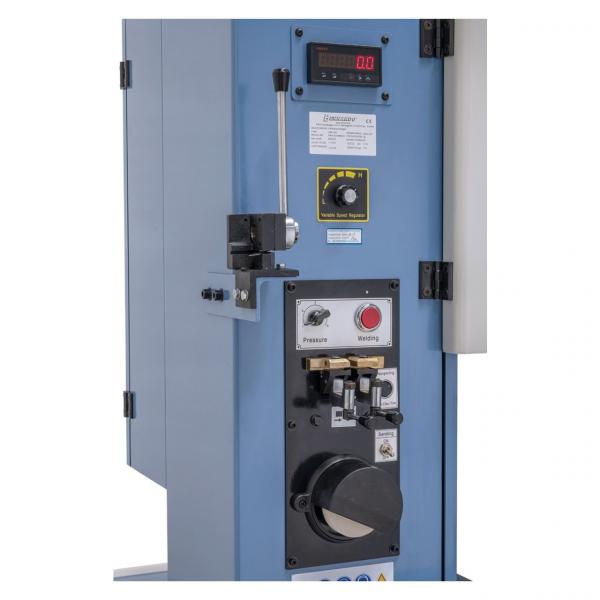

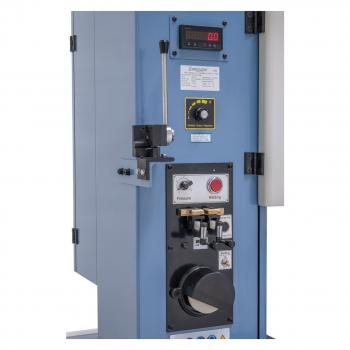

- Strip welding device with annealing device
- work light
- Shears
- Grinding stone
- Chip brush
- LED digital display
- Micro-spraying system
- Frequency converter
- Longitudinal stop
Technical data Bernardo vertical bandsaw VBS 400
| Cutting width |
400 mm |
| Cutting height |
280 mm |
| Working height |
970 mm |
| Cutting speed |
15 - 260 m/min |
| Saw blade length |
3450 mm |
| Saw band width |
3 - 16 mm |
| Table size |
600 x 550 mm |
| Table swivelling range |
-15° to +45° |
| Engine power |
1,5 kW |
| Sheet welder |
2,4 kVA |
| Machine dimensions (L x D x H) |
1080 x 880 x 1810 mm |
| Weight approx. |
325 kg |
