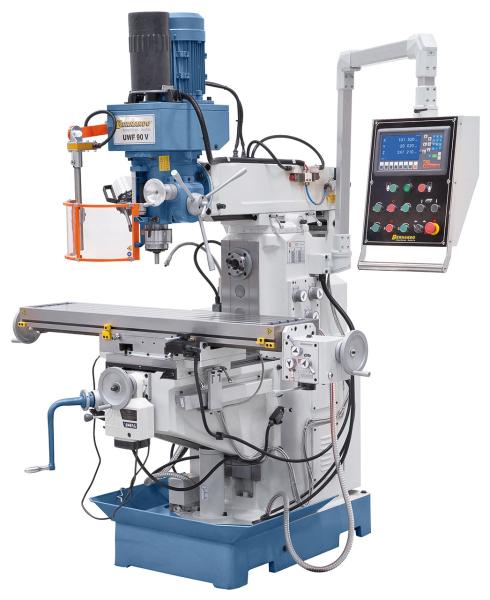

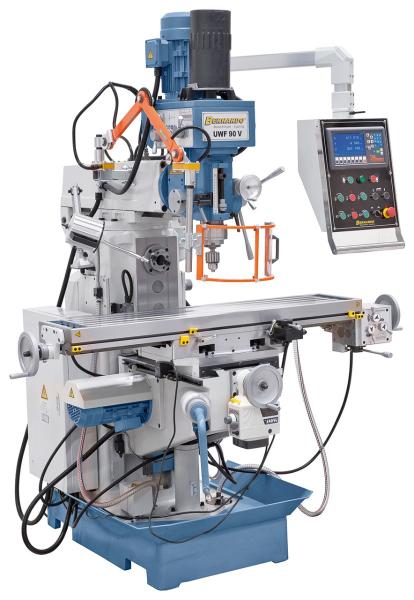

The universal milling machine UWF 90 V was specially designed for the economic production of single workpieces and small series with high precision. Due to its great user-friendliness, this model is particularly suitable for mechanical engineering, plant construction, production and single-part production. Furthermore, this model is equipped with an automatic spindle feed.
Features Bernardo UWF 90 V universal milling machine with pneumatic tool clamping
- Comfortable changing of the milling tools due to pneumatic tool clamping
- Versatile application possibilities in general mechanical engineering, production, single part production,...
- Standard with automatic table feed in x and y axis and rapid traverse function
- Positioning motor for z-axis included in delivery
- Automatic quill feed (0.08 - 0.25 mm/rev) included in delivery
- Machine stand in heavy cast iron design for vibration-free operation
- Increased productivity through standard digital 3-axis position display
- Smooth running due to ground gear wheels running in an oil bath
- Optimally suited for individual and small series
Scope of delivery Bernardo UWF 90 V universal milling machine with pneumatic tool clamping
- 3-axis digital display ES-12 H with LCD display
- Pneumatic tool clamping (DIN 2080)
- Tightening spindle M 16
- Horizontal counter bearing
- Adjustable protective device
- Protective cover for horizontal milling
- Adapter ISO 40 / B18, ISO 40/MK 3
- Reducing sleeve MK 3 / 2
- Long milling arbor ISO 40/27 mm, ISO 40/32 mm
- Coolant system
- LED machine light
- Operating tool
Technical data Bernardo UWF 90 V universal milling machine with pneumatic tool clamping
|
Table size
|
1270 x 280 mm
|
|
Spindle mount
|
ISO 40
|
|
Spindle speed vertical
|
(8) 90 - 2000 rpm
|
|
Spindle speed horizontal
|
(12) 40 - 1300 rpm
|
|
Sleeve stroke
|
120 mm
|
|
Sleeve feed
|
0.08 / 0.15 / 0.25 mm/rev
|
|
Travel distance longitudinal (x)
|
750 mm*
|
|
Traverse path transverse (y)
|
230 mm
|
|
Travel vertical (z)
|
300 mm
|
|
Invitation
|
240 – 740 mm
|
|
Pivoting table
|
-45° bis +45°
|
|
Spindle head swivel range
|
-90° bis +90°
|
|
Distance spindle / table
|
125 – 425 mm
|
|
Feed range longitudinal
|
(8) 32 - 700 mm/min
|
|
Rapid feed z-axis
|
660 mm/min
|
|
T-slot size
|
14 mm
|
|
Motor power vertical
|
2.2 kW
|
|
Motor power horizontal
|
2.2 kW
|
|
Machine dimensions (W x D x H)
|
1750 x 1500 x 2200 mm
|
|
Weight approx.
|
1310 kg
|
|
* manual
|
