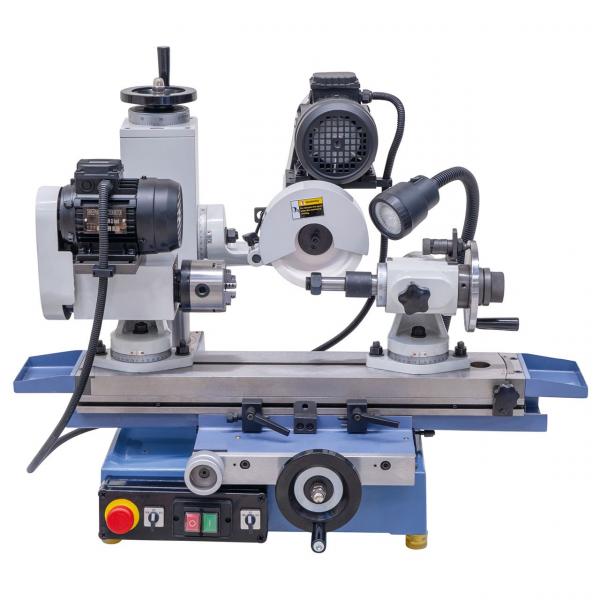

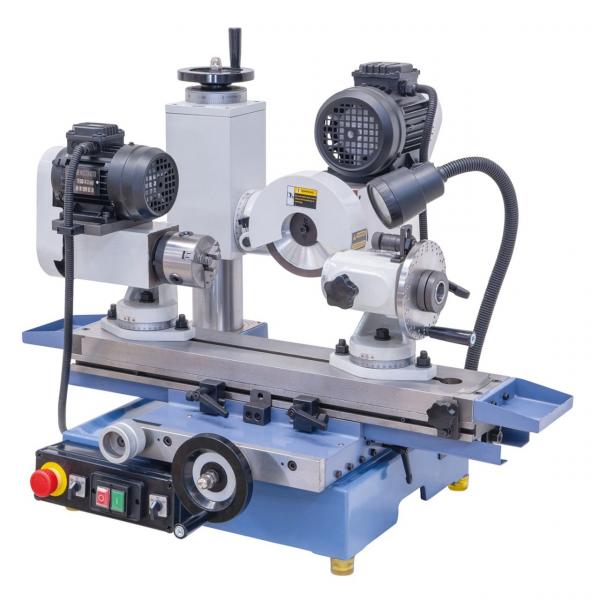

Product highlights Bernardo universal tool grinding machine UWS 350
The UWS 350 universal tool grinding machine offers the user a maximum of application possibilities in the smallest of spaces. The extensive range of special accessories leaves nothing to be desired and guarantees maximum performance.
- For grinding a wide variety of tools, e.g. drills, milling cutters, turning chisels, ...
- Extensive range of accessories included in the scope of delivery
- Robust construction for vibration-free operation
- Ergonomically positioned switching and operating elements
- Headstock height-adjustable and swivelling (-45° to +45°)
- Drive unit with 3-jaw chuck (80 mm) for grinding shafts
- High productivity thanks to extensive application options
- The table can be swivelled for conical grinding and set to the desired position using a scale

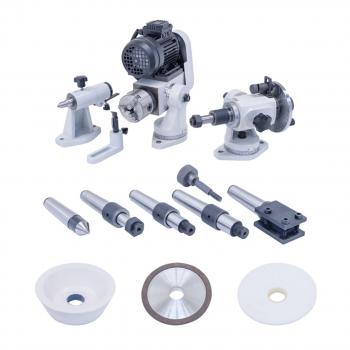

Scope of delivery Bernardo universal tool grinding machine UWS 350
- Tailstock
- Adjustable table end stops
- Standard centre 60°
- 1 corundum grinding disc type B 150 x 32 mm
- 1 corundum cup wheel type A 150 x 50 x 32 mm
- 1 diamond grinding disc type B 125 x 32 mm

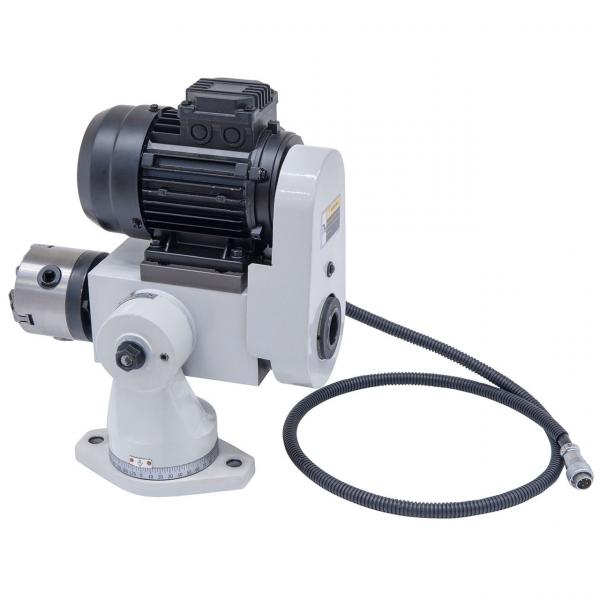

- Drive unit with 3-jaw chuck diam. 80 mm

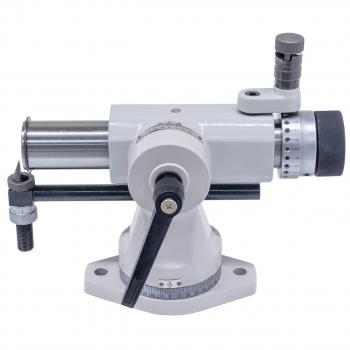

- Turning tool holder
- Cutter arbors 22, 27, 32 mm
- Diamond honing stone
- LED work light
- Right-left rotation
- Operating tool
Technical data Bernardo universal tool grinding machine UWS 350
|
Max. Workpiece diameter
|
260 mm
|
|
Table size
|
640 x 130 mm
|
|
Longitudinal table movement
|
330 mm
|
|
Cross table movement
|
195 mm
|
|
Grinding head
|
|
|
Vertical swivelling
|
-45° to +45°
|
|
Horizontal swivelling
|
-45° to +45°
|
|
Grinding spindle speed
|
5000 rpm
|
|
Engine power
|
0.55 kW
|
|
Tension
|
400 V
|
|
Drive unit with 3-jaw chuck
|
|
|
Vertical swivelling range
|
-35° to +35°
|
|
Horizontal swivelling range
|
360°
|
|
Speed
|
1300 rpm
|
|
Engine power
|
90 W
|
|
Tension
|
400 V
|
|
Machine dimensions (W x D x H)*
|
870 x 650 x 800 mm
|
|
Weight approx.
|
197 kg
|
* without base frame
