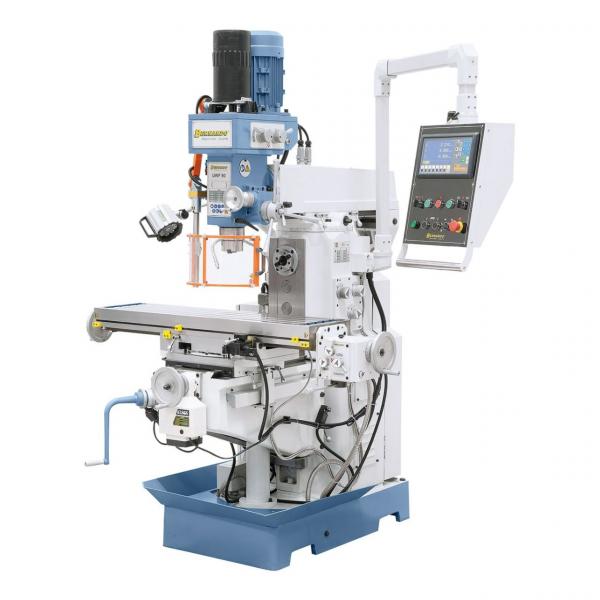

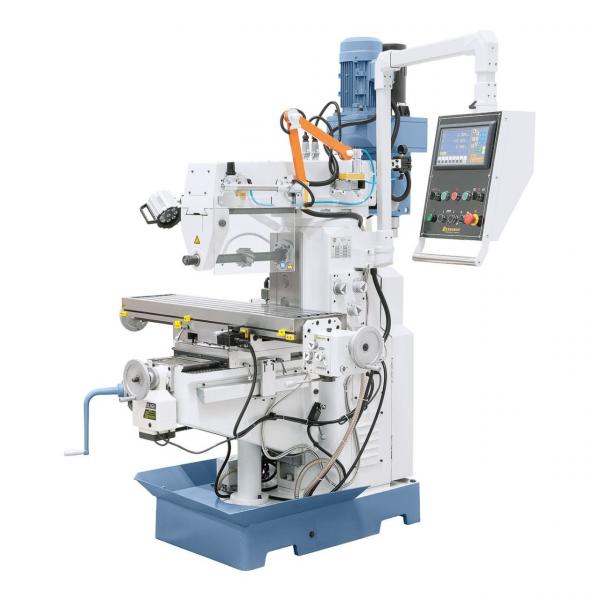

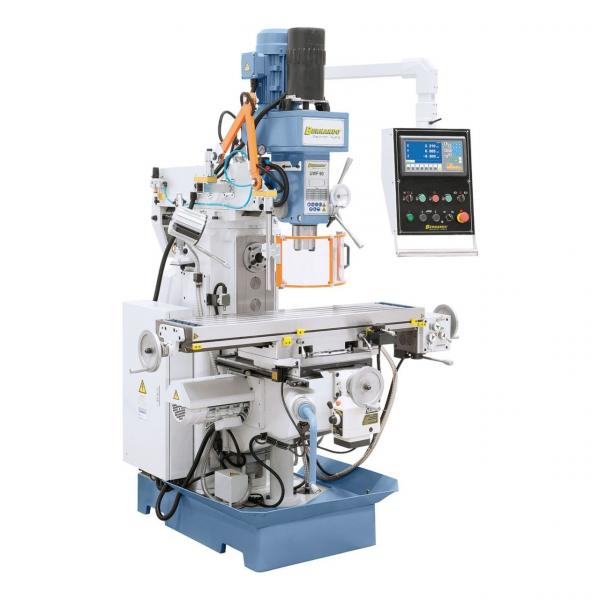

Bernardo Universal Milling Machine UWF 90
The UWF 90 universal milling machine is equipped as standard with feeds in the x and y axes. The table stroke (z-axis) is conveniently carried out by means of a positioning motor. Due to the versatile application possibilities and the extensive scope of delivery, the machine is ideal for mechanical workshops, repair shops, machine construction, ...
Features Bernardo Universal Milling Machine UWF 90
- Standard with automatic table feed in x- and y-axis and rapid traverse function.
- Large-dimensioned cross table with T-slots, precisely surface-machined
- Machine column in heavy cast iron design for vibration-free operation
- Dovetail guide with adjustable gibs in all 3 axes
- Positioning motor for z-axis included in delivery
- Wide speed and feed range
- Optimally suited for individual and small series production
- High concentricity due to taper roller bearings
- Right-left running device for thread cutting
Scope of delivery Bernardo Universal Milling Machine UWF 90
- 3-axis digital display ES-12 H with LCD display
- M 16 tightening spindle
- LED machine light
- Coolant device

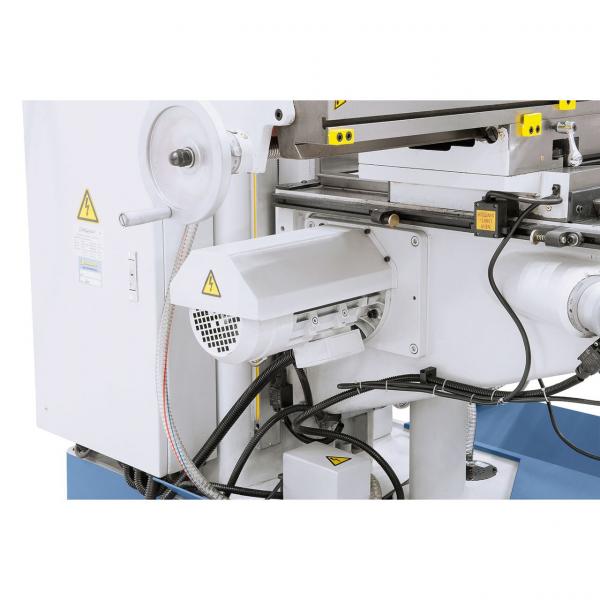

- Automatic table feed in x- and y-axis
- Positioning motor in z-axis
- Adapter ISO 40/B 18, ISO 40/MK 3
- Reducing sleeve MK 3 / 2
- Long milling arbor 27 mm
- Horizontal counter bearing
- Adjustable guard

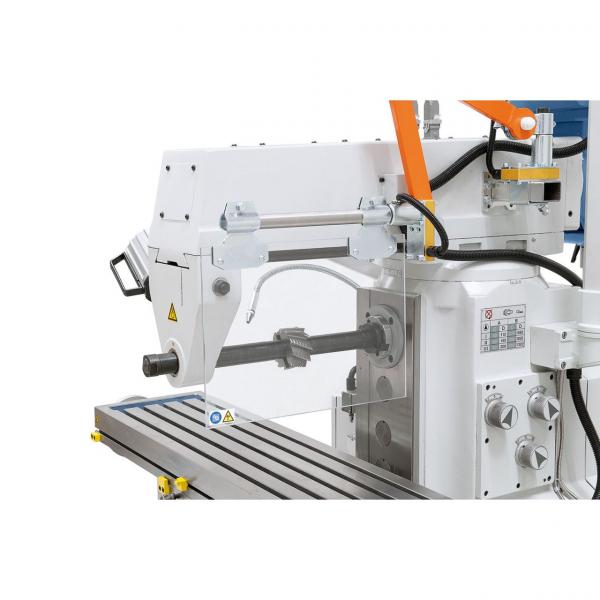

- Protective cover for horizontal milling
- Operating tool
Available special accessories Bernardo Universal Milling Machine UWF 90
- Hydraulic machine vice VH 125 (28-2089)
- Wide clamping machine vice FJ 125 (28-2086)
- Semi-universal dividing head BS-1 (27-1046)
Technical data Bernardo Universal Milling Machine UWF 90
Table size | 1270 x 280 mm |
Spindle mount | ISO 40 |
Spindle speed vertical | (8) 115 - 1750 rpm |
Spindle speed horizontal | (12) 40 - 1300 rpm |
Quill stroke | 125 mm |
Verfahrweg (x / y / z) | 750 mm * / 230 mm / 300 mm |
Travel (x / y / z) | 35 - 350 mm |
Outreach | 170 - 750 mm |
Table swivelling | -45° bis +45° |

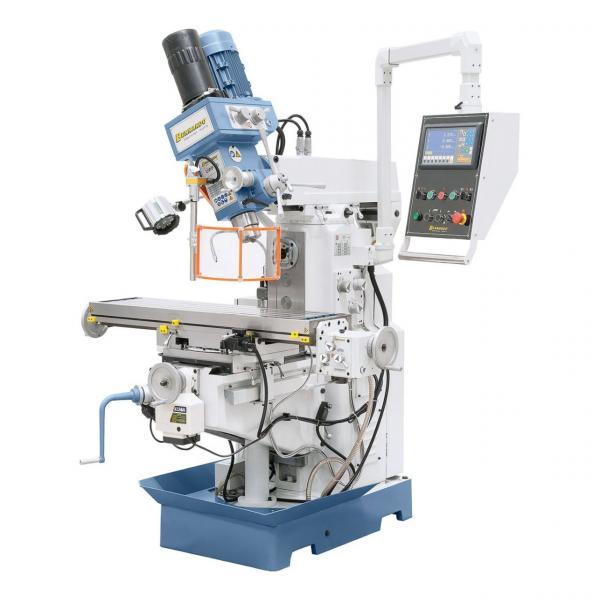

Spindle head swivel range | -90° bis +90° |
Longitudinal feed range | (8) 32 - 700 mm/min |
Rapid traverse z-axis | 660 mm/min |
T-slot size | 14 mm |
Engine power vertical | 0,85 / 1,5 kW |
Engine power horizontal | 2,2 kW |
Machine dimension (W x D x H) | 1750 x 1500 x 2200 mm |
Weight ca. | 1300 kg |
