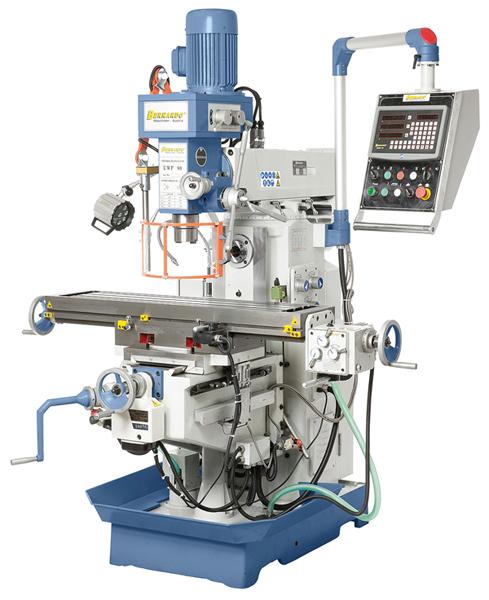

Bernardo Universal Milling Machine UWF 90

• Automatic table feed in x- and y-axis and rapid traverse function as standard.
• Large-dimensioned cross table with T-slots, precisely surface-machined
• Heavy cast-iron machine column for vibration-free operation
• Dovetail guide with adjustable gibs in all 3 axes
• Positioning motor for z-axis included in delivery
• Wide speed and feed range
• Optimally suited for individual and small series production
• High concentricity due to taper roller bearings
• Right-left running device for thread cutting

Scope of delivery Bernardo Universal Milling Machine UWF 90

• 3-axis position indicator
• M 16 tightening spindle
• LED machine light
• Coolant device
• Automatic table feed in x- and y-axis
• Positioning motor in z-axis
• Adapter ISO 40/B 18, ISO 40/MK 3, ISO 40/MK 2
• Long milling arbor 27 mm
• Horizontal counter bearing
• Adjustable guard
• Protective cover for horizontal milling
• Operating tool

Available optional accessories Bernardo Universal Milling Machine UWF 90

• Face and boring head set diam. 75 mm with adapter MK 4, incl. boring bars (Art.No.:25-1020)
• Shank for facing and boring head ISO 40 (Art.No.:25-1011)
• Cutter collet chuck set ER 40, ISO 40, 3-25 mm, 16 pcs. (Art.No.:26-1011)
• Adapter ISO 40 / MK 2 (Art.No.:26-1067)
• Adapter ISO 40 / MK 3 (Art.No.:26-1068)
• Adapter ISO 40 / MK 4 (Art.No.:26-1069)
• Horizontal and vertical rotary table HV 10 - 250 mm (Art.No.:27-1002)
• Semi-universal dividing head BS-1 (Art.No.:27-1046)
• Clamping tool assortment 58 pcs, 14 mm, M 12 (Art.No.:28-1001)
• Wide clamping machine vice FJ 125 (Art.No.:28-2086)
• Hydr. machine vice VH 125 with rotary table (Art.No.:28-2089)
• Parallel pad set 28 pcs. (Art.No.:35-1020)
• Cone drill cassette set B, MK 2 / 3, 14.5 - 30 mm, 9 pcs. (Art.No.:41-1051)
• Set of end mills HSS TiN-coated, 6 - 25 mm, 10 pcs (Art.No.:42-1016)
• Set of end mills TiN-coated, 3 - 20 mm, 20-pcs. (Art.No.:42-1020)
• Face milling cutter 75° - diam. 80 mm / B 27 mm (Art.No.:42-1085)
• Combination arbor ISO 40 / 27 mm (Art.No.:26-1058)
• Frequency converter for stepless z-axis feed (Art.No.:53-1020)
• Machine shoe NE 120 (Art.No.:53-2011)
• Universal coolant concentrate RK 12, in 5 l canister (Art.No.:54-1206)

Technical data Bernardo Universal Milling Machine UWF 90
