Bernardo Universal Milling Machine UWF 80 E Vario

• Variable speed adjustment (vertical spindle) by delta frequency converter with optimum torque curve
• Fast table adjustment in x- and y-axis by automatic table feed with rapid traverse
• Versatile application possibilities such as: Slot milling, face milling, spindling out
• Extended range of applications due to the swivelling milling table from -45° to +45
• Increased productivity due to standard position display in all 3 axes
• High concentricity (≤ 0.015 mm) of the spindle sleeve due to precision bearings

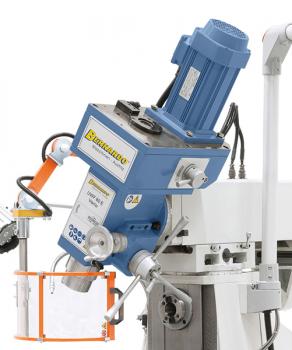

• Milling head can be swivelled on both sides for angle drilling, milling chamfers, etc.
• Quiet and powerful drive motor with frequency converter
• Large-dimensioned (1000 x 240 mm) cross table with T-slots

Scope of delivery Bernardo Universal Milling Machine UWF 80 E Vario​

• 3-axis position indicator
• M 16 tightening spindle
• LED machine light
• Coolant device
• Frequency converter
• Automatic milling table feed for x-axis:
• Automatic milling table feed for y-axis
• Adapter ISO 40/MK 3
• Adapter ISO 40/MK 2
• Adapter ISO 40/B 18
• Long milling arbor ISO40 / 27 mm
• Adjustable guard
• Protective cover for horizontal milling
• Horizontal counter bearing

Available special accessories Bernardo Universal Milling Machine UWF 80 E Vario​

• Facing and boring head set diam. 75 mm with adapter MK 4, incl. boring bars (Art. No.: 25-1020)
• Shank for facing and boring head ISO 40 (Art. No.: 25-1011)
• Cutter collet chuck set ER 40, ISO 40, 3 - 25 mm, 16 pcs. (art. no.: 26-1011)
• Adapter ISO 40 / MK 2 (Art. No.: 26-1067)
• Adapter ISO 40 / MK 3 (Art. No.: 26-1068)
• Adapter ISO 40 / MK 4 (Art. No.: 26-1069)
• Horizontal and vertical rotary table HV 8 - 200 mm (Art. No. 27-1001)
• Semi-universal dividing head BS-1 (Art. No.: 27-1046)
• Clamping tool assortment 58 pcs., 14 mm, M 12 (Art. No.: 28-1001)
• Wide clamping machine vice FJ 125 (Art. No.: 28-2086)
• Hydraulic machine vice VH 125 with rotary table (Art. No.: 28-2089)
• Edge finder diam. 10 mm / 10 mm (Art. No.: 32-1065)
• Parallel pad set 28 pcs. (art. no.: 35-1020)
• Twist drills HSS with Morse taper MK 2 / 3, 9-pcs., 14.5 - 30 mm, Tin-coated, set B (Art. No.: 41-1051)
• Set of shank roughing cutters HSS TIN-coated, 6 - 25 mm, 10-pcs. (art. no.: 42-1016)
• Set of end mills TIN-coated, 3 - 20 mm, 20-pcs (Art. No.: 42-1020)
• Face milling cutter 75° - diam. 80 mm / B 27 mm (Art. No.: 42-1085)
• Combination arbor ISO 40 / 27 mm (Art. No.: 26-1058)
• Machine shoe NE 120 (Art. No.: 53-2011)
• Universal coolant concentrate RK 12, 5 litre canister (Art. No.: 54-1206)

Technical data Bernardo Universal Milling Machine UWF 80 E Vario​
