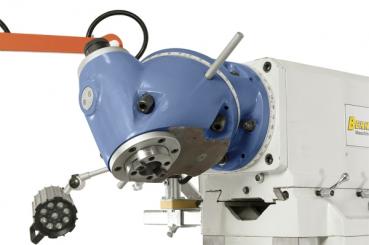

Bernardo Universal Milling Machine UWF 130

• Swivelling control panel with ergonomically positioned switches
• High running smoothness due to ground gear wheels running in an oil bath
• Horizontal spindle for extended application range
• Heavy cast-iron machine stand for vibration-free operation
• Large-dimensioned cross table with T-slots, precisely surface-machined
• Equipped as standard with 3-axis position indicator
• Increased stability due to rectangular guide in y- and z-axis
• x-axis adjustment of the table is at the front side
• Automatic table feed as standard in all 3-axes with rapid traverse function

Scope of delivery Bernardo Universal Milling Machine UWF 130​

• 3-axis position indicator
• M 16 tightening spindle
• LED machine light
• Coolant device
• Feed for x-, y- and z-axis
• Horizontal counter bearing
• Long milling arbor ISO 40/27 mm, ISO 40/40 mm
• Combination arbor ISO 40/32 mm
• Central lubrication for x- and y-axis
• Coolant tank
• Universal safety guard
• Protective cover for horizontal milling
• Operating tool

Available special accessories​ Bernardo Universal Milling Machine UWF 130​

• Face and boring head set diam. 75 mm with receptacle MK 4, incl. boring bars (Art.No.:25-1020)
• Cutter collet chuck set ER 40, ISO 40, 3-25 mm, 16 pcs. (Art.No.:26-1011)
• Adapter ISO 40 / MK 2 (Art.No.:26-1067)
• Adapter ISO 40 / MK 3 (Art.No.:26-1068)
• Adapter ISO 40 / MK 4 (Art.No.:26-1069)
• Horizontal and vertical rotary table HV 10 - 250 mm (Art.No.:27-1002)
• Semi-universal dividing head BS-1 (Art.No.:27-1046)
• Clamping tool assortment 58 pcs, 14 mm, M 12 (Art.No.:28-1001)
• Wide clamping machine vice FJ 150 (Art.No.:28-2087)
• Hydr. machine vice VH 150 with turntable (Art.No.:28-2090)
• High pressure machine vice with turntable PHV 160 (Art.No.:28-2121)
• Parallel pad set 28 pcs. (Art.No.:35-1020)
• Twist drills HSS with Morse taper MK 2 / 3, 9-pcs. - 14,5 - 30 mm, TiN-coated, set B (Art.No.:41-1051)
• Set of shank roughing cutters HSS TiN 6 - 25 mm, 10 pcs. (Art.No.:42-1016)
• Set of end mills TiN-coated, 3 - 20 mm, 20-pcs. (Art.No.:42-1020)
• Face milling cutter 75° - diam. 125 mm / B 40 mm (Art.No.:42-1087)
• Combination arbor ISO 40 / 40 mm (Art.No.:26-1060)
• Frequency converter for stepless z-axis feed (Art.No.:53-1020)
• Machine shoe NE 120 (Art.No.:53-2011)
• Universal coolant concentrate RK 12, in 5 l canister (Art.No.:54-1206)

Technical data Bernardo Universal Milling Machine UWF 130
