Product Highlights Bernardo Universal Milling Machine UWF 110 Servo-1000

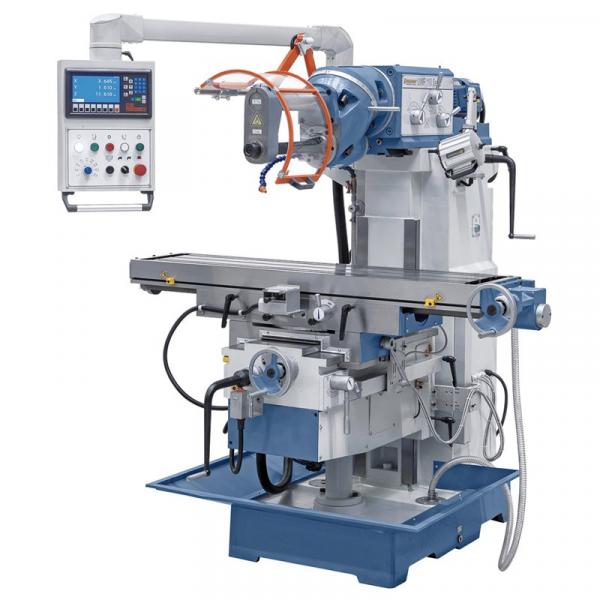

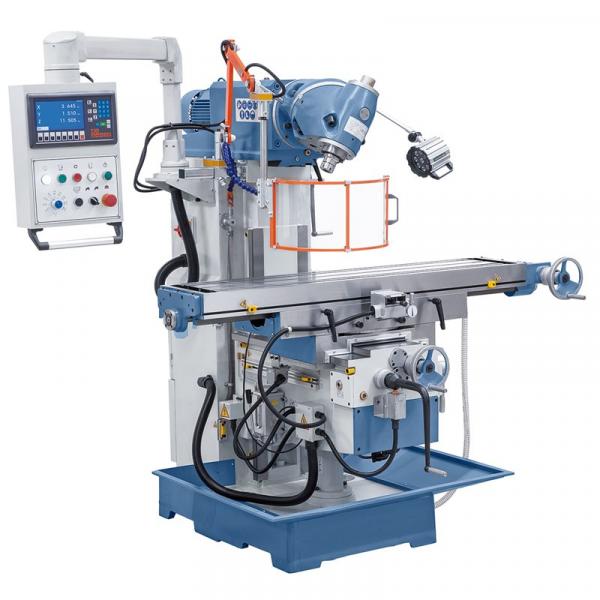

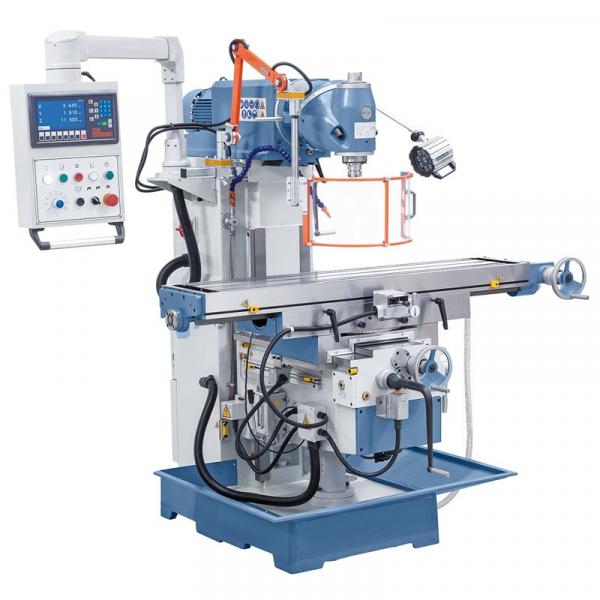

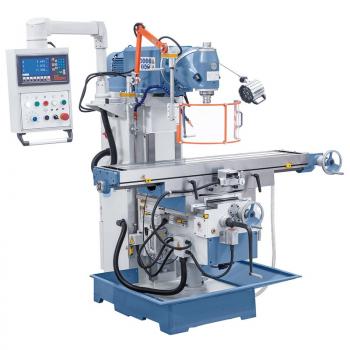

The UWF 110 Servo universal milling machine is suitable for carrying out light and medium-duty milling work. Thanks to its great versatility and easy conversion, it can be used successfully in workshops for machining small and medium-sized series. Special features of this machine are the tilting worktable, the flat guide in y- and z-axis and the servo drive for feeds and rapid traverse in all axes.
- Large-dimensioned rectangular guide in y- and z-axis ensure increased stability
- 8 automatic feeds and rapid traverse in all axes, driven by servo motor
- Universal milling head system "Huron", adjustable to all angular positions
- Swivelling control panel with ergonomically positioned switches
- Heavy cast iron machine stand for vibration-free operation
- Smooth running due to ground gearwheels running in an oil bath
- Upper arm with clearly arranged gearbox for spindle speed
- Digital position display for x-, y- and z-axis included in delivery
- Precisely surface-machined cross table with T-slots
Scope of delivery Bernardo Universal Milling Machine UWF 110 Servo-1000
- 3-axis digital display ES-12 H with LCD display
- M16 tightening spindle
- LED machine light
- Feed for x-, y- and z-axis
- Coolant device
- Counter bearing
- Long milling arbor ISO 40 / 27 mm
- Combination arbor ISO 40 / 27 mm
- Coolant trough
- Adjustable guard
- Central lubrication for x-, y- and z-axis
- Operating tool
Technical data Bernardo Universal Milling Machine UWF 110 Servo-1000
|
Table size
|
1370 x 300 mm
|
|
Spindle mount
|
ISO 40 mm
|
|
Spindle speed
|
(11) 45 - 1660 rpm
|
|
Travel lengthwise (x)
|
1000 mm
|
|
Traverse path transverse (y)
|
360 mm
|
|
Vertical travel (z)
|
400 mm
|
|
Distance spindle / table
|
60 - 460 mm
|
|
Outreach
|
95 - 575 mm
|
|
Table swivelling
|
-45° bis + 45°
|
|
Max. Workpiece weight
|
250 kg
|
|
Feed range longitudinal / transverse
|
(8) 30 - 830 mm/min
|
|
Feed range vertical
|
(8) 23 - 625 mm/min
|
|
Rapid traverse x-, y- and z-axis
|
1000 / 1000 / 750 mm/min
|
|
T-slots (number / width / spacing)
|
3 / 14 mm / 80 mm
|
|
Main engine
|
3,0 kW
|
|
Servo motor (torque / power)
|
10 Nm / 1,5 kW
|
|
Coolant pump power
|
60 W
|
|
Coolant pump Delivery rate
|
12 l/min
|
|
Machine dimension (W x D x H)
|
1740 x 1860 x 1900 mm
|
|
Weight approx.
|
1505 kg
|
