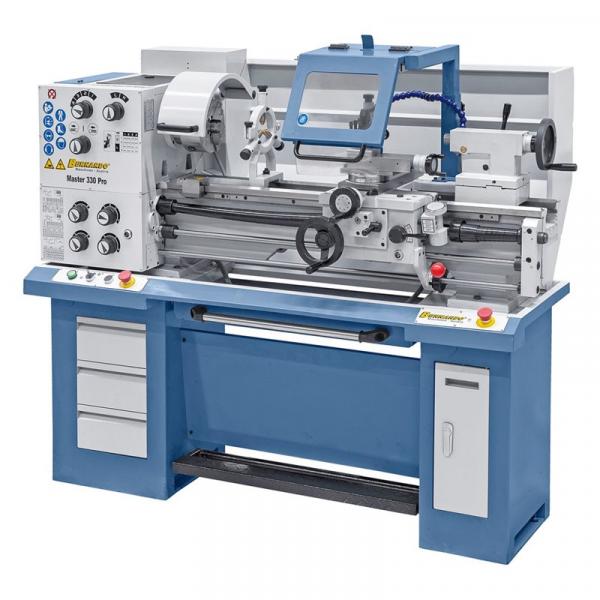

Product Highlights Bernardo Universal Lathe Master 330 Pro
The Master 330 Pro universal lathe is suitable for light and medium-duty turning work. Even the basic equipment includes all important accessories (3-jaw chuck, steady rests, change gears, ...) which makes this machine universally applicable. To reduce production times, this model is also available with a 3-axis digital display.
- To minimise the effects of vibration, the solid prismatic bed is additionally provided with ribs
- Standard 38 mm spindle bore for machining large shaft diameters
- Optimally suited for machining steel, non-ferrous materials and plastics
- Space-saving installation option due to chip tray that can be pulled out to the front

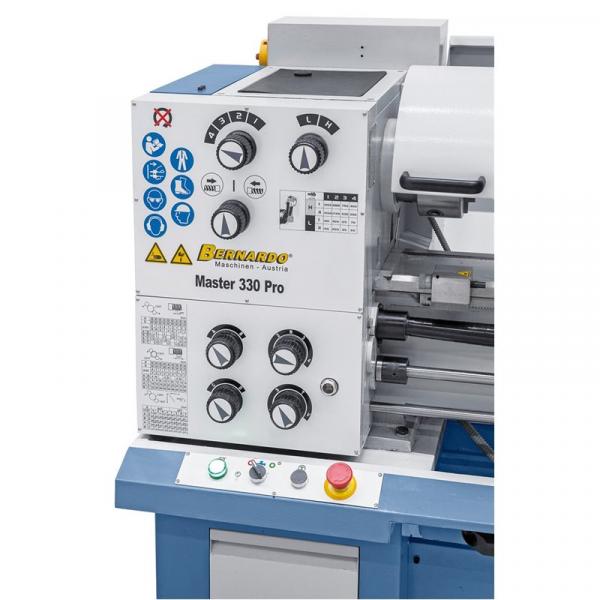

- The speed and feed adjustment is simply designed, smooth-running and precisely switchable
- Electromechanical foot brake to reduce idle times
- Modern main spindle bearing with angular contact ball bearing in precision design
- Prismatic bed made of grey cast iron, inductively hardened and precision ground
- Guaranteed concentricity of the spindle nose (≤ 0.009 mm)
- Main spindle hardened and ground, running in oil bath
- Tailstock, headstock and all guides adjustable

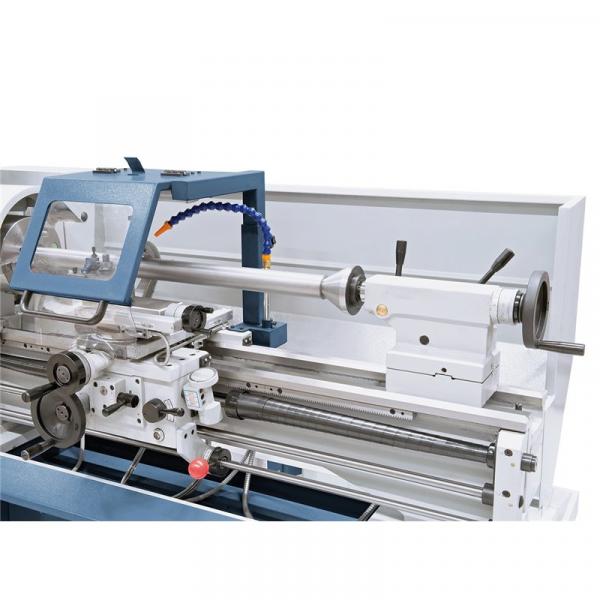

- Tailstock can be shifted ± 5 mm for taper turning
Scope of delivery Bernardo universal lathe Master 330 Pro

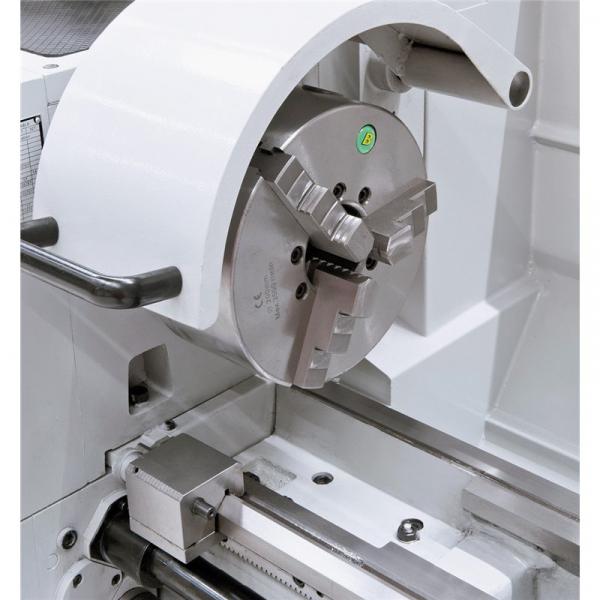

- 3-jaw chuck DK11-160 mm / D4
- Fixed steady rest - passage diam. max. 50 mm
- Travelling steady rest - passage diam. max. 30 mm
- Coolant device
- Pull-out chip tray
- Clamping disc 250 mm
- Quadruple toolholder
- Protective device for fourfold toolholder
- Slipping clutch
- Micrometer longitudinal stop
- Threaded clock

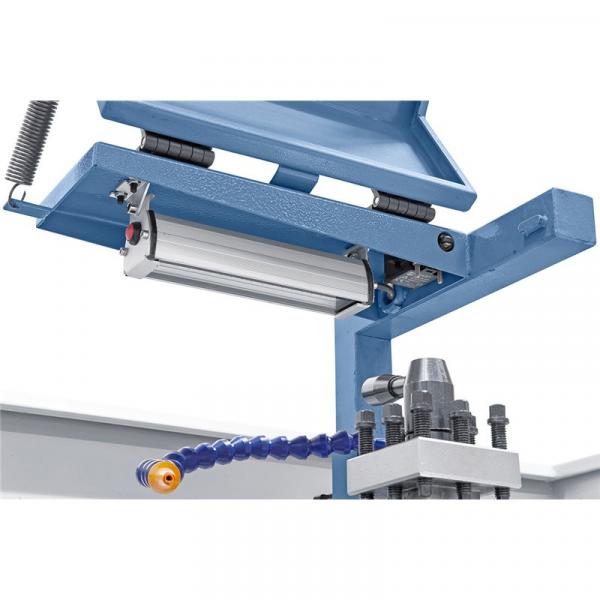

- LED machine light
- Reducing sleeve
- Change gears
- 2 centring points
- Foot pedal with brake function according to CE
- Motor with magnetic brake according to CE standard
- Underframe
- Operating tool
Technical data Bernardo universal lathe Master 330 Pro
|
Peak width
|
830 mm
|
|
Centre height
|
165 mm
|
|
Swing diameter over bed
|
330 mm
|
|
Swing diameter over cross slide
|
210 mm
|
|
Bed width
|
185 mm
|
|
Spindle bore
|
38 mm
|
|
Spindle mount
|
DIN 55029, D1-4
|
|
Speed range
|
(16) 60 - 2000 rpm
|
|
Longitudinal feed range
|
(32) 0.052 - 1.392 mm/rev
|
|
Area Plan Advances
|
(32) 0.014 - 0.380 mm/rev
|
|
Metric threads
|
(26) 0,4 - 7,0 mm
|
|
Inch thread
|
(34) 4 - 56 Gg/1“
|
|
Pinole diameter
|
32 mm
|
|
Pinole path
|
100 mm
|
|
Spindle sleeve holder
|
MK 3
|
|
Motor output power S1 100%
|
1,5 kW (400 V)
|
|
Motor input power S6 40%
|
2,2 kW (400 V)
|
|
Machine dimension (W x D x H)
|
1825 x 750 x 1600 mm
|
|
Weight approx.
|
545 kg
|
