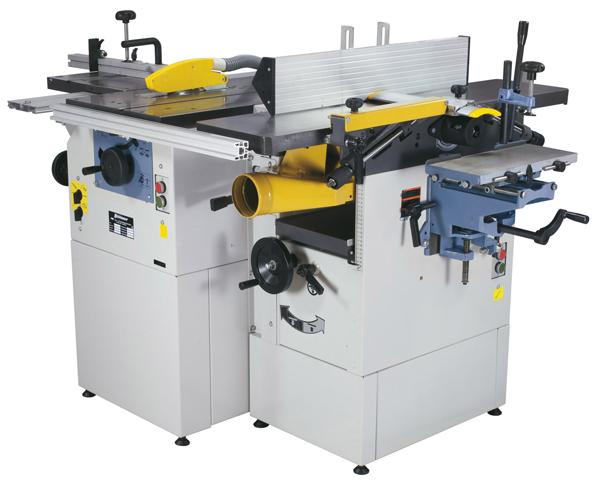

Properties Bernardo Universal Combi CWM 250 Top - 400 V
- Solid grey, cast-iron table eliminates vibrations, precisely manufactured and polished
- Optional with mortising unit (16 mm capacity) available
- Ergonomically arranged handwheels allow for setting of saw unit
- Equipped with roller table featuring aluminium fence to increase user comfort
- Emergency stop button on front of machine guarantees high level of safety
- Integrated, tiltable dust hood when thicknessing, extraction outlet 100 mm
- Perfectly suitable for accurate processing of panels, boards, planks etc.
- Dynamically balanced moulder spindle ensures vibration-free run

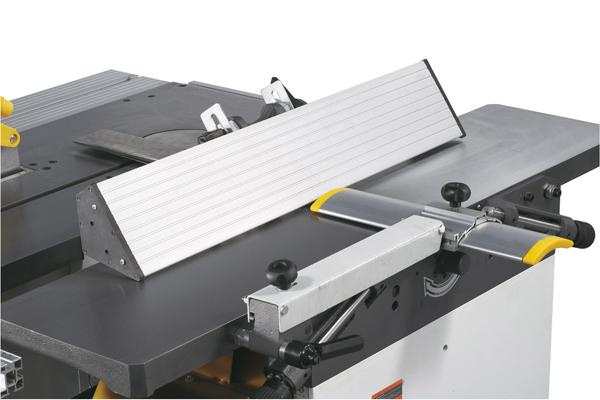

- Torsion-free planer table made of reinforced grey cast-iron
- Workpiece feed can be switched off when planning
Standard accessories Bernardo Universal Combi CWM 250 Top - 400 V:
- Cutter knives 250 x 30 x 3 mm
- Planer fence
- Downholder
- Mitre fence
- Roller table
- Moulding fence
- Protective cover with dust extraction outlet
- Connector tube with Y-piece
- Aluminium fence with stop
- Sawblade 254 x 3,0 x 30 mm / 36T
- Push stick
- Tools
Technical specifications Bernardo Universal Combi CWM 250 Top - 400 V:
|
Planer |
|
|
Planing width |
250 mm |
|
Table length |
1090 mm |
|
Table height |
860 mm |
|
Shaft rotation speed |
4000 rpm |
|
Cutter knives |
3 pcs. |
|
Planer shaft diameter |
75 mm |
|
Planer fence |
715 x 130 mm |
|
Fence tiltable |
90° to 45° |
|
Max. cutting depth |
3 mm |
|
Motor power output S1 100% |
1,5 kW (2,0 HP) |
|
Motor power input S6 40% |
2,1 kW (2,8 HP) |
|
Thicknesser |
|
|
Table length |
600 mm |
|
Working width |
245 mm |
|
Working thickness min./max. |
5 - 195 mm |
|
Max. cutting depth |
2,5 mm |
|
Feed speed |
8 m/min |
|
Dust extraction outlet |
100 mm |
|
Mortising unit (optional available) |
|
|
Table size |
365 x 145 mm |
|
Westcott drill chuck |
0 - 16 mm |
|
Max. drill depth |
95 mm |
|
Drill width |
140 mm |
|
Height adjustment |
75 mm |
|
Circular saw |
|
|
Table size |
980 x 470 mm |
|
Table height |
860 mm |
|
Roller table |
400 x 250 mm |
|
Cutting length |
730 mm |
|
Max. sawblade diameter |
250 x 30 mm |
|
Max. cutting height 90° / 45° |
75 / 60 mm |
|
Cutting width on rip fence |
510 mm |
|
Speed main sawblade |
4750 rpm |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
2,2 kW (3,0 HP) |
|
Motor power input S6 40% |
3,0 kW (4,0 HP) |
|
Spindle moulder |
|
|
Spindle diameter |
30 mm |
|
Height adjustment |
100 mm |
|
Table opening |
145 mm |
|
Working length of spindle |
70 mm |
|
Max. tool diameter |
|
|
- at profiling |
140 mm |
|
- at tenoning |
140 mm |
|
Spindle speed |
6500 rpm |
|
Motor power output S1 100% |
1,4 kW (1,9 HP) |
|
Motor power input S6 40% |
2,0 kW (2,7 HP) |
|
Voltage |
400 V |
|
Machine dimension (W x D x H) |
1820 x 1330 x 1120 mm |
|
Weight approx. |
310 kg |
