Properties Bernardo Universal Combi CF 310 F - 2600
- Powerful drive motors guarantee optimal results even at continuous operation
- Square table with roller for convenient handling of oversize workpieces
- All aluminium parts (sliding table, fences,...) are anodized
- Moulding fence features aluminium fence rails on both sides incl. fine adjustment
- Large, grey cast-iron moulder unit, tilts from 0° to -45°
- Extractable telescopic fence with end stop and fine adjustment
- Milling spindle speed on digital display allows for quick and easy readout
- Solid planer fence with prism guide, tiltable from 90º to 45º
- Maintenance-free 4-knife cutterblock with planer knives in HSS – 18 % quality
- Solid moulding fence with dust extraction outlet 100 mm
- Dynamically balanced milling spindle ensures precise running
Standard accessories Bernardo Universal Combi CF 310 F - 2600:
- Cutter knives 310 x 30 x 3 mm
- Thicknesser table extension with roll
- Mortising unit
- Westcott drill chuck 0 – 16 mm
- Eccentric holder
- Carbide sawblade 315 x 3,0 x 30 mm / 40T
- Scoring sawblade 90 x 3,0 x 20 mm / 12T
- Protective cover with dust extraction outlet and tube
- Mitre fence with eccentric holder
- End stop
- Table extension
- Telescopic fence with stop
- Square table with roll
- Moulding fence
- Spindle with left and right turning
- Digital speed indication of moulding spindle
- Push handle
- 2 pcs. push stick
- Tools
Technical specifications Bernardo Universal Combi CF 310 F - 2600:
|
Planer |
|
|
Planer width |
310 mm |
|
Table length |
1600 mm |
|
Table height |
950 mm |
|
Shaft rotation speed |
4100 rpm |
|
Cutter knives |
4 pcs. |
|
Planer shaft diameter |
95 mm |
|
Planer fence |
1100 x 150 mm |
|
Fence tiltable |
90° bis 45° |
|
Max. cutting depth |
5 mm |
|
Motor power output S1 100% |
2,2 kW (3,0 HP) |
|
Motor power input S6 40% |
3,0 kW (4,0 HP) |
|

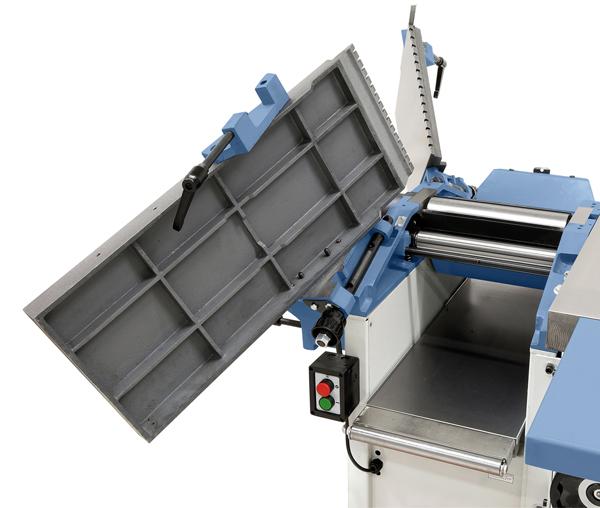

Thicknesser |
|
|
Table length |
750 / 930* mm |
|
Working width |
305 mm |
|
Working thickness, min/max. |
5 - 230 mm |
|
Max. cutting depth |
5 mm |
|
Feed speed |
6 m/min |
|
Dust extraction outlet |
100 mm |
|
Mortising unit |
|
|
Table size |
450 x 190 mm |
|
Westcott drill chuck |
0 - 16 mm |
|
Max. drill depth |
125 mm |
|
Drill width |
175 mm |
|
Height adjustment |
115 mm |
|
Circular saw |
|
|
Table size |
1300 x 380 mm |
|
Table height |
950 mm |
|
Table extension |
310 x 350 mm |
|
Square table with roll |
880 x 580 mm |
|
Sliding table |
2600 x 270 mm |
|
Cutting length |
2600 mm |
|
Max. sawblade diameter |
315 x 30 mm |
|
Max. cutting height 90° / 45° |
100 / 80 mm |
|
Cutting width on rip fence |
630 mm |
|
Speed main sawblade |
4500 rpm |
|
Speed scoring sawblade |
8500 rpm |
|
Scoring sawbalde |
90 x 20 mm |
|
Dust extraction outlet |
95 mm |
|
Motor power output S1 100% |
3,0 kW (4,0 HP) |
|
Motor power input S6 40% |
4,2 kW (5,7 HP) |
|
Spindle moulder |
|
|
Spindle diameter |
30 mm |
|
Height adjustment |
125 mm |
|
Spindle tiltable |
0° to -45° |
|
Table opening |
80 / 110 / 150 / 200 mm |
|
Working length of spindle |
110 mm |
|
Max. tool diameter |
180 mm |
|
Spindle speed |
1800 / 3000 / 6000 / 9000 rpm |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
2,8 kW (3,8 HP) |
|
Motor power input S6 40% |
3,9 kW (5,3 HP) |
|
Voltage |
400 V |
|
Machine dimension (W x D x H) |
2600 x 2700 x 1280 mm |
|
Weight approx. |
675 kg |
* with thicknesser table extension
