Bernardo Turning machine DM 450
Features Bernardo Turning machine DM 450
- Ideal for craftsmen with high demands

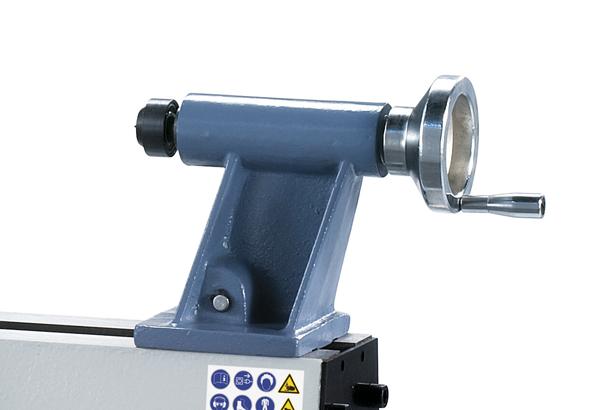

- Robust tailstock with MT 2 taper and quick clamping lever
- Solid construction eliminates vibrations
- Clearly arranged switches and control elements on the front of machine
- Tool rest 150 mm and face plate 75 mm are part of standard equipment
- Extensive range of extra equipment to widen the choice of applications
- Quick clamping lever allows for easy locking of tool rest
Standard accessories Bernardo Turning machine DM 450:
- Tool rest 150 mm
- Face plate 75 mm
- Spore drive center
- Live center
- Tools
Technical specifications Bernardo Turning machine DM 450:
|
Distance between centers |
420 mm |
|
Distance between centers with extension * |
980 mm |
|
Working diameter |
|
|
- over guideway |
260 mm |
|
- over support |
190 mm |
|
Spindle speeds |
500 - 3200 rpm |
|
Speed steps |
5 |
|
Spindle thread |
M33 x 3,5 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Travel of tailstock sleeve |
50 mm |
|
Motor power output S1 100% |
0,44 kW (0,6 HP) |
|
Motor power input S6 40% |
0,55 kW (0,75 HP) |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
780 x 260 x 380 mm |
|
Weight approx. |
33 kg |
* optional
