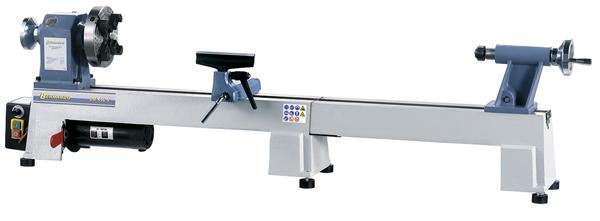

Bernardo Turning machine DM 450 V
Properties Bernardo Turning machine DM 450 V
- Ideal for craftsmen with high demands
- Comes complete with stepless speed adjustment
- Robust tailstock with MT 2 taper and quick clamping lever
- Solid construction eliminates vibrations
- Clearly arranged switches and control elements on the front of machine
- Tool rest 150 mm and face plate 75 mm are part of standard equipment
- Extensive range of extra equipment to widen the choice of applications
- Quick clamping lever allows for easy locking of tool rest
Standard accessories Bernardo Turning machine DM 450 V:
- Tool rest 150 mm
- Face plate 75 mm
- Spore drive center
- Live center
- Stepless speed adjustment
- Tools
Technical specifications Bernardo Turning machine DM 450 V:
|
Distance between centers |
420 mm |
|
Distance between centers with extension * |
980 mm |
|
Working diameter |
|
|
- over guideway |
260 mm |
|
- over support |
190 mm |
|
Spindle speed |
L: 650 - 1450 rpm |
|
Spindle thread |
M33 x 3,5 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Travel of tailstock sleeve |
50 mm |
|
Motor power output S1 100% |
0,37 kW (0,5 HP) |
|
Motor power input S6 40% |
0,50 kW (0,68 HP) |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
820 x 260 x 380 mm |
|
Weight approx. |
34 kg |
* optional
