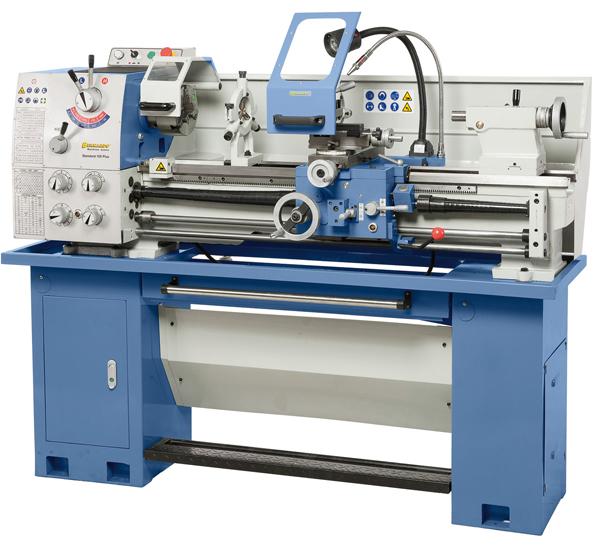

The Standard 165 Plus turning lathe is an enhanced version of the reliable 150- models. The feed drive was given an overhaul in terms of user-friendliness and the gear head design received a state of the art look. This model is best suitable for ambitious amateurs who enjoy a broad range of standard accessories, making this machine optimal with regards to price and benefit.
Features Bernardo turning lathe maschine Standard 165 Plus
- Wide range of applications include: training workshops, tool construction, repair shops etc.
- Prism-shaped grey cast-iron machine bed, induction hardened and precisely polished
- Speed and feed change features clear arrangement, accurate control and smooth operation
- Practical lathe with leadscrew and feed rod for thread cutting and automatic feed
- Single lever clamping on tailstock, adjustable for taper turning
- Removable bridge allows processing of workpieces with large diameter
- Spindle bearing features 2 adjustable precision bearings
- Hardened and polished gear wheels and shafts
- Extractable chip tray reduces space requirements
- Electro-mechanic foot brake clearly reduces downtime
Standard accessories Bernardo turning lathe maschine Standard 165 Plus
- 3-jaw chuck DK11-160 mm / D4
- Independent chuck 200 mm / D4, according DIN 55029
- Steady rest – Passage up to 60 mm
- Follow rest – Passage up to 60 mm
- Face plate 250 mm
- 4-way tool post holder
- Protective device at
- 4-way tool post holder
- Spindle spider
- Safety clutch
- Micrometer longitudinal fence
- Coolant device
- Extractable chip tray
- Motor with magnet brake according CE
- Foot pedal with brake function according CE
- Splash guard
- Thread dial
- LED machine light
- Morse taper drill sleeve
- Change gears
- 2 dead centers
- Stand
- Tools
Technical specifications Bernardo turning lathe maschine Standard 165 Plus
|
Distance between centers |
1000 mm |
|
Center height |
175 mm |
|
Swing over bed |
350 mm |
|
Swing over gap* |
450 mm |
|
Swing over cross slide |
190 mm |
|
Bed width |
180 mm |
|
Spindle bore |
40 mm |
|
Spindle nose fixture |
DIN 55029, D1-4 |
|
Speed range |
(8) 70 - 2000 rpm |
|
Longitudinal feed |
(40) 0,053 - 1,29 mm/rev. |
|
Cross feed |
(40) 0,013 - 0,31 mm/rev. |
|
Metric thread |
(32) 0,4 - 7 mm |
|
Inch thread |
(36) 4 - 60 threads/1“ |
|
Travel of tailstock sleeve |
110 mm |
|
Taper of tailstock sleeve |
MT 3 |
|
Motor power output S1 100% |
1,5 kW (400 V) |
|
Motor power input S6 40% |
2,2 kW (400 V) |
|
Machine dimension (W x D x H) |
1730 x 700 x 1340 mm |
|
Weight approx. |
495 kg |
Removeable bed length: 220 mm
