The Profi 700 Top is the latest additions to our range of lathes. Both come complete with high-quality Delta frequency inverters, resulting in significant advantages such as high torque in low speed range and the nearly constant speed at heavy workloads.
Properties Bernardo turning lathe maschine Profi 700 Top with 2-axis digital display
- Three -phase motor with frequency inverter for higher performance and high torque
- Complete with 38 mm spindle bore to allow processing of large shaft diameters (Profi 700 Top)
- Stepless speed adjustment as part of standard accessories, set speed can be read on digital display
- Feed settings are logically arranged, easy to control with top accuracy
- Suitable for processing of steel, non-ferrous metals and plastics
- Prism bed with large support surface, inductively hardened and polished
- Precise spindle bearing with two adjustable precision taper roller bearings
- High concentricity of spindle nose – better than 0.009 mm
- Tailstock spindle and handwheel come with adjustable scale (0.02 mm)
Standard accessories Bernardo turning lathe maschine Profi 700 Top with 2-axis digital display
- 2-axis digital readout i200 with LCD-display
- Dead centers

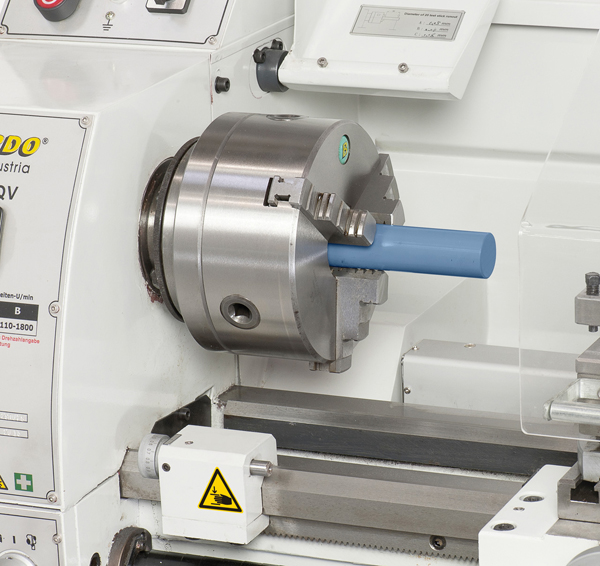

- 3-jaw chuck DK11-160 mm
- Flange 160 mm
- Change gears
- 4-way tool post holder
- Safety clutch
- Micrometer longitudinal fence
- Cross slide with top support
- Frequency inverter
- Digital speed indication
- Thread dial
- Chuck guard
- Splash guard
- Leadscrew cover
- Tools
Technical specifications Bernardo turning lathe maschine Profi 700 Top with 2-axis digital display
|
Distance between centers |
700 mm |
|
Center height |
150 mm |
|
Swing over bed |
300 mm |
|
Bed width |
180 mm |
|
Spindle bore |
38 mm |
|
Taper at spindle bore |
MT 5 |
|
Speed range, stepless |
70 - 380 / 380 -2000 rpm |
|
Longitudinal feed |
(14) 0,07 - 0,65 mm/rev. |
|
Cross feed |
(11) 0,03 - 0,12 mm/rev. |
|
Metric thread |
(18) 0,2 - 3,5 mm |
|
Inch thread |
(21) 8 - 56 threads/1“ |
|
Travel of tailstock sleeve |
85 mm |
|
Taper of tailstock sleeve |
MT 3 |
|
Motor power output S1 100% |
1,1 kW / 230 V |
|
Motor power input S6 40% |
1,5 kW / 230 V |
|
Machine dimension (W x D x H)* |
1380 x 640 x 500 mm |
|
Weight approx. |
235 kg |
without stand
