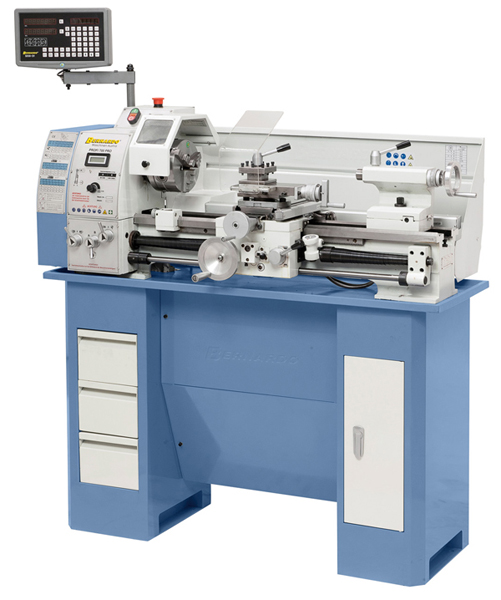

Bernardo turning late maschine Profi 700 Pro - 230 V mit 2-Achs-Digitalanzeige
The Profi 700 Pro turning lathe feature a high speed range up to 3000 rpm as well as a large range of standard accessories (for instance DC-motor with frequency inverter, main spindle bearing in P5-quality, micrometric longitudinal fence for repetitive work, safety clutch etc.) making these models ideal for users with high expectations. For reducing the non-productive time, this model is also equipped with a 2-axis digital readout.
Properties Bernardo turning late maschine Profi 700 Pro - 230 V mit 2-Achs-Digitalanzeige
- Precision 3-jaw steel chuck for speed up to 3000 rpm comes standard
- Serially with Delta frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
- Main spindle bearing with adjustable taper roller bearing in P5-quality
- Tailstock spindle and handwheel come with adjustable scale (0.02 mm)
- Optionally available milling attachment increases range of applications
- High concentricity of the hardened spindle nose ≤ 0,009 mm
- Solid machine bed with inductive hardened and polished guideways
- Top support can be adjusted in x-axis
- Stepless speed adjustment as part of standard accessories, set speed can be read on digital display
Standard accessories Bernardo turning late maschine Profi 700 Pro - 230 V mit 2-Achs-Digitalanzeige
- 3-jaw steel chuck PO3-160 mm
- Flange 160 mm
- Dead centers
- Change gears
- Quick change tool post size 20-2 with 2 straight inserts
- Safety clutch
- Micrometer longitudinal fence
- Cross slide with top support
- Frequency inverter
- Digital speed indication
- Thread dial
- Chuck guard
- Splash guard
- Leadscrew cover
- Tools
Technical specifications Bernardo turning late maschine Profi 700 Pro - 230 V mit 2-Achs-Digitalanzeige
| Distance between centers | 700 mm |
| Center height | 150 mm |
| Swing over bed | 300 mm |
| Bed width | 180 mm |
| Spindle bore | 38 mm |
| Taper at spindle bore | MT 5 |
| Speed range, stepless | 30 - 450 / 150 - 3000 rpm |
| Longitudinal feed | (14) 0,07 - 0,65 mm/rev. |
| Cross feed | (11) 0,03 - 0,12 mm/rev. |
| Metric thread | (18) 0,2 - 3,5 mm |
| Inch thread | (21) 8 - 56 threads/1" |
| Travel of tailstock sleeve | 85 mm |
| Taper of tailstock sleeve | MT 3 |
| Motor power output S1 100% | 1,5 kW / 230 V |
| Motor power input S6 40% | 2,2 kW / 230 V |
| Machine dimension (W x D x H)* | 1380 x 640 x 500 mm |
| Weight approx. | 235 kg |
without stand
