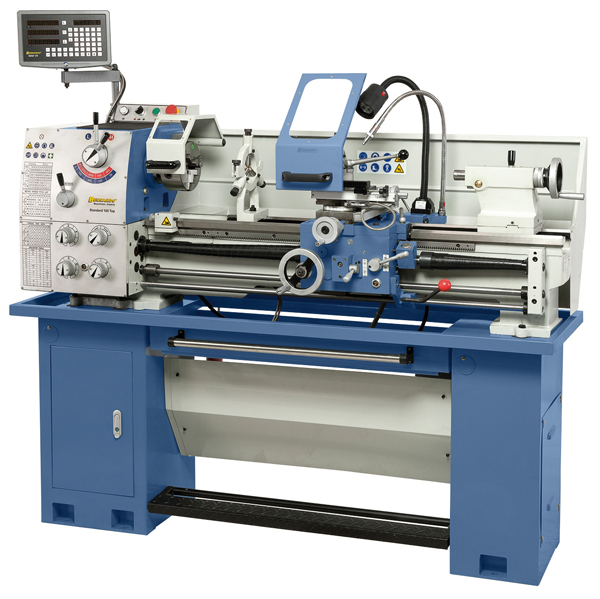

The Standard 165 Top precision lathe feature a solid construction and practicality. Making this model truly versatile is the standard equipment which comprises all major accessories such as 3-axis digital readout, rests, LED-machine lamp and safety precautions in accordance with CE-standards. In addition, this model comes complete with a quick-change tool post holder.
Features Bernardo turning late machine Standard 165 Top
- Entire range of equipment: 3-axis digital readout, LED machine lamp, machine stand and many more
- Practical machine with leadscrew and feed rod for thread cutting and automatic feed
- Removable bridge allows processing of workpieces of large diameter
- Solid prism-shaped machine bed features additional reinforcements to keep vibrations to a minimum
- Clearly arranged speed and feed control settings, smooth operation and accurate control
- Strongly reinforced prism-shaped machine bed features induction hardened and polished guiding
- Hardened and polished main spindle, saturated in oil

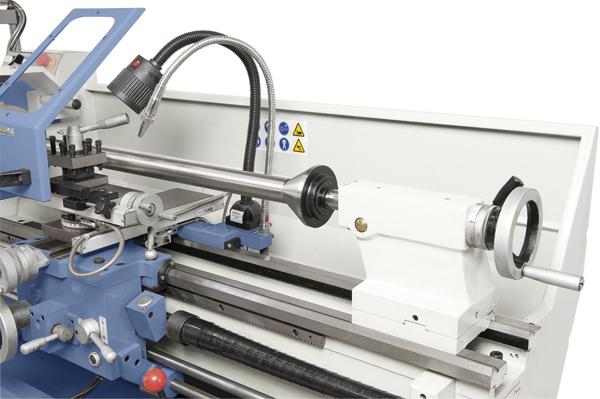

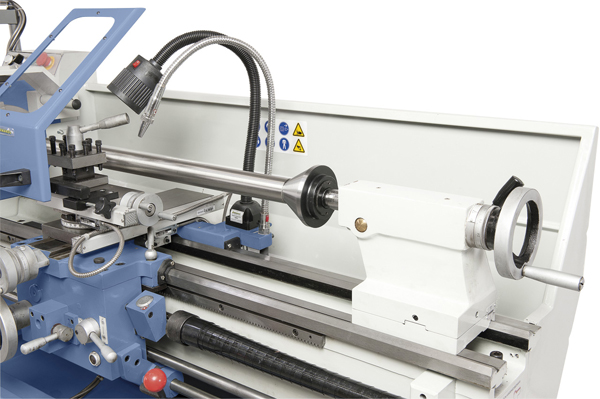

- Removable tailstock for taper turning, handwheel features adjustable fine scale (0.04mm)

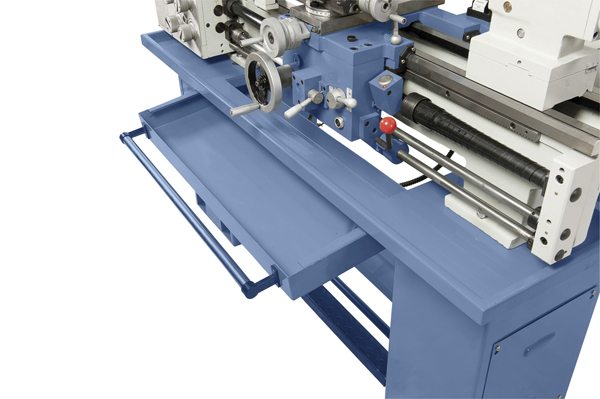

- Extractable chip tray minimizes space requirements
Standard accessories Bernardo turning late machine Standard 165 Top
- 3-axis digital readout i200 with LCD-display
- 3-jaw chuck DK11-160 mm / D4
- Independent chuck 200 mm / D4, according DIN 55029
- Steady rest – Passage up to 60 mm
- Follow rest – Passage up to 60 mm
- Face plate 250 mm
- Spindle spider
- Quick change tool post holder with 4 insters

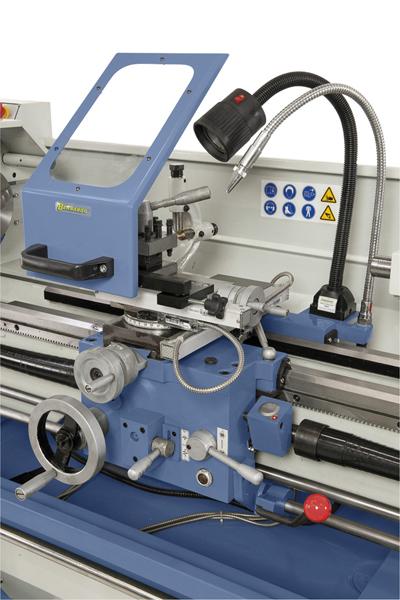

- Protective device at tool holder
- Safety clutch
- Micrometer longitudinal fence
- Coolant device
- Extractable chip tray
- Motor with magnetic brake according CE
- Foot pedal with brake function according CE
- Splash guard
- Thread dial
- LED machine light
- Morse taper drill sleeve
- Change gears
- 2 dead centers
- Stand
- Tools
Technical specifications Bernardo turning late machine Standard 165 Top
|
Distance between centers |
1000 mm |
|
Center height |
175 mm |
|
Swing over bed |
350 mm |
|
Swing over gap* |
450 mm |
|
Swing over cross slide |
190 mm |
|
Bed width |
180 mm |
|
Spindle bore |
40 mm |
|
Spindle nose fixture |
DIN 55029, D1-4 |
|
Speed range |
(8) 70 - 2000 rpm |
|
Longitudinal feed |
(40) 0,053 - 1,29 mm/rev |
|
Cross feed |
(40) 0,013 - 0,31 mm/rev |
|
Metric thread |
(32) 0,4 - 7 mm |
|
Inch thread |
(36) 4 - 60 threads/1“ |
|
Travel of tailstock sleeve |
110 mm |
|
Taper of tailstock sleeve |
MT 3 |
|
Motor power output S1 100% |
1,5 kW (400 V) |
|
Motor power input S6 40% |
2,2 kW (400 V) |
|
Machine dimension (W x D x H) |
1730 x 700 x 1340 mm |
|
Weight approx. |
515 kg |
Removeable bed length: 220 mm
