The Topcut 3200 S precision sliding table saw is ideally suited for professional users. The torsion-resistant machine body made of a steel/cast iron combination as well as the stable saw unit with the powerful drive motor ensure vibration-free running and a consistent cutting speed.
Features Bernardo Topcut 3200 S sliding table saw
- Powerful drive motor (5.5 kW) with high torque, designed for optimum cutting performance

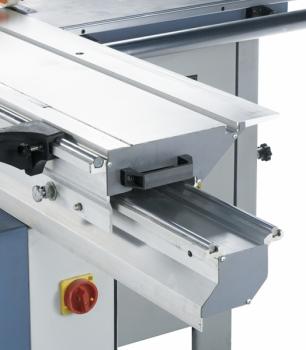

- Smooth-running double roller carriage with centre and end position locking for precise cuts
- Maximum saw blade diameter 400 mm for cutting heights up to 130 mm
- Cantilever table with roller for simplified handling of larger workpieces
- Fold-down rip fence with micrometric fine adjustment (advantage with large panels)
- Separately driven scoring unit as standard (motor power 0.75 kW)
- Sturdy sawing unit with cast iron swivel elements guided on both sides
- Table extension for cutting widths up to 1250 mm included in delivery
- All aluminium parts (format table, fences,...) are anodised
- Extendable telescopic fence (up to 3200 mm) can be mounted at the front and rear of the extension table, infinitely adjustable from 90° to 45°
Scope of delivery Bernardo Topcut 3200 S sliding table saw

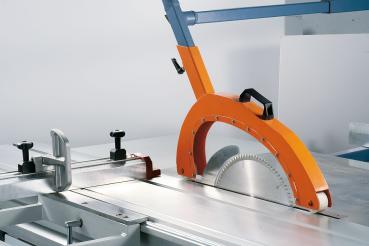

- Saw blade guard with infeed roller
- Trimming shoe
- Table extension
- Extendable telescopic fence
- Longitudinal stop flaps
- Boom table with roller
- Sliding stock
- Scoring unit with independent motor
- Operating tool
Available special accessories Bernardo sliding table saw Topcut 3200 S
- Eccentric clamp (Art.No.:09-1425)
- Pneumatic clamping device (Art.No.:09-1426A)
- HM circular saw blade 400 x 4.0 x 30 mm, Z96 (Art.No.:18-1003)
- Scoring saw blade 120 x 20, Z 24 (Art.No.:18-1004)
- PU spiral suction hose diam. 100 mm (6 m) (Art.No.:12-1077)
- Extraction unit DC 500 E / 400 V (Art.No.:12-2066)
- Automatic switch-on unit ALV 10 / 1M (Art.No.:12-1150)
- Digital protractor Level Box (Art.No.:31-1041)
Technical data Bernardo sliding table saw Topcut 3200 S
Table dimension
|
1080 x 660 mm
|
Format table
|
3200 x 370 mm
|
Trimming length
|
3200 mm
|
Max. Saw blade diameter
|
400 x 30 mm
|
Max. Cutting height 90° / 45°
|
130 mm / 90 mm
|
Cutting width at rip fence
|
1250 mm
|
Table height
|
880 mm
|
Table extension
|
660 x 600 mm
|
Table extension
|
900 x 600 mm
|
Boom table with roller
|
1210 x 540 mm
|
Main saw blade speed
|
3700 / 5300 rpm
|
Speed scoring saw blade
|
8000 rpm
|
Scoring saw blade
|
120 x 20 mm
|
Suction connection Ø
|
100 mm
|
Motor output power S1 100%
|
5.5 kW (7.5 hp)
|
Motor input power S6 40%
|
7.5 kW (10 hp)
|
Scoring motor power
|
0,75 kW
|
Voltage
|
400 V
|
Machine dimension (W x D x H)
|
3200 x 3400 x 1540 mm
|
Weight approx.
|
1000 kg
|
