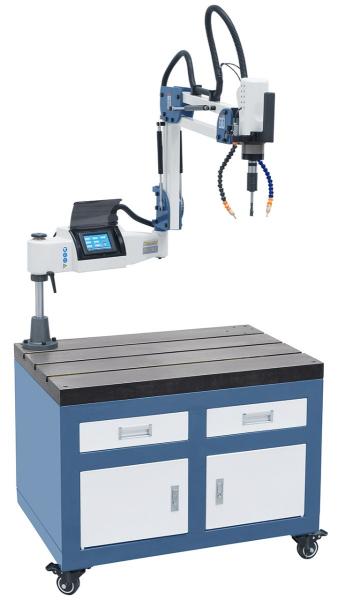

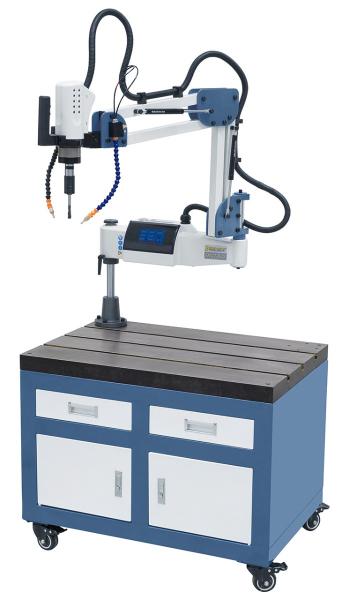

Bernardo TM 12 BLO / R 1500 Electr. threading machine

Product features Bernardo TM 12 BLO / R 1500 Electr. threading machine

• With micro-spray system as standard for constant cooling and minimal cooling lubricant consumption
• Including blow-out device for removing chips, thus optimum view of the drill hole
• Including quick-change chuck for using taps for through and blind holes
• Swivelling motor unit for tapping at any desired angle between 0° and 90
• Higher accuracy compared to manual tapping, thread is guaranteed right-angled (90°)
• High productivity, significant time saving compared to manual tapping
• Quick-change chuck with integrated slip clutch prevents tap breakage

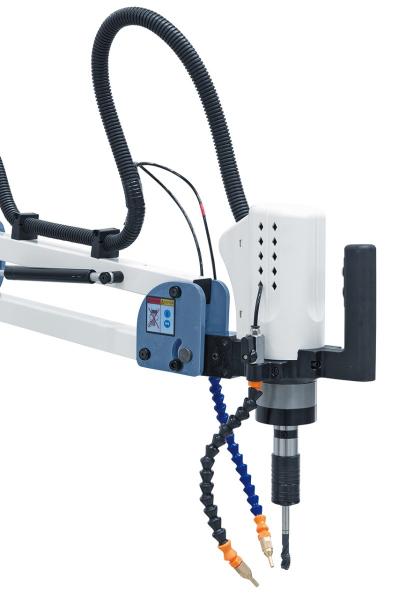

• Including swivel arm with large radius for easy positioning of the tap on the workpiece
• For tapping in steel, stainless steel, aluminium and non-ferrous metals

Scope of delivery Bernardo TM 12 BLO / R 1500 Electr. threading machine

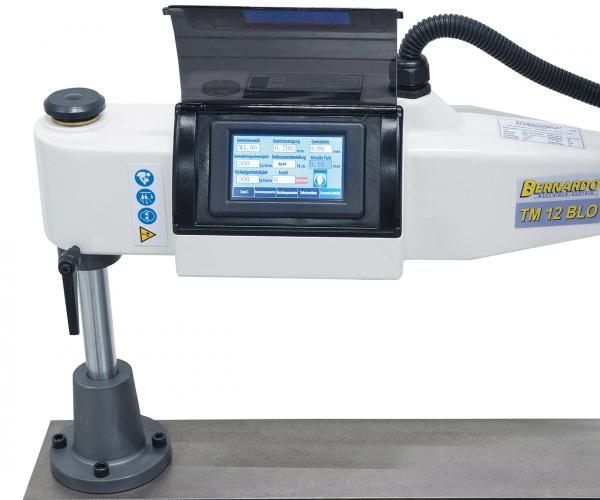

• Operation via touch screen
• Digital drilling depth display
• Micro spray system
• Blow-out device
• Quick-change chuck
• Quick-change chuck according to DIN
• Electric motor
• 90° angle adjustment
• Mounting flange

Technical data Bernardo TM 12 BLO / R 1500 Electr. threading machine
