The Titan 560 turning lathe is specifically designed for quick and economical single part production. The large number of standard equipment makes these models incredibly versatile.
Features Bernardo Titan 560 x 1500 universal lathe with digital display
- Wide range of applications in general machine construction, production, single part manufacturing etc.
- Removeable bridge allows processing of workpieces with big diameter

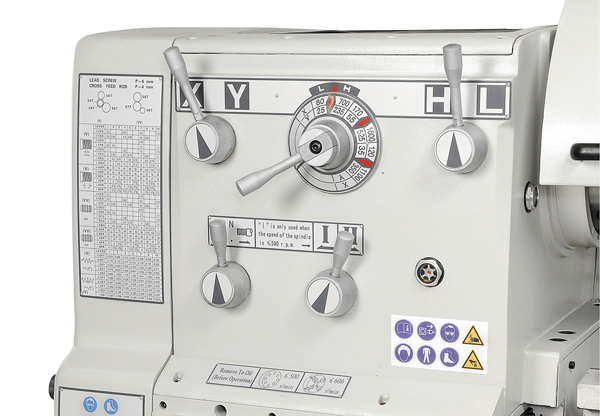

- Logical, clearly designed and easy-to-use speed and feed settings
- Including 4 adjustable cams for automatic shut-down of the apron

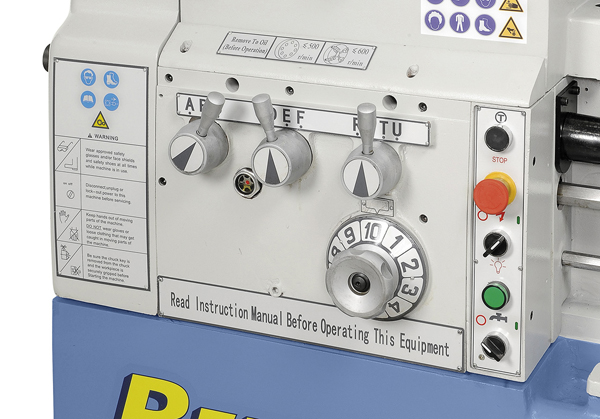

- Centrally located, practical switches for speed and threads with leadscrew and feed rod
- Torsion resistant machine bed - one piece cast - eliminates vibrations, guaranteeing best possible accuracy when turning
- State-of-the-art spindle bedding with high-quality, angular ball bearings
- Adjustable tailstock with fine scale for taper turning
- Central lubrication of apron
Standard accessories Bernardo Titan 560 x 1500 universal lathe with digital display
- 3-axis digital readout ES-12 V with LCD-display
- 3-jaw steel chuck PS3-315 mm / D8
- Face plate 450 mm
- Steady rest - Passage up to max. 180 mm
- Follow rest - Passage up to max. 120 mm
- 2 dead centers
- Initial filling with Shell Tellus 46
- Motor with magnetic brake according to CE
- Foot pedal with brake function according to CE
- Coolant device
- 40 pos. tool post and holder set with 4 inserts
- Protective device at tool post holder
- Safety clutch
- LED machine light
- Change gears
- Morse taper drill sleeve
- Thread dial
- Splash guard
- Tools
Technical specifications Bernardo Titan 560 x 1500 universal lathe with digital display
|
Distance between centers |
1500 mm |
|
Center height |
280 mm |
|
Swing over bed |
560 mm |
|
Swing over gap |
785 mm |
|
Swing over cross slide |
350 mm |
|
Bed width |
350 mm |
|
Spindle bore |
105 mm |
|
Spindle nose fixture |
DIN 55029, D1 - 8 |
|
Speed range |
(12) 25 - 1500 rpm |
|
Longitudinal feed |
(35) 0,059 - 1,646 mm/rev. |
|
Cross feed |
(35) 0,020 - 0,573 mm/rev. |
|
Metric thread |
(47) 0,2 - 14 mm |
|
Inch thread |
(60) 2 - 112 threads/1“ |
|
Diameter of tailstock sleeve |
75 mm |
|
Travel of tailstock sleeve |
180 mm |
|
Taper of tailstock sleeve |
MT 5 |
|
Motor power |
7,5 kW (10,0 HP) |
|
Machine dimension (W x D x H) |
2840 x 1150 x 1460 mm |
|
Weight approx. |
2370 kg |
