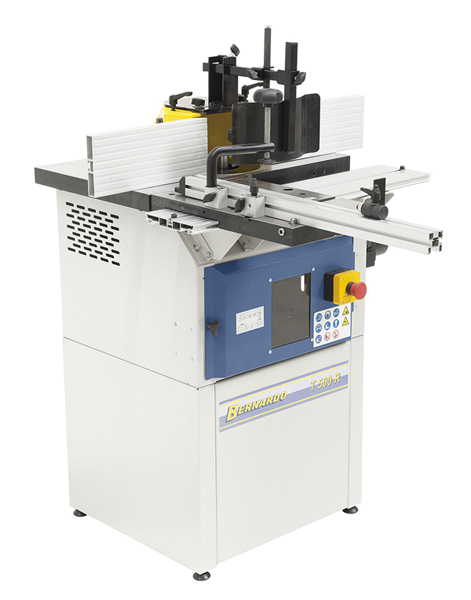

Bernardo Table milling machine with roller table T 500 R - 230 V
Properties Bernardo Table milling machine with roller table T 500 R - 230 V
- Solid moulding fence features finely adjustable aluminium stop bars
- Roller table, as standard, for maximum operating comfort
- Torsion-free, grey cast-iron machine table for maximum accuracy
- Oversize moulding fence with dust extraction outlet 100 mm

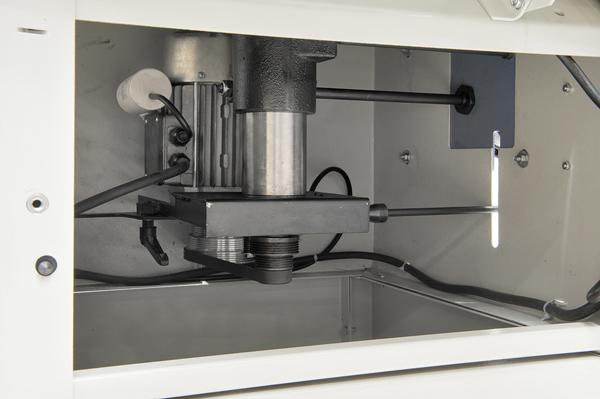

- V-belt allows for fast and convenient speed change
- Ergonomically arranged switches and control elements guarantee high work comfort
- Generous, grey cast-iron construction of moulder unit
Standard accessories Bernardo Table milling machine with roller table T 500 R - 230 V:
- Roller table
- Downholder
- Stop bar
- Protective and pressing device
Technical specifications Bernardo Table milling machine with roller table T 500 R - 230 V:
|
Table size |
600 x 400 mm |
|
Table size roller table |
400 x 250 mm |
|
Working height |
820 mm |
|
Spindle diameter |
30 mm |
|
Height adjustment of spindle |
110 mm |
|
Working length of spindle |
105 mm |
|
Max. tool diameter |
160 mm |
|
Max. tool diameter concealed |
160 mm |
|
Spindle speed |
1400/3790/5670/8650 rpm |
|
Motor power output S1 100% |
1, 5 kW (2,0 HP) |
|
Motor power input S6 40% |
2,1 KW (2,8 HP) |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
1040 x 1070 x 1130 mm |
|
Weight approx. |
99 kg |
