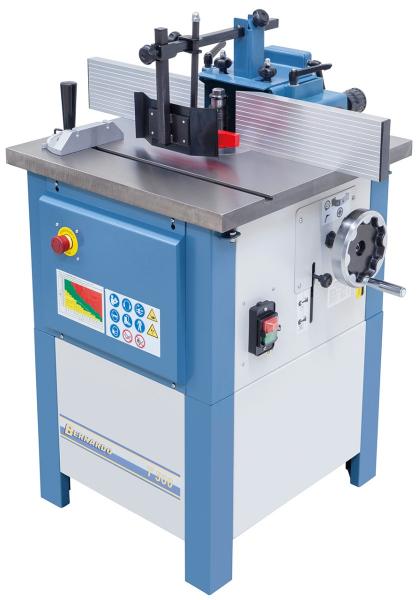

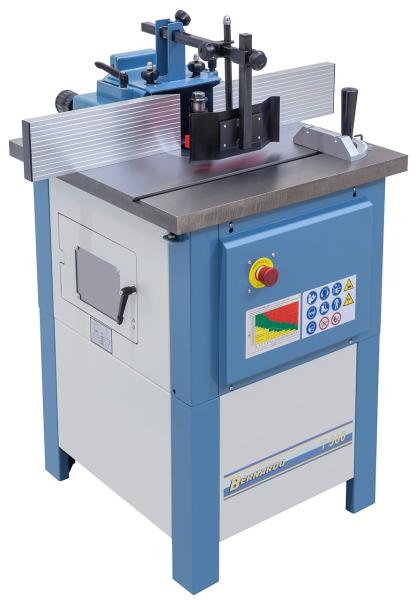

Product features Bernardo table milling machine T500 400V
During the development of the T 500 bench milling machine, great importance was attached to safety and ease of use to ensure good working conditions and optimum ease of operation. The stable construction made of grey cast iron and steel also ensures high production quality and precision in the long term.
- Quick and easy speed change by means of V-belt

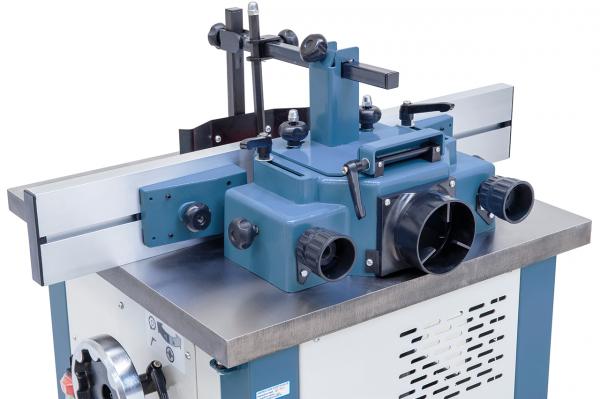

- Cutter guard with finely adjustable aluminium stop rails on both sides
- Machine body consisting of a torsion-resistant steel construction
- Solid router protection bonnet with suction connection 100 mm
- Wide speed range from 1400 - 8650 rpm (4 steps)
- Large dimensioned milling unit made of grey cast iron
- Dynamically balanced milling spindle for precise running
Scope of delivery Bernardo table milling machine T500 400V
- Mitre fence

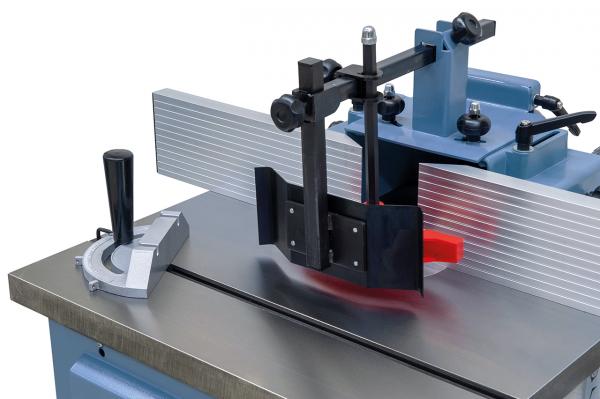

- Protection and pressure device
Technical data Bernardo table milling machine T500 400V
|
Table dimension
|
600 x 620 mm
|
|
Working height
|
820 mm
|
|
Spindle diameter
|
30 mm
|
|

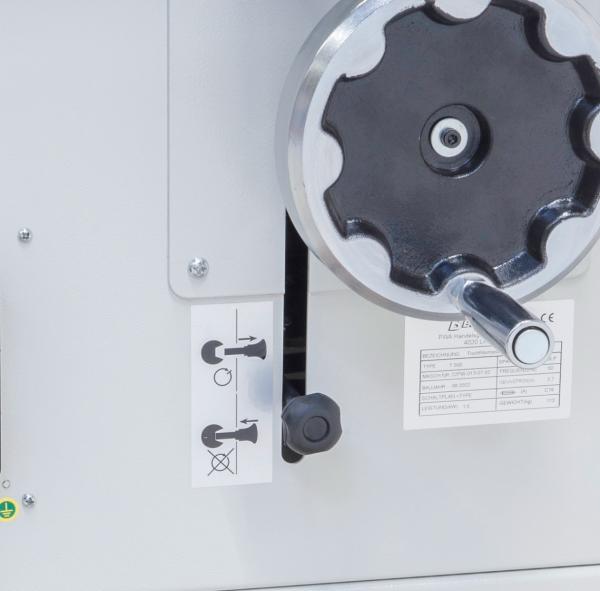

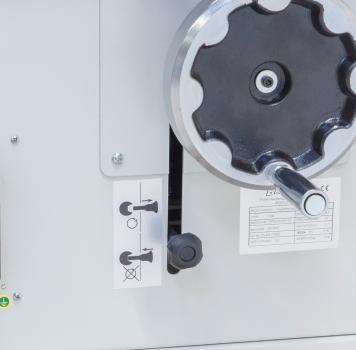

Height adjustment of the spindle
|
110 mm
|
|
Clamping length
|
105 mm
|
|
Max. Tool diameter
|
160 mm
|
|
Max. Tool diameter retractable
|
160 mm
|
|
Spindle speed
|
1400/3790/5670/8650 rpm
|
|
Suction connection Ø
|
100 mm
|
|
Motor output power S1 100%
|
1, 5 kW (2,0 HP)
|
|
Motor input power S6 40%
|
2,1 KW (2,8 HP)
|
|
Voltage
|
400 V
|
|
Machine dimension (W x D x H)
|
810 x 670 x 1130 mm
|
|
Weight approx.
|
104 kg
|
