Bernardo table lathe Profi 550 WQ - 400 V
The Profi 550 WQ is a top-quality lead screw lathe constructed according to DIN-standards. Special features of these models include the large longitudinal feed with 6 settings and the cross feed.
Properties Bernardo table lathe Profi 550 WQ - 400 V
- Comes complete with lead screw for thread cutting and automatic longitudinal feed
- Solid machine bed with inductively hardened and polished guides
- High-quality tapered rollerbearings ensure high concentricity of spindle nose (≤ 0,009 mm)
- Temperature monitoring incl. warning light protect motor against overload
- Tailstock can be adjusted for taper turning
- User-friendly arrangement of control elements
- Guides adjustable via gibs
- Spindle features 2 adjustable tapered roller bearings (P5-quality)
- Longitudinal and cross feed come standard
- Protective switch with undervoltage release
Standard accessories Bernardo table lathe Profi 550 WQ - 400 V
- 3-jaw chuck DK11-125 mm
- Flange 125 mm

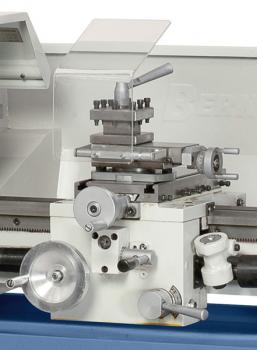

- Cross slide with top support
- Dead centers
- Thread dial
- Change gears
- 4-way tool post holder
- Chuck guard
- Chip guard
- Leadscrew cover
- Tools
Technical specifications Bernardo table lathe Profi 550 WQ - 400 V
|
Distance between centers
|
550 mm
|
|
Center height
|
125 mm
|
|
Swing over bed
|
250 mm
|
|
Bed width
|
135 mm
|
|
Spindle bore
|
26 mm
|
|
Taper at spindle bore
|
MT 4
|
|
Speed range
|
(6) 125 - 2000 rpm
|
|
Longitudinal feed
|
(6) 0,06 - 0,32 mm/rev
|
|
Cross feed
|
(4) 0,03 - 0,075 mm/rev
|
|
Metric thread
|
(18) 0,2 - 3,5 mm
|
|
Inch thread
|
(21) 8 - 56 threads/1"
|
|
Travel of tailstock sleeve
|
70 mm
|
|
Taper of tailstock sleeve
|
MT 2
|
|
Motor power output S1 100%
|
0,75 kW / 400 V
|
|
Motor power input S6 40%
|
1,0 kW / 400 V
|
|
Machine dimensions (W x D x H)*
|
1210 x 610 x 450 mm
|
|
Weight approx.
|
120 kg
|
without stand
