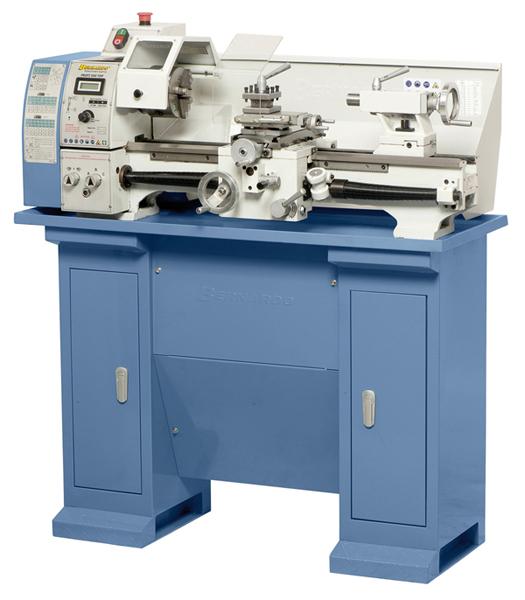

The Profi 550 Top is the latest additions to our range of lathes. Come complete with high-quality Delta frequency inverters, resulting in significant advantages such as high torque in low speed range and the nearly constant speed at heavy workloads.
Features Bernardo table lathe Profi 550 Top
- Three -phase motor with frequency inverter for higher performance and high torque
- Stepless speed adjustment as part of standard accessories, set speed can be read on digital display
- Feed settings are logically arranged, easy to control with top accuracy
- Suitable for processing of steel, non-ferrous metals and plastics
- Prism bed with large support surface, inductively hardened and polished
- Precise spindle bearing with two adjustable precision taper roller bearings
- High concentricity of spindle nose – better than 0.009 mm
- Tailstock spindle and handwheel come with adjustable scale (0.02 mm)
Standard accessories Bernardo table lathe Profi 550 Top
- Dead centers
- 3-jaw chuck DK11-125 mm
- Flange 125 mm
- Change gears
- 4-way tool post holder
- Cross slide with top support
- Frequency inverter
- Digital speed indication
- Thread dial
- Chuck guard
- Splash guard
- Leadscrew cover
- Tools
Technical specifications Bernardo table lathe Profi 550 Top
|
Distance between centers |
550 mm |
|
Center height |
125 mm |
|
Swing over bed |
250 mm |
|
Bed width |
135 mm |
|
Spindle bore |
26 mm |
|
Taper at spindle bore |
MT 4 |
|
Speed range, stepless |
70 - 380 / 380 -2000 rpm |
|
Longitudinal feed |
(6) 0,06 - 0,32 mm/rev. |
|
Cross feed |
(4) 0,03 - 0,075 mm/rev. |
|
Metric thread |
(18) 0,2 - 3,5 mm |
|
Inch thread |
(21) 8 - 56 threads/1“ |
|
Travel of tailstock sleeve |
70 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
0,75 kW / 230 V |
|
Motor power input S6 40% |
1,0 kW / 230 V |
|
Machine dimension (W x D x H)* |
1210 x 610 x 450 mm |
|
Weight approx. |
137 kg |
whitout stand
