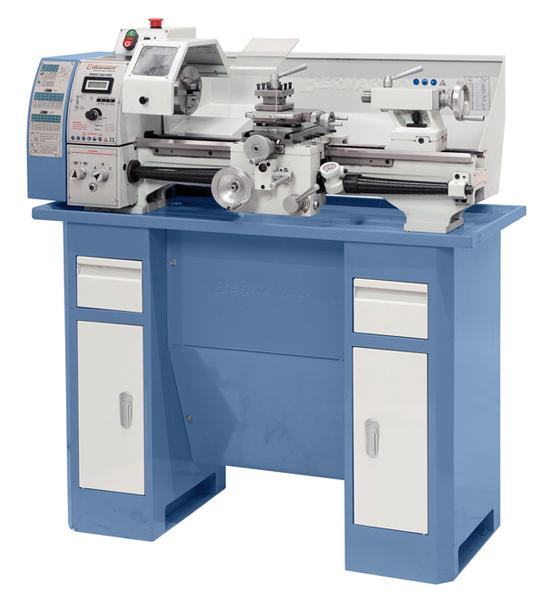

The Profi 550 PRO turning lathe feature a high speed range up to 3000 rpm as well as a large range of standard accessories (for instance DC-motor with frequency inverter, main spindle bearing in P5-quality, etc.) making this model ideal for users with high expectations.
Properties Bernardo table lathe Profi 550 Pro
- Precision 3-jaw steel chuck for speed up to 3000 rpm comes standard
- Serially with Delta frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
- Main spindle bearing with adjustable taper roller bearing in P5-quality
- Tailstock spindle and handwheel come with adjustable scale (0.02 mm)
- Optionally available milling attachment increases range of applications
- High concentricity of the hardened spindle nose ≤ 0,009 mm
- Solid machine bed with inductive hardened and polished guideways
- Top support can be adjusted in x-axis
- Stepless speed adjustment as part of standard accessories, set speed can be read on digital display
Standard accessories Bernardo table lathe Profi 550 Pro
- 3-jaw steel chuck PO3-125 mm
- Flange 125 mm
- Dead centers
- Change gears
- 4-way tool post holder
- Cross slide with top support
- Frequency inverter
- Digital speed indication
- Thread dial
- Chuck guard
- Splash guard
- Leadscrew cover
- Tools
Technical specifications Bernardo table lathe Profi 550 Pro
|
Distance between centers |
550 mm |
|
Center height |
125 mm |
|
Swing over bed |
250 mm |
|
Bed width |
135 mm |
|
Spindle bore |
26 mm |
|
Taper at spindle bore |
MT 4 |
|
Speed range, stepless |
30 - 450 / 150 - 3000 rpm |
|
Longitudinal feed |
(6) 0,06 - 0,32 mm/rev. |
|
Cross feed |
(4) 0,03 - 0,075 mm/rev. |
|
Metric thread |
(18) 0,2 - 3,5 mm |
|
Inch thread |
(21) 8 - 56 threads/1“ |
|
Travel of tailstock sleeve |
70 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
1,5 kW / 230 V |
|
Motor power input S6 40% |
2,2 kW / 230 V |
|
Machine dimension (W x D x H)* |
1210 x 610 x 450 mm |
|
Weight approx. |
137 kg |
whitout stand
