In contrast to the Profi 400 V the Profi 400 G bench lathe features a reduction gearing, allowing speed setting without having to change pulleys. The digital display allows for convenient and quick readout of set speed.
Properties Bernardo table lathe Profi 400 G
- Comes complete with 2 gear settings and electronic stepless speed adjustment
- Strongly reinforced machine bed featuring induction-hardened, polished guide
- Ideal for processing of steel, non-ferrous metals and plastics
- Universal in use: longitudinal turning, facing, profiling, thread cutting etc.
- Change gears for cutting of metric threads are part of the standard accessories
- Main spindle features adjustable tapered roller bearings in P5 quality

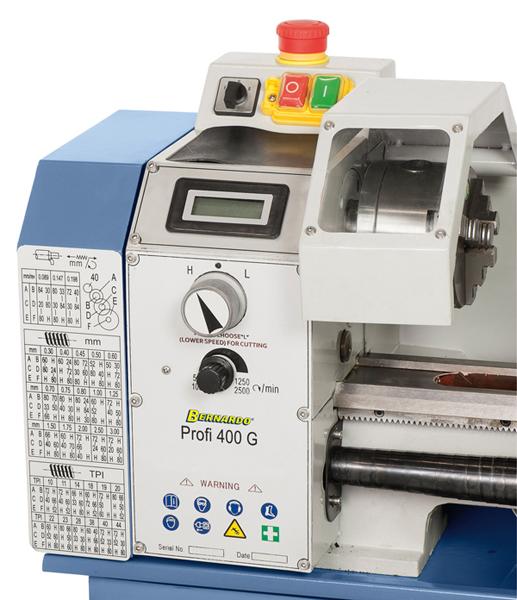

- User-friendly arrangement of control elements on gear head
- Tailstock features single-lever clamping, adjustable for taper turning
- V-ledges allow for adjustment of bed way guides
Standard accessories Bernardo table lathe Profi 400 G
- 3-jaw chuck DK 11-100 mm
- 4-way tool post holder
- Dead centers
- Change gears
- Chuck guard
- Splash guard
- Chip tray
- Digital speed indication
- Tools
Technical specifications Bernardo table lathe Profi 400 G
|
Distance between centers |
400 mm |
|
Center height |
105 mm |
|
Swing over bed |
210 mm |
|
Spindle bore |
21 mm |
|
Taper of spindle bore |
MT 3 |
|
Speed range, stepless |
50 - 1250 / 100 - 2500 rpm |
|
Longitudinal feed |
(3) 0,089 - 0,198 mm/rev |
|
Metric thread |
(15) 0,3 - 3 mm |
|
Inch thread |
(12) 10 - 44 threads/1“ |
|
Travel of tailstock sleeve |
55 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
0,60 kW / 230 V |
|
Motor power input S6 40% |
0,80 kW / 230 V |
|
Machine dimension (W x D x H)* |
930 x 400 x 380 mm |
|
Weight approx. |
60 kg |
witout stand
