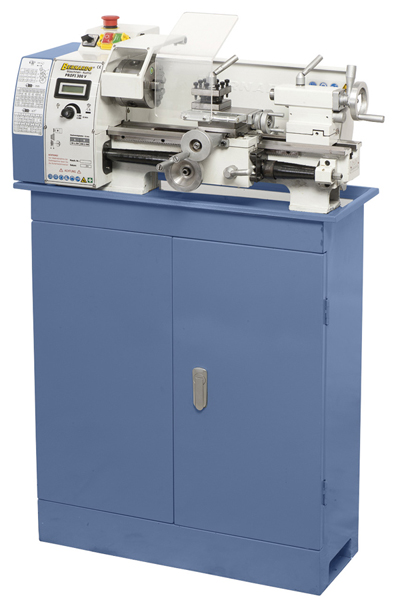

This is our top model in the turning area with a large 300 mm distance between the centres. The stepless speed adjustment makes this machine very popular for precision mechanics as well as model-makers.
Features Bernardo table lathe Profi 300 V
- Stepless speed adjustment
- Control elements are clearly arranged and accessible
- Machine bed inductive hardened and polished
- High-quality ball bearings ensure high spindle concentricity (≤ 0,009)
- 3 freely adjustable longitudinal feeds
- Adjustable tailstock for taper turning
- Guideways adjustable via gibs
- Serially equipped with change gears for thread cutting
Standard accessories Bernardo table lathe Profi 300 V

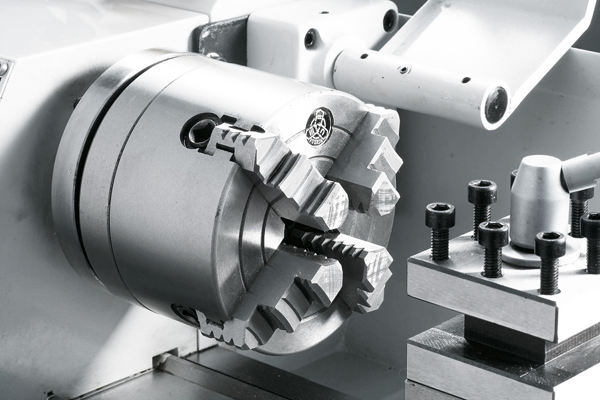

- 3-jaw chuck DK11-100 mm
- 4-way tool post holder
- 2 dead center
- Change gear
- Chuck guard
- Splash guard
- Chip tray
- Digital speed indication
- Tools
Technical specifications Bernardo table lathe Profi 300 V
|
Distance between centers |
300 mm |
|
Center height |
90 mm |
|
Swing over bed |
180 mm |
|
Spindle bore |
20 mm |
|
Taper at spindle bore |
MT 3 |
|
Speed range, stepless |
50 - 1250 / 100 - 2500 rpm |
|
Longitudinal feed |
(3) 0,083 - 0,159 mm/rev. |
|
Metric thread |
(14) 0,3 - 3 mm |
|
Inch thread |
(10) 10 - 44 threads/1“ |
|
Travel of tailstock sleeve |
60 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
0,50 kW / 230 V |
|
Motor power input S6 40% |
0,70 kW / 230 V |
|
Machine dimension (W x D x H)* |
740 x 390 x 370 mm |
|
Weight approx. |
60 kg |
without stand
