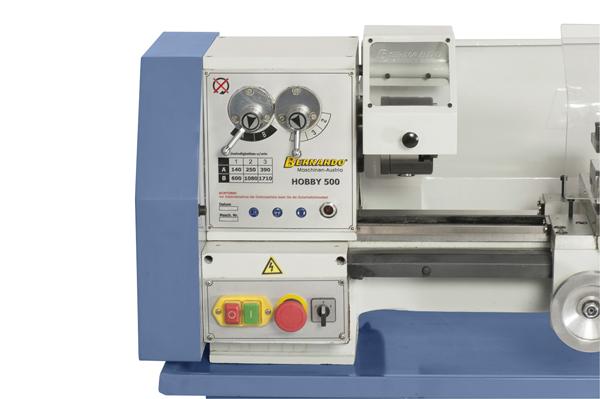

The Hobby 500 turning lathe is equipped with a 6-step control gear to allow for quick speed change. The compact construction guarantees smooth running and precise work.
Features Bernardo table lathe Hobby 500 - 400 V
- Control gear allows easy and quick speed change
- Machine bed inductive hardened and polished
- Guideways adjustable via gibs
- Optimal price-performance-ratio
- Very handy machine with leadscrew for thread cutting
- Spindle bedded with 2 adjustable precision ball bearings
- Tailstock can be adjusted for taper turning
- Protective switch with undervoltage release
- Solid and small construction
Standard accessories Bernardo table lathe Hobby 500 - 400 V
- 3-jaw chuck 100 mm
- Change gears
- Dead center
- 4-way tool post holder
- Cross slide with top support
- Chuck guard
Technical specifications Bernardo table lathe Hobby 500 - 400 V
|
Distance between centers |
500 mm |
|
Center height |
120 mm |
|
Swing over bed |
240 mm |
|
Spindle bore |
20 mm |
|
Taper at spindle bore |
MT 3 |
|
Speed range |
140 - 1710 rpm, 6 steps |
|
Longitudinal feed |
(4) 0,05 - 0,2 mm/rev. |
|
Metric thread |
(11) 0,4 - 3 mm |
|
Inch thread |
(11) 8 - 28 threads/1“ |
|
Travel of tailstock sleeve |
45 mm |
|
Taper of tailstock sleeve |
MT 2 |
|
Motor power output S1 100% |
0,55 kW / 400 V |
|
Motor power input S6 40% |
0,80 kW / 400 V |
|
Machine dimension (W x D x H)* |
1150 x 480 x 420 mm |
|
Weight approx. |
130 kg |
without stand
