Bernardo table lathe Hobby 400 Super
The Hobby 400 Super table lathe features a brushless DC- motor, allowing smooth operation and a consistent spindle drive. The attractive price-benefit ratio makes this model ideal for model-makers and amateurs.
Features Bernardo table lathe Hobby 400 Super
- High-quality bearings ensure high spindle concentricity (better than 0,015 mm)
- Serially equipped with leadscrew for thread cutting and automatic longitudinal feed
- Ideal for working on steel, non-ferrous materials and plastics
- Change gears in metal execution for metric thread cutting comes standard
- Application range includes: thread cutting, longitudinal, face and internal turning etc.
- DC-Motor allows ideal torque at low speed range
- Spindle bedded with 2 adjustable tapered roller bearings
- Powerful DC-Motor with drive of 500 W
- Only 1 speed range, no adjustment necessary
Standard accessories Bernardo table lathe Hobby 400 Super
- 3-jaw chuck 100 mm
- Chuck guard
- Quick change tool holder with 4 inserts
- Change gears
- Splash guard
- Dead centre

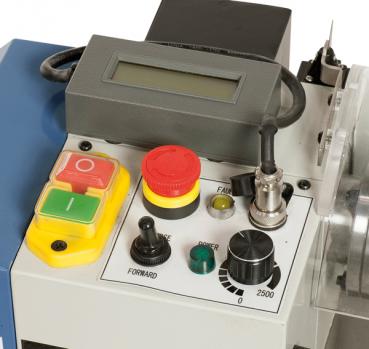

- Digital display for cross slide and top support
- Tools
Technical specifications Bernardo table lathe Hobby 400 Super
| Distance between centers | 400 mm |
| Center height | 90 mm |
| Swing over bed | 180 mm |
| Swing over cross slide | 110 mm |
| Spindle bore | 20 mm |
| Taper at spindle bore | MT 3 |
| Speed range, stepless | 100 - 2500 rpm |
| Longitudinal feed | 0,1 / 0,2 mm/rev. |
| Metric thread (10) | 0,4 - 2,0 mm |
| Travel of tailstock sleeve | 55 mm |
| Taper of tailstock sleeve | MT 2 |
| Motor power output S1 100% | 0,50 kW / 230 V |
| Motor power input S6 40% | 0,70 kW / 230 V |
| Machine dimension (W x D x H)* | 850 x 280 x 300 mm |
| Weight approx. | 50 kg |
* without stand
