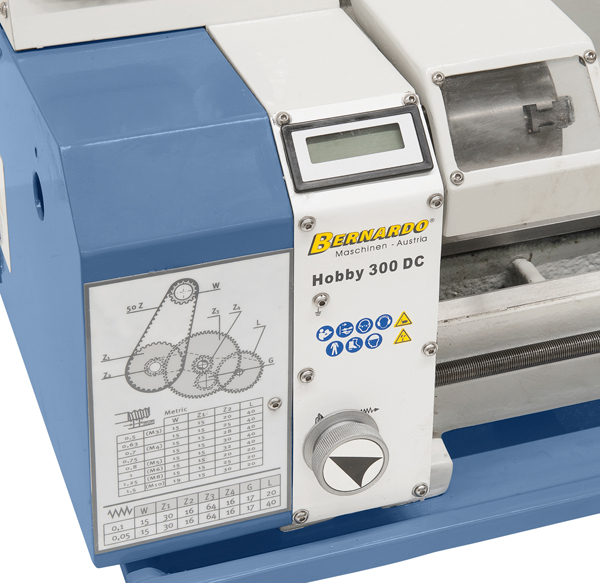

The Hobby 300 DC table lathe features a brushless DC- motor, allowing smooth operation and a consistent spindle drive. The attractive price-benefit ratio makes this model ideal for model-makers and amateurs.
Features Bernardo table lathe Hobby 300 DC
- Serially with leadscrew for automatic longituindal feed or thread cutting
- Stepless speed adjustment of main spindle
- User-friendly arrangement of control elements
- Quick and easy speed change
- Inductive hardened and polished machine bed
- Switch for manual or automatic longitudinal feed
- Guides adjustable by gibs
- Handwheels with adjustable fine scale (0,05 / 0,01 mm)
- High quality ball bearings ensure high spindle concentricity (≤ 0,015 mm)
Standard accessories Bernardo table lathe Hobby 300 DC
- 3-jaw chuck 80 mm
- Chuck guard
- 2-way tool post holder
- Change gears
- Splash guard
- Tools
- Dead centre
Technical specifications Bernardo table lathe Hobby 300 DC
|
Distance between centers |
300 mm |
|
Center height |
75 mm |
|
Swing over bed |
150 mm |
|
Spindle bore |
11 mm |
|
Taper at spindle bore |
MT 1 |
|
Speed range, stepless |
160 - 1500 / 320 - 3000 rpm |
|
Longitudinal feed |
0,05 / 0,1 mm/rev. |
|
Metric thread |
(8) 0,5 - 1,5 mm |
|
Travel of tailstock sleeve |
45 mm |
|
Taper of tailstock sleeve |
MT 1 shortened |
|
Motor power output S1 100% |
0,45 kW / 230 V |
|
Motor power input S6 40% |
0,63 kW / 230 V |
|
Machine dimension (W x D x H)* |
660 x 330 x 300 mm |
|
Weight approx. |
25 kg |
* without stand
