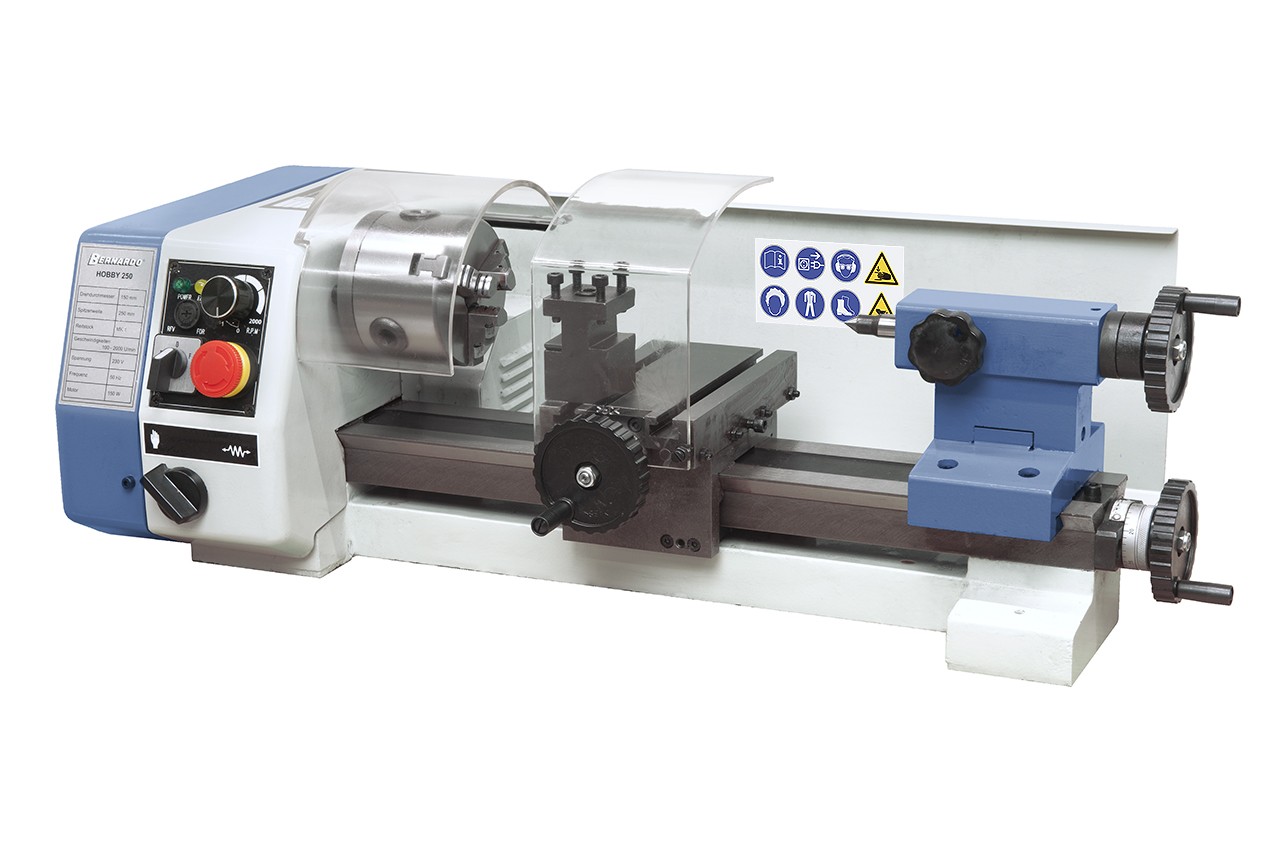

Bernardo table lathe Hobby 250

• Infinitely variable speed control of the main spindle
• User-friendly arrangement of the switching elements
• Simple and fast speed change
• Prismatic bed inductively hardened and ground
• Selector switch for manual or automatic longitudinal feed
• Guides can be adjusted via tapered bars
• Optimum price-performance ratio
• Precise spindle bearing with 2 adjustable taper roller bearings
• Compact, small design for low-vibration operation
• High concentricity of the spindle nose (≤ 0.015 mm) due to precision ball bearings

Scope of delivery Bernardo Hobby 250 table lathe:

• 3-jaw chuck 80 mm
• Chuck guard
• Double steel holder
• Centre point MK 1
• Chipping back
• Operating tool

Available special accessories Bernardo Hobby 250 table lathe

• Fixed steady rest (Art.No.:03-1500)
• Travelling steady rest (Art.No.:03-1505)

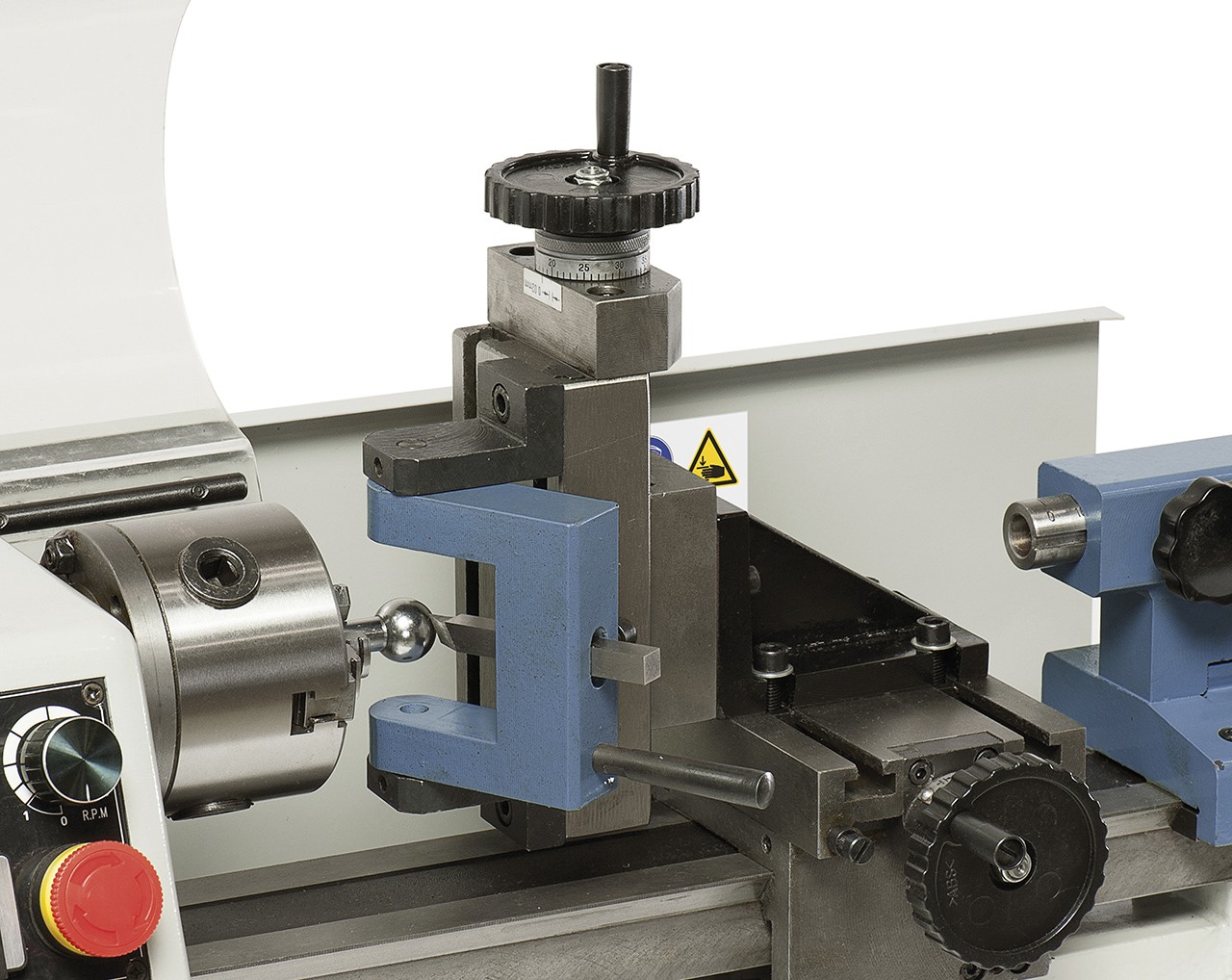

• Vertical milling support (Art.No.:03-1510)
• Rotatable top slide (Art.No.:03-1515)
• Tapping attachment metric (Art.No.:03-1520)
• Tapping attachment inch (Art.No.:03-1521)
• Collet set 3 - 6 mm (4 pcs.) (Art.No.:03-1525)
• Ball turning device (Art.No.:03-1530)
• Face plate 80 mm (Art.No.:21-2501)
• Travelling centre punch PC - MK 1 (Art.No.:22-1000)
• Quick-change tool holder set model Bernardo size 1 (Art.No.:23-1055)
• Factory assembly quick-change toolholder ** (Art.No.:23-1092)
• Quick-change toolholder with straight insert for size 1 (Art.No.:23-1058)
• Quick-action drill chuck 1 - 10 mm / B 12 (Art.No.:24-1080)
• Rotary chisel set 8 mm, 11 pcs. (Art.No.:44-1011)
• Lathe chisel set with carbide inserts 8 mm, 6 pcs. incl. boring bar (Art.No.:44-2050)
• Lathe chisel set with carbide inserts 8 mm, 7 pcs., set A (Art.No.:44-3080)
• Base frame (Art.No.:56-1000)

Technical data Bernardo Hobby 250 table lathe:

* Option
