Bernardo table lathe Hobby 140

Mobile Preview: Bernardo table lathe Hobby 140 online

Bernardo table lathe Hobby 140

Product No.:: 03-0999
Shipping time:: 2-4 days (abroad may vary)
Stock:: pieces
Weight:: 14 kg per piece

575,90 EUR

19% VAT excl. Shipping costs

Ask about product

Description

Description

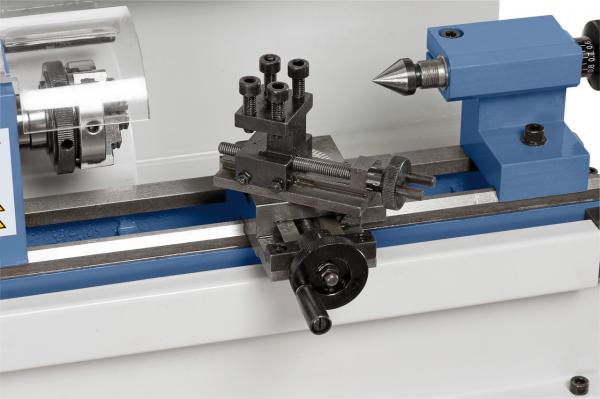

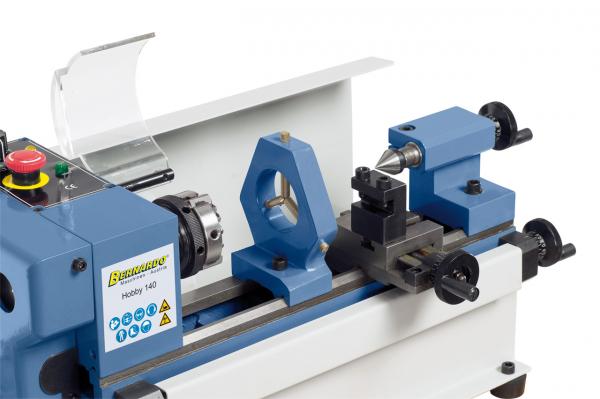

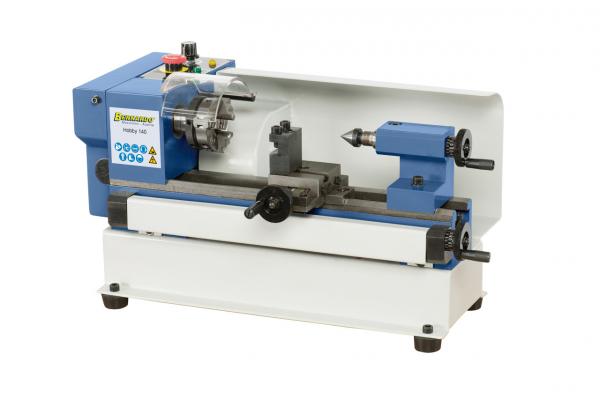

The precise bench lathe Hobby 140 is ideal for machining of smaller workpieces. The compact construction provides vibration-free environments for precision mechanic, watchmaker, goldsmith and at the model making.

Features Bernardo table lathe Hobby 140

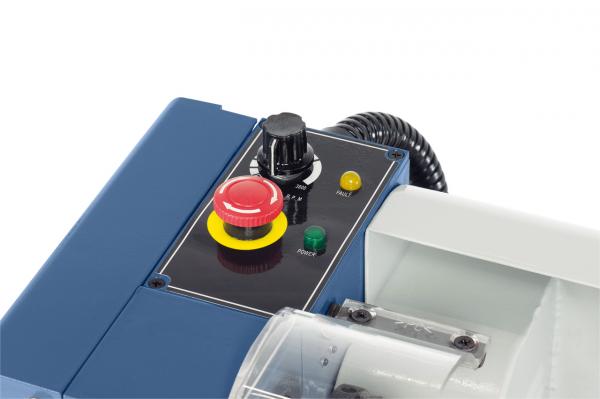

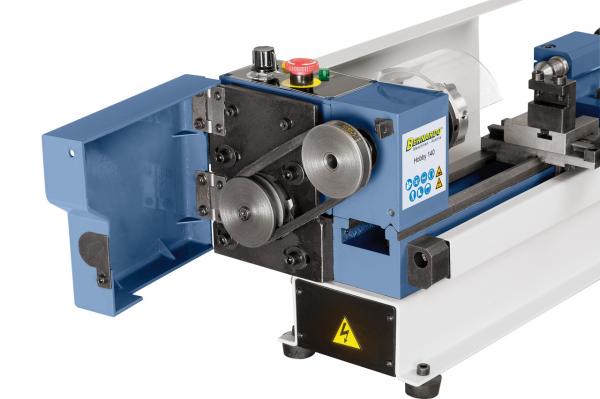

Electronic, stepless adjustable drive by direct current motor
Wide speed range from 0 - 3800 rpm
Optional accessories increase application area
Compact, small construction, optimal price-performance ratio
Ideal for working with steel, non-ferrous metals and plastics
High-quality ball bearings guarantees high concentricity
Inductive hardened and polished machine bed
Guides adjustable by gibs
Small and compact construction eliminates most vibrations

Standard accessories Bernardo table lathe Hobby 140

Technical specifications Bernardo table lathe Hobby 140

Distance between centers	140 mm
Center height	55 mm
Swing over bed	110 mm
Swing over cross slide	60 mm
Spindle bore	10 mm
Speed range, stepless	0 - 3800 rpm

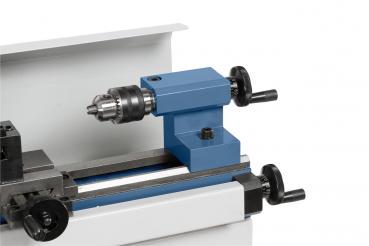

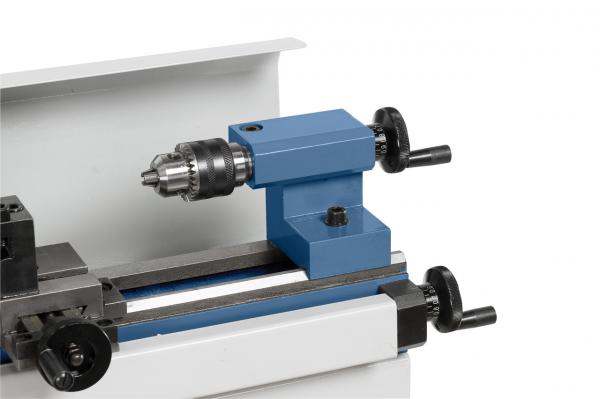

Travel of tailstock sleeve	25 mm
Taper of tailstock sleeve	cylindrical Ø 10 mm
Motor power output S1 100%	0,15 kW / 230 V
Motor power input S6 40%	0,20 kW / 230 V
Machine dimension (W x D x H)	420 x 300 x 230 mm
Weight approx.	14 kg
