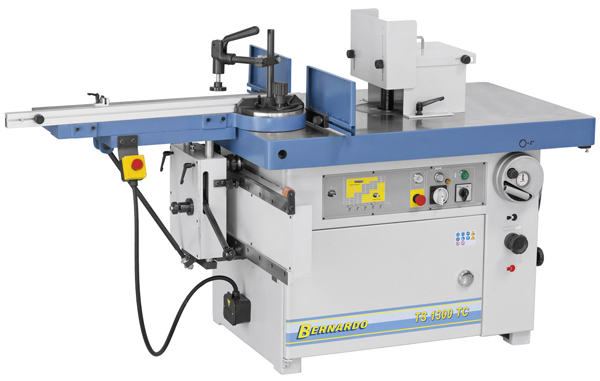

Properties Bernardo Swivel spindle milling machine with tenon slot table TS 1300 TC
- Large speed range (5 settings) from 1500 to 9000 rpm
- Moulding fence features fi nely adjustable aluminium stop bars on both sides

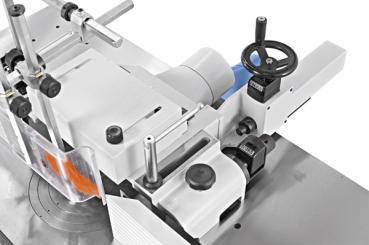

- Handwheel with analogue anlge indicator for tilting of spindle
- Electronic speed display – easy and comfortable read out on LED
- Complete with interchangeable spindle to achieve high productivity
- Logically arranged switch elements on machine front

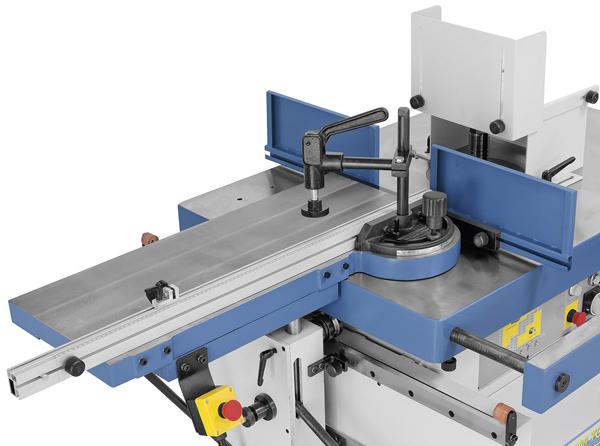

- Tenoning carriage includes telescopic fence, tenoning hood (300 mm) and emergency-stop button

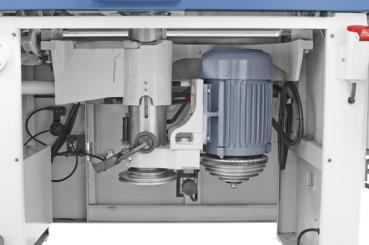

- Powerful motor (5.5 kW) with star-delta starter designed for continuous operation
- Large grey cast-iron moulder unit, tiltable from -10º to +45º
Standard accessories Bernardo Swivel spindle milling machine with tenon slot table TS 1300 TC:
- Moulding fence FA-01
- Protective and pressing device
- Tenoning hood
- Tenoning carriage and tiltable telescope fence
- Interchangeable spindle 30 mm
- Left and right turning
- LED speed indication
- Analogue angular indication
- Electric spindle brake
- Automatic star-delta starter
- Connection for power feed
Technical specifications Bernardo Swivel spindle milling machine with tenon slot table TS 1300 TC:
|
Table size |
1300 x 850 mm |
|
Working height |
870 mm |
|
Spindle diameter |
30 mm |
|
Tilting spindle |
-10° to +45° |
|
Height adjustment of spindle |
160 mm |
|
Working length of spindle |
110 mm |
|
Max. tool diameter |
|
|
- at profiling |
260 mm |
|
- at tenoning |
335 mm |
|
Max. tool diameter concealed |
210 mm |
|
Table opening |
220 mm |
|
Spindle speed |
1500 / 3500 / 5500 / 7500 / 9000 rpm |
|
Tenoning carriage |
|
|
Table size |
900 x 360 mm |
|
Max. travel |
830 mm |
|
Dust extraction outlet |
125 / 100 mm |
|
Motor power |
5,5 kW (7,5 HP) – 400 V |
|
Machine dimension (W x D x H) |
1310 x 1230 x 1500 mm |
|
Weight approx. |
530 kg |
