Bernardo Swivel spindle milling machine TS 1300
Properties Bernardo Swivel spindle milling machine TS 1300
- Comes complete with right and left turning plus electric spindle brake
- Torsion-free, grey cast-iron, strongly reinforced machine table, precisely manufactured, immaculate fi nish for top accuracy

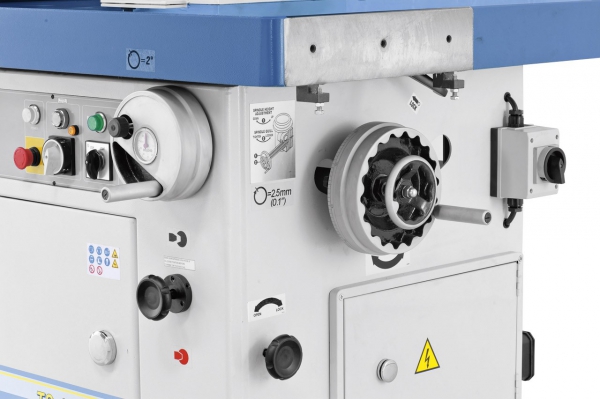

- Handwheel with analogue angle indicator for tilting of spindle (comes standard)
- Oversize, grey cast-iron milling unit, mounted on both sides of milling table

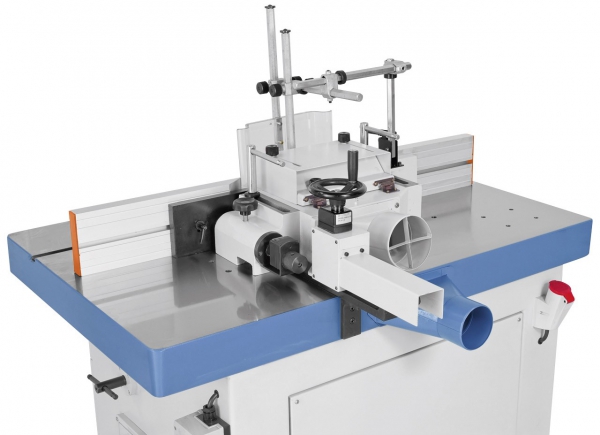

- Handwheel allows for adjustment of moulder fence – digital display shows settings to 1/10 mm accuracy
- Powerful motor with automatic star-delta starter

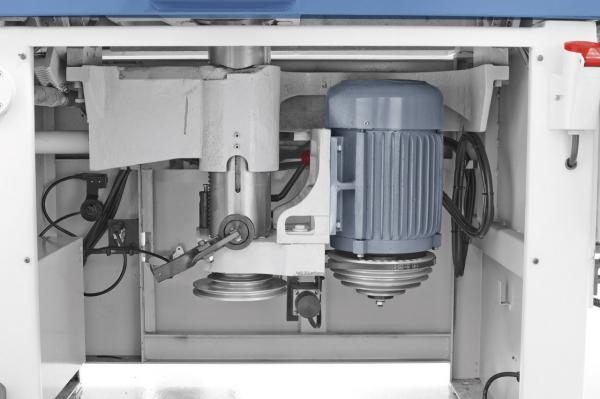

- Straightforward belt change for easy speed settings at big opening on machine front
- Digital display for comfortable readout of milling spindle stroke with 1/10 mm accuracy
- Milling spindle with precision bearing mounted in top part to lengthen life span / reduce wear of bearings
Standard accessories Bernardo Swivel spindle milling machine TS 1300
- Moulder fence FA-02
- Protective and pressing device

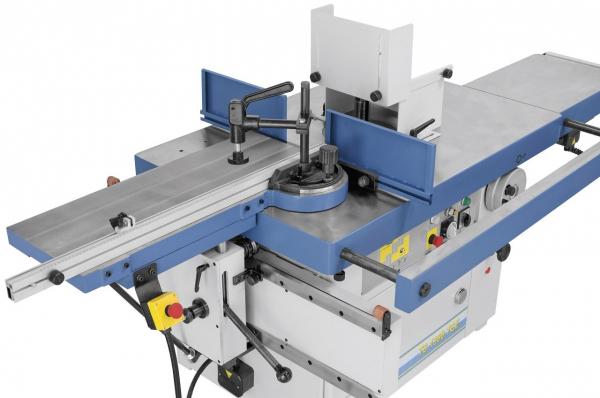

- Mitre fence with downholder
- Interchangeable spindle 30 mm
- Left and right turning
- LED speed indication
- Analogue angular indication
- Digital spindle stroke indication
- Electric spindle brake
- Automatic star-delta starter
- Connection for power feed
Technical specifications Bernardo Swivel spindle milling machine TS 1300
|
Table size |
1310 x 970 mm 2 |
|
Working heigth |
915 mm |
|
Spindle diameter |
30 mm |
|
Tilting spindle |
+10° to -45° |
|
Height adjustment of spindle |
180 mm |
|
Working length of spindle |
120 mm |
|
Max. tool diameter |
|
|
- at profiling |
260 mm |
|
- at tenoning |
360 mm |
|
Max. tool diameter concealed |
310 mm |
|
Table opening |
320 mm |
|
Spindle speeds |
1500 / 3500 / 5500 / 7500 / 9000 rpm |
|
Dust extraction outlet |
125 / 100 mm |
|
Motor power |
5,5 kW (7,5 HP) – 400 V |
|
Machine dimension (W x D x H) |
1310 x 1230 x 1500 mm |
|
Weight approx. |
530 kg |
