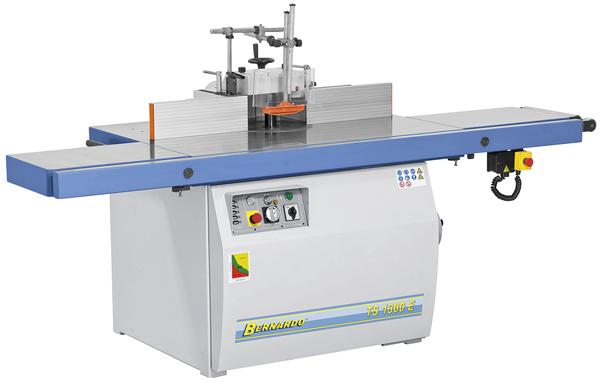

Properties Bernardo Swivel spindle milling machine TS 1300 E

Comes complete with right and left turning plus electric spindle brake
Torsion-free, grey cast-iron, strongly reinforced machine table, precisely manufactured, immaculate fi nish for top accuracy
Handwheel with analogue angle indicator for tilting of spindle (comes standard)
Oversize, grey cast-iron milling unit, mounted on both sides of milling table
Handwheel allows for adjustment of moulder fence – digital display shows settings to 1/10 mm accuracy
Complete with table extension, infeed roller and extractable workpiece support for oversize workpieces
Powerful motor with automatic star-delta starter
Straightforward belt change for easy speed settings at big opening on machine front
Digital display for comfortable readout of milling spindle stroke with 1/10 mm accuracy
Milling spindle with precision bearing mounted in top part to lengthen life span / reduce wear of bearings

Standard accessories Bernardo Swivel spindle milling machine TS 1300 E

Table size	510 x 430 / 970 mm
Table extension left / right	each 600 x 430 mm
Working heigth	915 mm
Spindle diameter	30 mm
Tilting spindle	+10° to -45°
Height adjustment of spindle	180 mm
Working length of spindle	120 mm
Max. tool diameter
- at profiling	260 mm
- at tenoning	360 mm
Max. tool diameter concealed	310 mm
Table opening	320 mm
Spindle speeds	1500 / 3500 / 5500 / 7500 / 9000 rpm
Dust extraction outlet	125 / 100 mm
Motor power	5,5 kW (7,5 HP) – 400 V
Machine dimension (W x D x H)	2610 x 1230 x 1500 mm
Weight approx.	664 kg
