Features Bernardo Surface Planer AD 310 S - 400 V
The machine with the optimal price-performance ratio for the professional do-it-yourselfer. Requirements such as stability, high power reserves and safety are a matter of course with this model. The short changeover time from planing to thicknessing due to the dual folding system of the planing tables as well as the spiral blade planing shaft for reduced noise pollution and optimal planing results are another plus of this machine.
- Reduction of noise pollution (approx. 50%) due to the standard spiral blade planing shaft and up to 20 times longer blade life (results from the fourfold usable carbide inserts).
- Advantage of the carbide inserts: In case of damage, individual knives can be exchanged or rotated

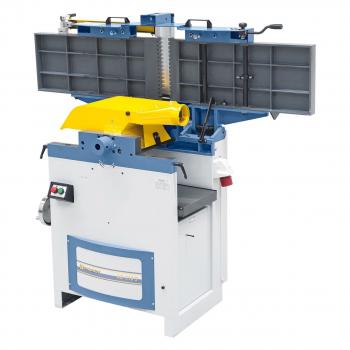

- The dressing tables fold up towards the back of the machine, thus allowing space-saving installation
- Integrated fold-down chip ejector bonnet - connection diameter 100 mm
- The carbide cutting edges ensure tear-free planing results and optimum surfaces for every type of wood
- Dual folding of the jointer tables for maximum ease of use
- Hard anodised aluminium jointer fence, swivels from 90° to 45

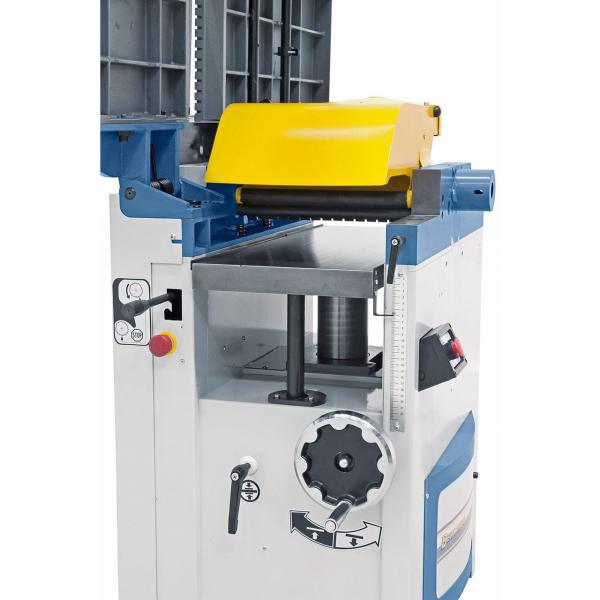

- Thicknessing table on central column guide and support for accurate planing
- Best planing results due to torsion-free truing tables made of grey cast iron
- Numerous safety devices: On-off switch with undervoltage release, planing shaft protection according to CE, limit switch against unintentional switch-on,...
Scope of delivery Bernardo surface planer AD 310 S - 400 V

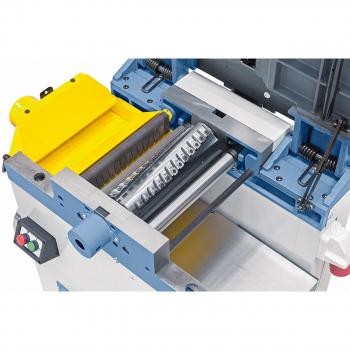

- Spiral cutter planer shaft with 56 pcs. TC inserts
- Spare HM inserts (5 pcs.)
- Sliding stick
Technical data Bernardo Surface Planer AD 310 S - 400 V
|
Surface planer
|
|
|
Dressing width
|
310 mm
|
|
Table length
|
1610 mm
|
|
Table height
|
910 mm
|
|
Planing shaft speed
|
4300 rpm
|
|
HM inserts
|
56 pcs.
|
|
Plane shaft diameter
|
95 mm
|
|
Dressing fence
|
1110 x 150 mm
|
|
Swivelling dressing stop
|
90° to 45°
|
|
Max. Chip removal
|
3 mm
|
|
Thickness planer
|
|
|
Table length
|
750 mm
|
|
Planing width
|
310 mm
|
|
Thickness passage, min./max.
|
5 - 225 mm
|
|
Max. Chip removal
|
5 mm
|
|
Feed rate
|
6 m/min
|
|
|
|
|
Suction connection Ø
|
100 mm
|
|
Motor output power S1 100%
|
3.0 kW (4.0 hp)
|
|
Motor input power S6 40%
|
4.2 kW (5.7 hp)
|
|
Voltage
|
400 V
|
|
Machine dimension (L x W x H)
|
1610 x 900 x 1150 mm
|
|
Weight approx.
|
295 kg
|
