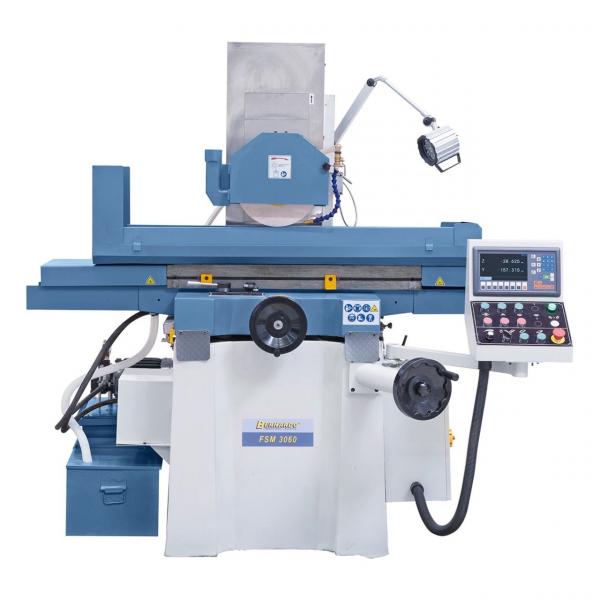

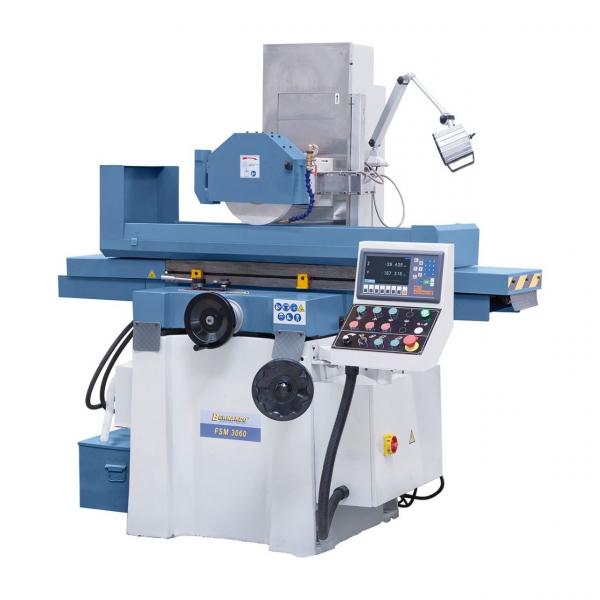

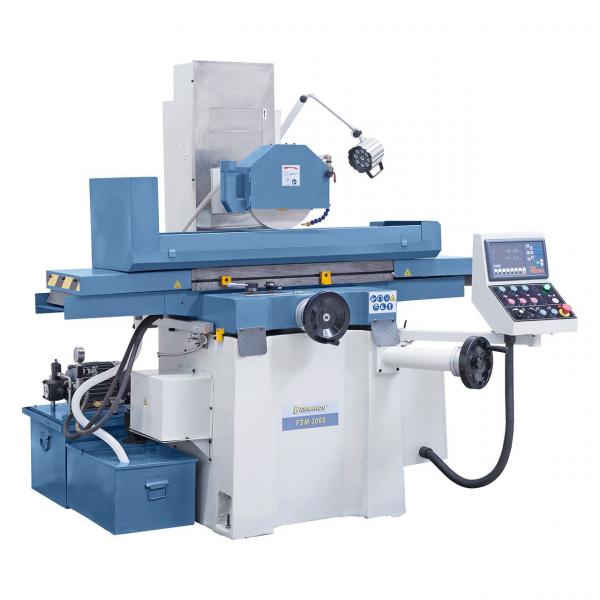

Product Highlights Bernardo Surface Grinding Machine FSM 3060
The surface grinding machine FSM 3060 convinces with its robust construction. All main assemblies such as the stand, base and slide are made of high-quality cast iron. Due to the extensive standard accessories, this model offers an optimal performance package for tool and mould making.
- Low slip-stick effect due to plastic-coated counterguides in x- and y-axis
- Longitudinal table guide V-flat, transverse table guide double-V
- Axially and radially backlash-free preloaded special bearings in the grinding spindle

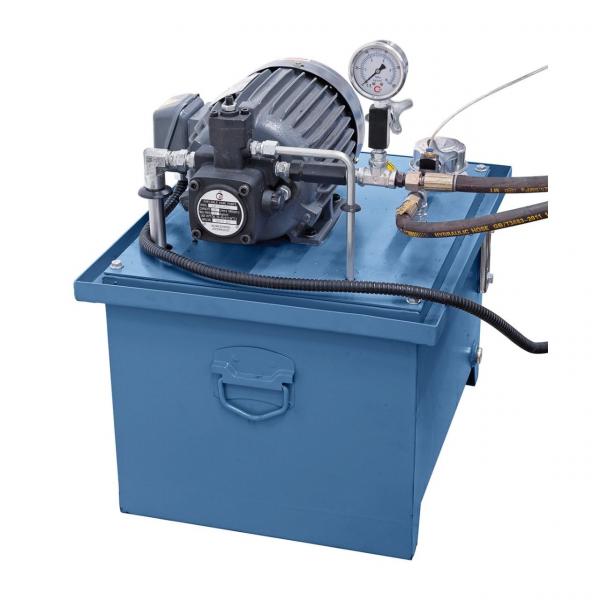

- Separate hydraulic unit with heat exchanger, avoids vibrations and thermal load
- High stability due to strong ribbing and generously dimensioned walls
- Sophisticated hydraulic system ensures smooth table reversal even with high table loads
- Complete equipment: 2-axis digital display, permanent magnetic clamping plate, etc.
- Central lubrication for all guideways
Scope of delivery Bernardo surface grinding machine FSM 3060
- 2-axis digital display ES-12 H with LCD display

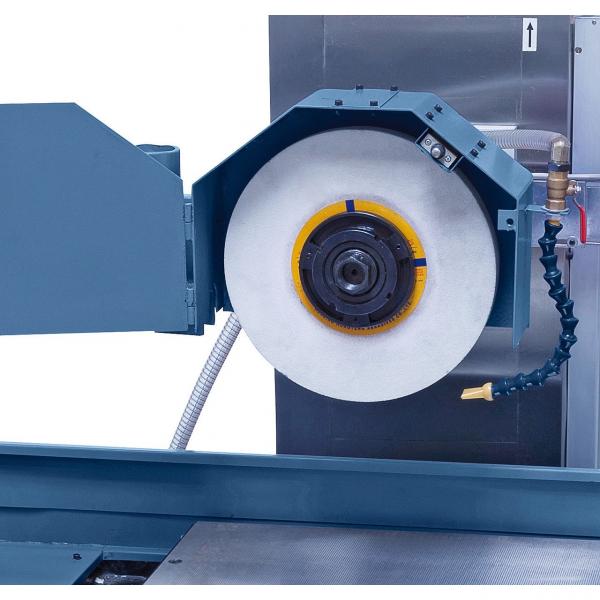

- Grinding wheel
- Wheel flange
- LED work light
- Permanent magnetic clamping plate
- Balancing stand
- Balancing shaft
- Protective covers
- Demagnetisation device
- Coolant device
- Extraction diamond
- Machine shoes
- Central lubrication
- Operating tool
Technical Data Bernardo Surface Grinding Machine FSM 3060
| Table clamping surface |
300 x 700 mm |
| T-slot number / width |
1 / 14 mm |
| Permanent magnetic chuck |
300 x 600 mm |
| Max. Travel, longitudinal |
640 mm |
| Max. Travelling distance, transverse |
320 mm |
| Distance spindle centre / table max. |
520 mm |
| Max. Workpiece weight* |
200 kg (with magnetic clamping plate) |
| Grinding disc |
300 x 30 x 75 mm |
| Table speed, hydraulic |
3 – 20 m/min |
| Cross adjustment |
Transverse infeed per handwheel rotation: 4 mm/rev |
| Scale division on handwheel |
0,02 mm |
| Vertical infeed |
Vertical infeed per handwheel rotation: 2 mm/rev |
| Scale division on handwheel |
0,01 mm |
| Grinding spindle motor |
4,0 kW |
| Spindle speed |
1440 rpm |
| Hydraulic pump motor |
1,5 kW |
| Length |
2000 mm |
| Depth |
1650 mm |
| Height |
1850 mm |
| Weight approx. |
1330 kg |
