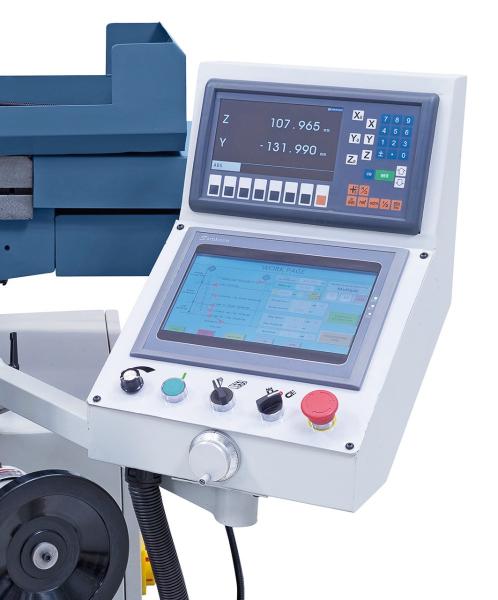

Control with touch operation and electronic handwheel.

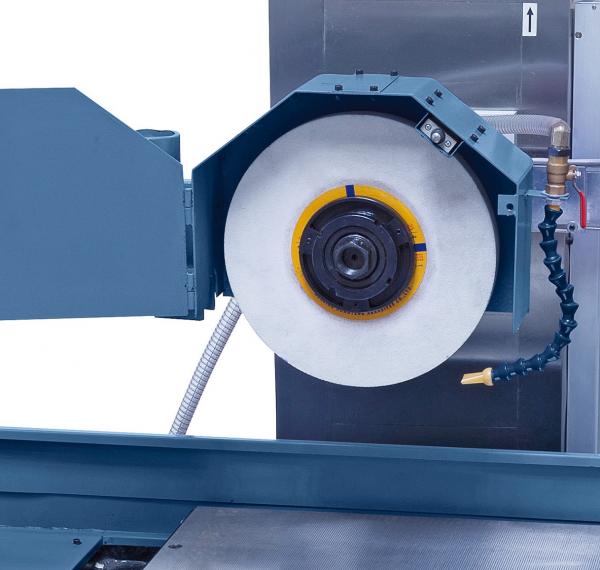

Low-vibration running and high accuracy of the grinding spindle thanks to the preloaded special bearings.
Preview: Bernardo Surface Grinding Machine FSM 3060 AHD
Preview: Bernardo Surface Grinding Machine FSM 3060 AHD
Preview: Bernardo Surface Grinding Machine FSM 3060 AHD
Preview: Control with touch operation and electronic handwheel.
Preview: Low-vibration running and high accuracy of the grinding spindle thanks to the preloaded special bearings.

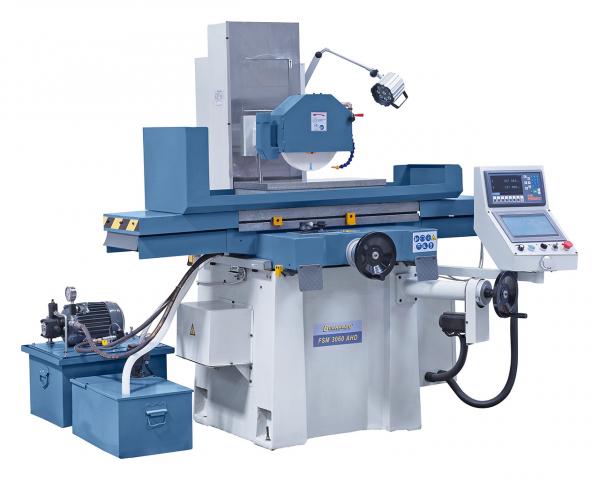

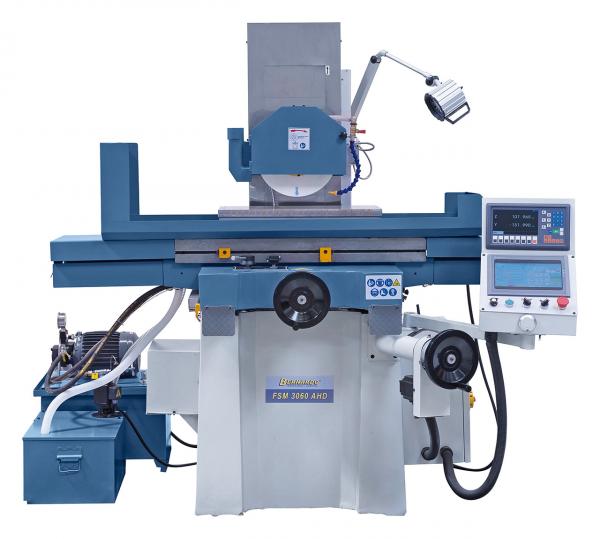

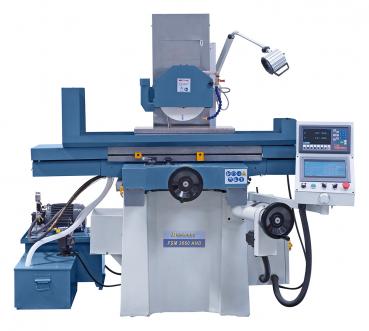

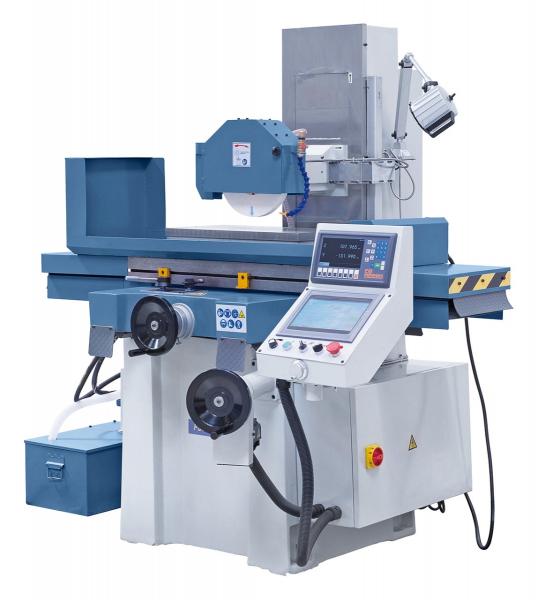

Bernardo Surface Grinding Machine FSM 3060 AHD
Bernardo Surface Grinding Machine FSM 3060 AHD
Bernardo Surface Grinding Machine FSM 3060 AHD
Bernardo Surface Grinding Machine FSM 3060 AHD
Control with touch operation and electronic handwheel.
Low-vibration running and high accuracy of the grinding spindle thanks to the preloaded special bearings.
Mobile Preview: Bernardo Surface Grinding Machine FSM 3060 AHD
Mobile Preview: Bernardo Surface Grinding Machine FSM 3060 AHD
Mobile Preview: Bernardo Surface Grinding Machine FSM 3060 AHD
Mobile Preview: Control with touch operation and electronic handwheel.
Mobile Preview: Low-vibration running and high accuracy of the grinding spindle thanks to the preloaded special bearings.

Bernardo Surface Grinding Machine FSM 3060 AHD

Product No.:
05-1408
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
1400 kg per piece
22.974,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

Product Highlights Bernardo Surface Grinding Machine FSM 3060 AHD​

The solidly built surface grinding machines of the FSM-AHD series are equipped with an automatic vertical infeed as standard. Due to the extensive standard equipment such as computer-controlled vertical infeed, magnetic plate with demagnetisation device, control via touch screen as well as an electronic hand wheel, these models offer an optimal performance package for the user.
  • Low slip-stick effect due to plastic-coated counterguides in x- and y-axis
  • Longitudinal table guide V-flat, transverse table guide double-V
  • Axial and radial backlash-free preloaded special bearings in the grinding spindle
  • High stability due to strong ribbing and generously dimensioned walls
  • Digitally controlled automatic vertical feed with servo motor
  • Sophisticated hydraulic system ensures smooth table reversal even with high table loads
  • Rapid feed to the workpiece height, adjustable finishing and burnout strokes, automatic lift-off at the end of the programme
  • Adjustable longitudinal and transverse table movement by means of end stops

Scope of delivery Bernardo surface grinding machine FSM 3060 AHD​

  • 2-axis digital display ES-12 H with LCD display
  • Control with touch operation
  • Electronic handwheel
  • Grinding wheel
  • Disc flange
  • LED work light
  • Electro-magnetic clamping plate
  • Balancing stand
  • Balancing shaft
  • Protective covers
  • Demagnetisation device
  • Coolant device
  • Extraction diamond
  • Machine shoes
  • Central lubrication
  • Operating tool

Technical Data Bernardo Surface Grinding Machine FSM 3060 AHD​

Table clamping surface 300 x 700 mm
T-slot number / width 1 / 14 mm
Electro-magnetic chuck 300 x 600 mm
Max. Travel, longitudinal 640 mm
Max. Travelling distance, transverse 320 mm
Distance spindle centre / table max. 520 mm
Max. Workpiece weight* 200 kg (with magnetic clamping plate)
Grinding disc 300 x 30 x 75 mm
Table speed, hydraulic 2 - 18 m/min
Cross adjustment Automatic infeed, transverse: 0.5 - 10 mm/stroke
Rapid traverse, transverse 990 mm/min
Transverse infeed per handwheel rotation 4 mm/rev
Scale division on handwheel 0,02 mm
Vertical infeed Automatic infeed, vertical: 0.01 / 0.1 mm
Rapid traverse, vertical 360 mm/min
Vertical infeed per handwheel rotation 2 mm/rev
Scale division on handwheel 0,01 mm
Grinding spindle motor 4,0 kW
Spindle speed 1440 rpm
Hydraulic pump motor 1,5 kW
Vertical feed motor 0,75 kW
Length 2000 mm
Depth 1650 mm
Height 1850 mm
Weight approx. 1400 kg
