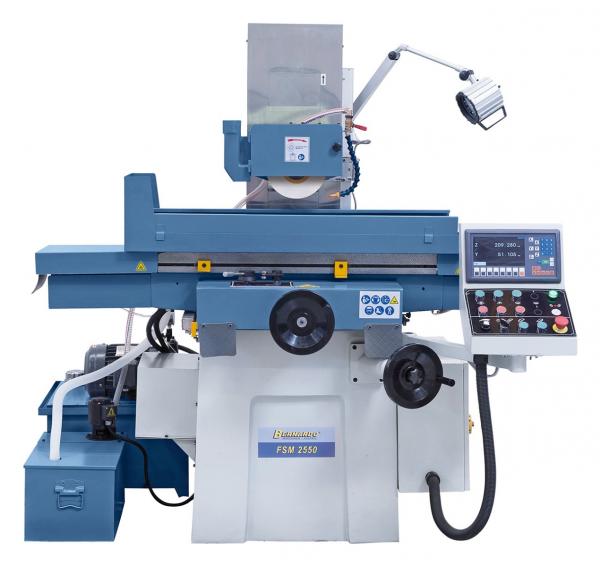

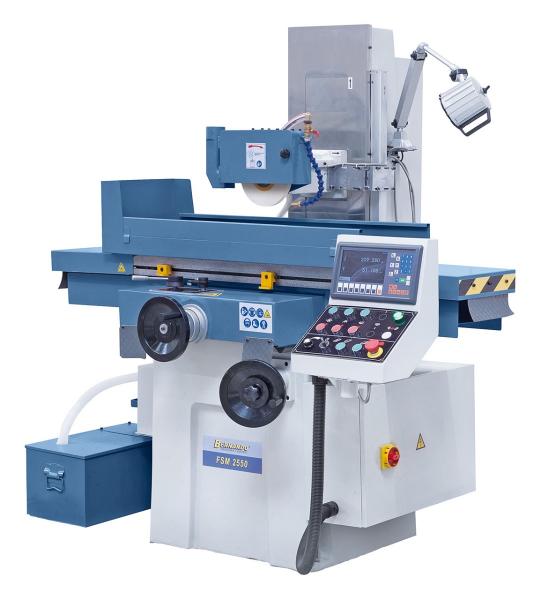

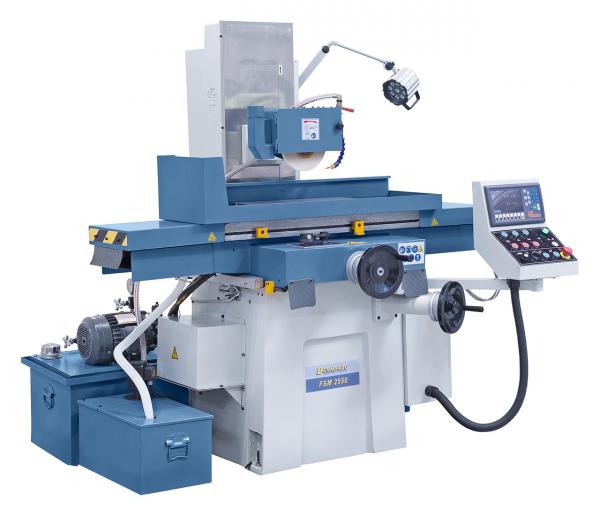

Bernardo Surface Grinding Machine FSM 2550

Product Highlights Bernardo Surface Grinding Machine FSM 2550​

The surface grinding machine FSM 2550 convinces with its robust construction. All main assemblies such as the stand, base and slide are made of high-quality cast iron. Due to the extensive standard accessories, this model offers an optimal performance package for tool and mould making.

• Low slip-stick effect due to plastic-coated counterguides in x- and y-axis
• Longitudinal table guide V-flat, transverse table guide double-V

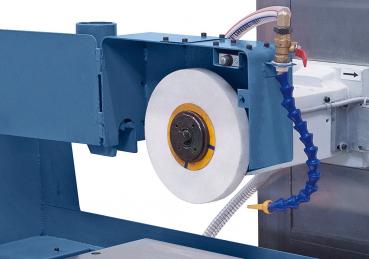

• Axially and radially backlash-free preloaded special bearings in the grinding spindle

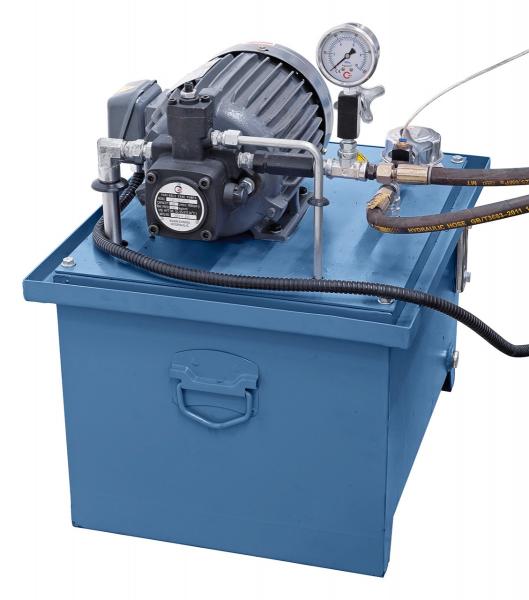

• Separate hydraulic unit with heat exchanger, avoids vibrations and thermal load
• High stability due to strong ribbing and generously dimensioned walls
• Sophisticated hydraulic system ensures smooth table reversal even with high table loads
• Complete equipment: 2-axis digital display, permanent magnetic clamping plate, etc.
• Central lubrication for all guideways

Scope of delivery Bernardo surface grinding machine FSM 2550​

• 2-axis digital display ES-12 H with LCD display
• Grinding wheel
• Wheel flange
• LED work light
• Permanent magnetic clamping plate
• Balancing stand
• Balancing shaft
• Protective covers
• Demagnetisation device
• Coolant device
• Extraction diamond
• Machine shoes
• Central lubrication
• Operating tool

Technical data Bernardo surface grinding machine FSM 2550​
