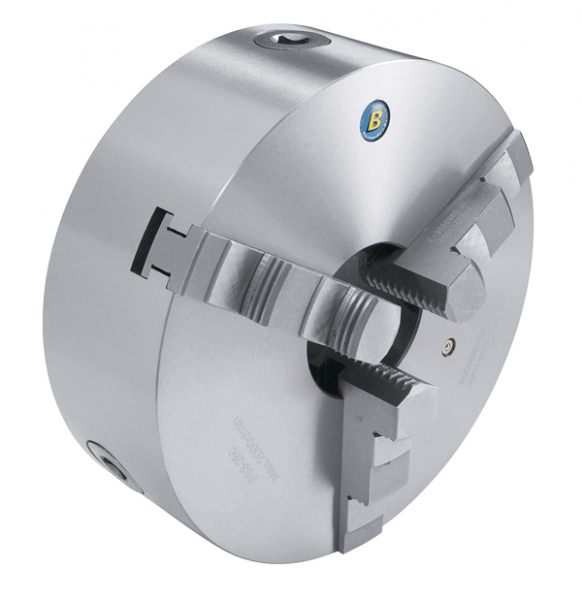

Bernardo standard 3-jaw chuck PS3-315
Product features Bernardo standard 3-jaw chuck PS3-315
Design:
- Standard three-jaw lathe chuck with high-quality cast iron body.
- With centring fixture according to DIN 6350
- Including 1 set each of turning and drilling jaws
Range of application:
- Suitable for lathes and grinding machines
- For use on machines with increased concentricity
Standard accessories:
- 1 set of turning jaws IJ-PS3
- 1 set of drilling jaws OJ-PS3
Technical data Bernardo standard 3-jaw chuck PS3-315
| A- Chuck size | 315 |
| B | 94 mm |
| C | 5 mm |
| D | 260 mm |
| E | 103 mm |
| F | 286 mm |
| G | M16 |
| H | 125 mm |
| J | 43 mm |
| Max. Speed | 1500 rpm |
| Weight approx. | 50 kg |
