Bernardo standard 3-jaw chuck PS3-200/D5

Product No.:
21-1054F1
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
19 kg per piece
564,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

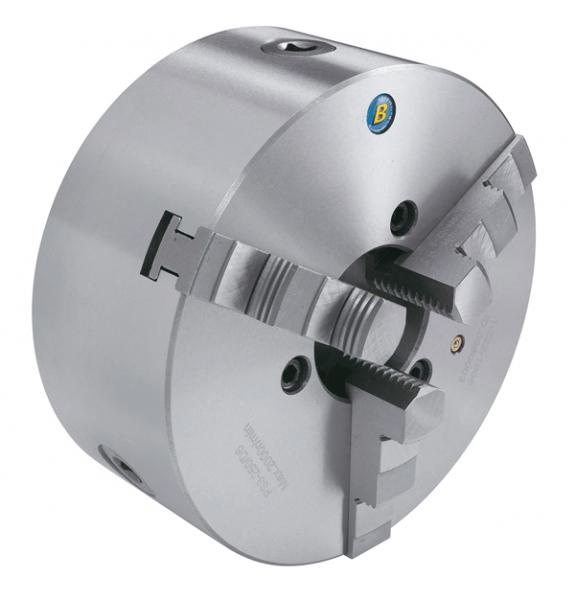

Product features Bernardo standard 3-jaw chuck PS3-200/D5​

Design:

  • Standard three-jaw lathe chuck with high-quality cast iron body
  • With Camlock direct mounting according to DIN 55029
  • Including 1 set each of turning and drilling jaws

Range of application:

  • Suitable for conventional lathes
  • For use on machines with increased concentricity

Standard accessories:

  • 1 set of turning jaws IJ-PS3
  • 1 set of drilling jaws OJ-PS3

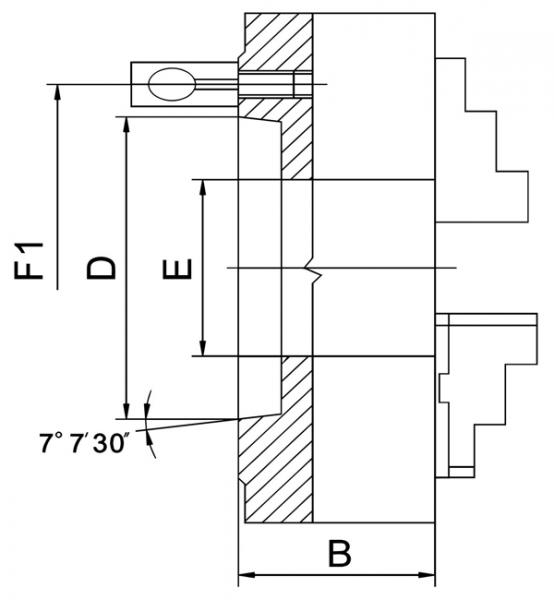

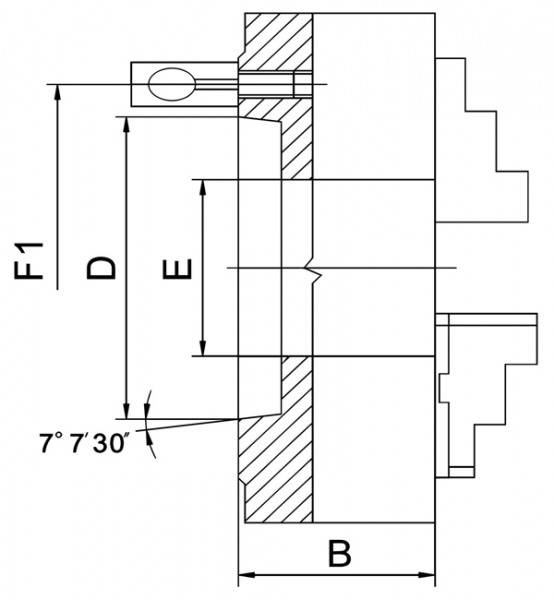

Technical data Bernardo standard 3-jaw chuck PS3-200/D5​

Chuck size

200/D5

Diameter

200 mm

Cone

5

B

91 mm

D (max.)

82,578 mm

E

55 mm

F1

104,8 mm

Camlock bolt

6

Max. Speed

2500 rpm

Weight approx.

19 kg
