Bernardo standard 3-jaw chuck PS3-160/D4
Product features Bernardo standard 3-jaw chuck PS3-160/D4
Design:
- Standard three-jaw lathe chuck with high-quality cast iron body
- With Camlock direct mounting according to DIN 55029
- Including 1 set each of turning and drilling jaws
Range of application:
- Suitable for conventional lathes
- For use on machines with increased concentricity
Standard accessories:
- 1 set of turning jaws IJ-PS3
- 1 set of drilling jaws OJ-PS3

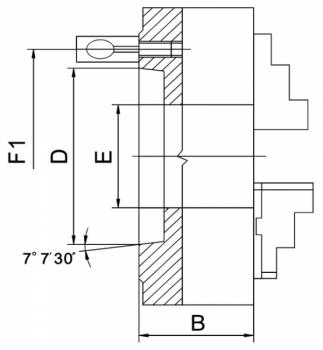

Technical data Bernardo standard 3-jaw chuck PS3-160/D4
| Chuck size | 160/D4 |
| Diameter | 160 mm |
| Cone | 4 |
| B | 81,5 mm |
| D (max.) | 63,526 mm |
| E | 42 mm |
| F1 | 82,6 mm |
| Camlock bolt | 3 |
| Max. Speed | 3000 rpm |
| Weight approx. | 9 kg |
