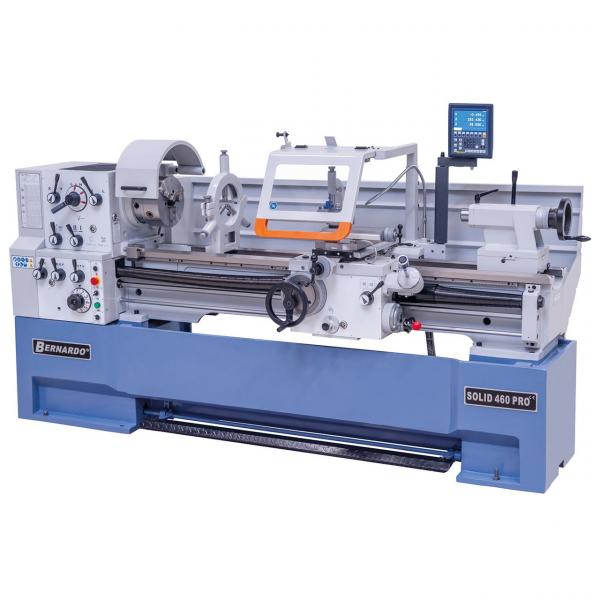

Bernardo Solid 460 x 1500 Pro Universal lathe

Product highlights Bernardo Solid 460 x 1500 Pro universal lathe

The Solid 460 Pro universal lathe has been specially designed for the economical production of individual workpieces and small series with high precision. Even the basic equipment includes all the important accessories, making this machine suitable for universal use.

• Modern main spindle bearing system with precision angular contact ball bearings
• Hardened and ground gears and shafts, also in the feed gearbox
• Central, handy control for feeds and threads with lead and pull spindles
• The gears are large, hardened and precision-ground
• The speed and feed adjustment is simple, smooth-running and precisely switchable
• Longitudinal and flat rapid traverse as standard to reduce idle times
• The machine bed, cast in one piece, is extremely torsion-resistant and low-vibration, which fulfils an essential requirement for precise turning

Scope of delivery Bernardo Solid 460 x 1500 Pro universal lathe

• 3-axis digital readout ES-12 V with LCD display

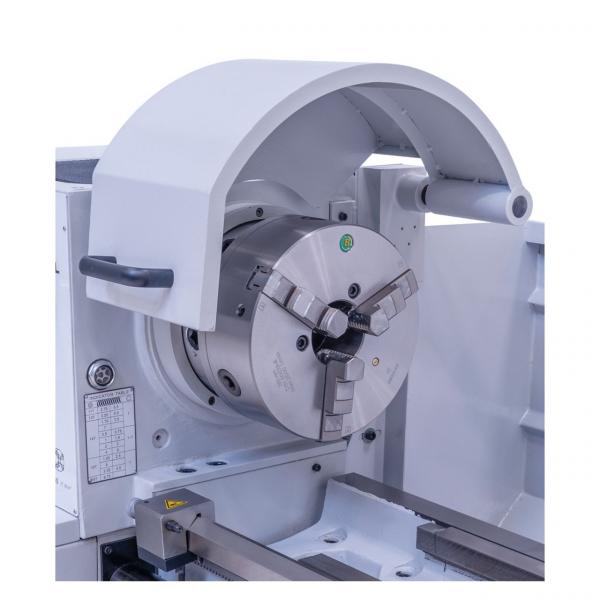

• 3-jaw chuck PS3-250 mm / D8
• Clamping disc 450 mm
• Coolant system
• Initial filling with Shell Tellus 46

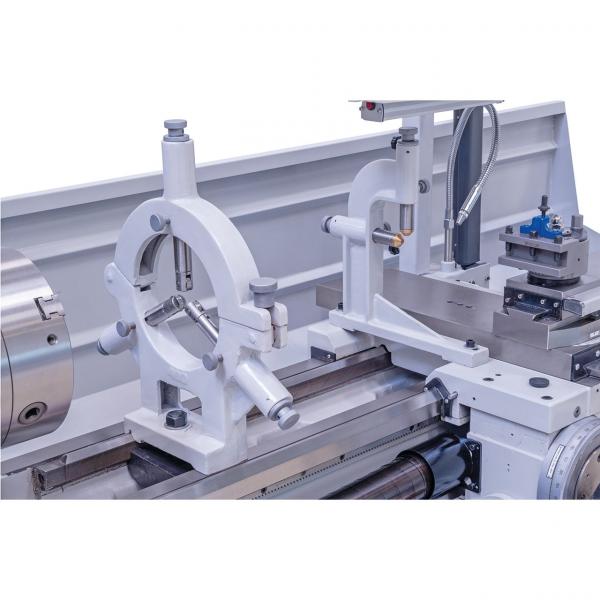

• Fixed steady rest - passage diam. max. 150 mm
• Rotating steady rest - max. diam. 110 mm
• Quick-change steel holder with 4 inserts
• Safety device for quick-change steel holder
• Motor with magnetic brake according to CE standard
• Foot pedal with brake function according to CE
• Slipping clutch
• Longitudinal and flat rapid traverse
• Interchangeable wheels
• 2 centres
• Reducing sleeve
• Thread clock
• LED machine light
• Chip back panel
• Operating tool

Technical data Bernardo Solid 460 x 1500 Pro universal lathe
