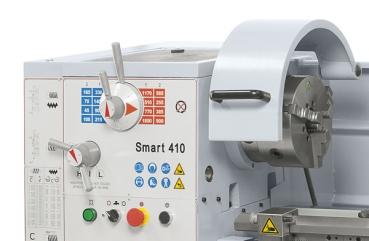

The Smart 410 universal lathe is a fantastic model for small to medium-size turning works. Even its basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. increasing the application area of this model significantly. For reducing the non-productive time, this model is equipped with a 3-axis digital readout.
Features Bernardo Smart 410 x 1500 universal lathe with digital display
- Inductive hardened, polished grey cast-iron machine bed
- Electro-mechanical foot brake reduces downtime significantly
- State-of-the-art main spindle bearing with high-quality angular ball bearings
- Modern bearing of main spindle with angular ball bearing in precision construction
- Easy, smooth and precisely adjustable speed and feed settings
- Hardened, polished gears and shafts, also in feed gear unit
- Centrally located, logical switches for feeds and threads with leadscrew and feed rod
- Adjustable tailstock for taper turning, handwheel feature adjustable scale (0,02 mm)
- The removeable bridge allows machining of workpieces with a big diameter
Standard accessories Bernardo Smart 410 x 1500 universal lathe with digital display
- 3-axis digital readout ES-12 V with LCD display
- 3-jaw chuck DK11-200 mm / D6
- Face plate 350 mm
- Steady rest - Passage up to max. 135 mm
- Follow rest - Passage up to max. 65 mm
- Coolant device
- 4-way tool post holder
- Protective device at 4-way tool post holder
- Micrometer longitudinal fence
- Safety clutch
- Turret stop with fine adjustment
- Thread dial
- Motor with magnetic brake according to CE
- Foot pedal with brake function according to CE
- Inital filling with Shell Tellus 46
- LED machine light
- Change gears
- Morse taper drill sleeve
- 2 dead centers
- Splash guard
- Tools
Technical specifications Bernardo Smart 410 x 1500 universal lathe with digital display
|
Distance between centers |
1500 mm |
|
Center height |
205 mm |
|
Swing over bed |
410 mm |
|
Swing over gap |
580 mm |
|
Swing over cross slide |
255 mm |
|
Bed width |
250 mm |
|
Spindle bore |
52 mm |
|
Spindle nose fixture |
DIN 55029, D1 - 6 |
|
Speed range |
(16) 45 - 1800 rpm |
|
Longitudinal feed |
(17) 0,05 - 1,7 mm/rev. |
|
Cross feed |
(17) 0,025 - 0,85 mm/rev. |
|
Metric thread |
(42) 0,2 - 14 mm |
|
Inch thread |
(45) 2 - 72 threads/1“ |
|
Diameter of tailstock sleeve |
50 mm |
|
Travel of tailstock sleeve |
120 mm |
|
Taper of tailstock sleeve |
MT 4 |
|
Motor power |
3,0 / 4,5 kW |
|
Machine dimension (W x D x H) |
2530 x 1000 x 1450 mm |
|
Weight approx. |
1810 kg |
