Properties Bernardo sliding table saw FKS 2600
- Important feature: Sawblade diameter 315 mm can be used when scoring unit is mounted
- Solid square table with roller and telescopic arm guarantee high stability
- Anodized aluminium sliding table available in three lengths
- Powerful drive motor for constant cutting speed, even at cutting height of 100 mm
- Mitre fence and downholder can be moved along entire table length
- Oversize work table and table extensions for cutting width up to 1200 mm come standard
- Extractable telescopic fence (up to 2260 mm) mountable at front or rear of square table, steplessly tiltable from 90º to 45º
- Aluminium parallel fence with micrometric fine adjustment and integrated magnifying glass

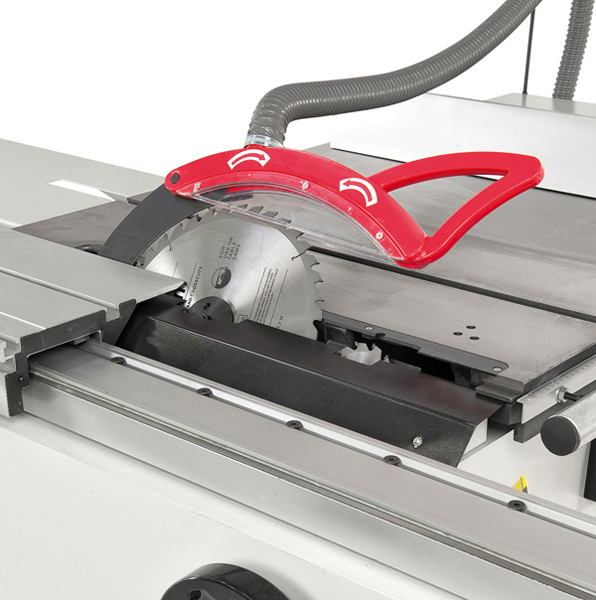

- Solid saw unit guarantees precise work, free from vibrations
Standard accessories Bernardo sliding table saw FKS 2600:
- Carbide sawblade 315 x 3,0 x 30 mm / 40T
- Scoring sawblade 90 x 3,0 x 20 mm / 12T
- Protective cover with dust extraction outlet
- Connector hose with Y-piece
- Mitre fence with eccentric holder
- Mitre fence
- End stop
- Table extension
- Table enlargement
- Rip fence
- Extractble telescopic fence
- Stop with fine adjustment
- Square table
- Push handle
- Push stick
- Tools
Technical specifications Bernardo sliding table saw FKS 2600:
|
Table size |
800 x 380 mm |
|
Sliding table |
2600 x 270 mm |
|
Cutting length |
2600 mm |
|
Max. sawblade diameter |
315 x 30 mm |
|
Max. cutting height 90° / 45° |
100 / 80 mm |
|
Cutting width on rip fence |
1200 mm |
|
Table height |
870 mm |
|
Table extension |
500 x 310 mm |
|
Table enlargement |
800 x 880 mm |
|
Square table with roller |
700 x 580 mm |
|
Speed main sawblade |
4000 rpm |
|
Speed scoring sawblade |
5800 rpm |
|
Scoring sawblade |
90 x 20 mm |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
3,8 kW (5,1 HP) |
|
Motor power input S6 40% |
5,3 kW (7,2 HP) |
|
Voltage |
400 V |
|
Machine dimension (W x D x H) |
2600 x 2900 x 1180 mm |
|
Weight approx. |
318 kg |
