Properties Bernardo sliding table saw FKS 1600 N - 230 V
- Smooth running, precise sliding table with hardened, prism-shaped guide
- Solid square table for operating on heavy, oversize sheet materials
- Large, grey cast-iron machine table, built with top accuracy and polished surfaces
- Extractable, anodized aluminium telescopic fence with solid end stop
- Torsion-free, steel and grey cast-iron machine body

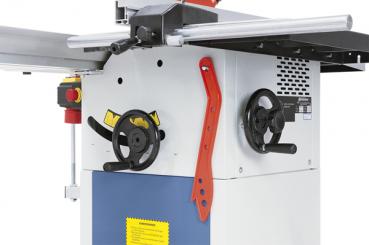

- Handwheel allows for tilting of saw unit up to 45º
- Solid saw unit minimizes vibrations significantly
- Complete with table extensions and enlargement for better support of oversize sheet material
- Aluminium rip fence with fi ne adjustment and precise round rod guide (30 mm)
- All aluminium parts (sliding table, fences,...) are anodized
- Includes solid telescopic arm and square table which can be moved longitudinally
- Powerful drive motor for constant cutting speed, even at cutting height of 80 mm
Standard accessories Bernardo sliding table saw FKS 1600 N - 230 V:
- HM-Sägeblatt 254 x 3 x 30 mm / Z 36
- Sägeblattschutzhaube mit Absauganschluss
- Verbindungsschlauch mit Y-Stück
- Besäumschuh
- Tischverlängerung
- Tischverbreiterung
- Ausziehbarer Teleskopanschlag
- Anschlagklappe
- Auslegertisch
- Schiebestock
- Bedienwerkzeug
Technical specifications Bernardo sliding table saw FKS 1600 N - 230 V:
|
Table size |
800 x 350 mm |
|
Sliding table |
1610 x 240 mm |
|
Cutting length |
1600 mm |
|
Max. sawblade diameter |
254 x 30 mm |
|
Max. cutting height 90° / 45° |
80 / 54 mm |
|
Cutting width on rip fence |
610 mm |
|
Table height |
860 mm |
|
Table extansion |
350 x 410 mm |
|
Table enlargement |
800 x 270 mm |
|
Square table |
600 x 460 mm |
|
Speed main sawblade |
4060 rpm |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
1,5 kW (2,0 HP) |
|
Motor power input S6 40% |
2,1 kW (2,8 HP) |
|
Voltage |
230 V |
|
Machine dimension (W x D x H) |
1610 x 2100 x 1200 mm |
|
Weight approx. |
170 kg |
