Properties Bernardo sliding table saw Classic 1600 C
- Smoothly running, precise sliding table features hardened prism-shaped guide
- Square table with roll ensures user-friendly operation of large workpieces
- Powerful motor with high torque, designed for optimal cutting capacity
- Handwheel features scale for sawblade tilt up to 45º
- Telescopic fence complete with 2 end stops
- Solid saw unit, featuring grey cast-iron tilting elements, supported on both sides
- Table extension for cutting width up to 1295 mm part of equipment
- Parallel fence can be folded down and includes micrometric fi ne adjustment (advantage for large sheet material)
- Large, grey cast-iron table, designed and polished with high accuracy

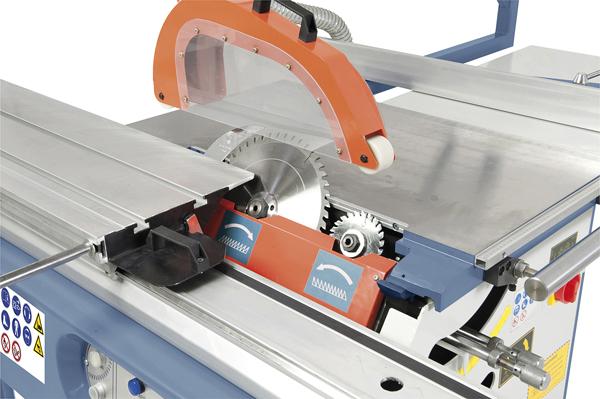

- Complete with independently driven scoring unit (0.75 kW motor)
Standard accessories Bernardo sliding table saw Classic 1600 C:
- Protective cover with infeed roller
- Mitre fence
- End stop
- Table extension
- Extractable telescopic fence
- Longitudinal stop
- Square table with roll
- Push stick
- Scoring unit with independent motor
- Tools
Technical specifications Bernardo sliding table saw Classic 1600 C:
|
Table size |
935 x 620 mm |
|
Sliding table |
1600 x 360 mm |
|
Cutting length |
1600 mm |
|
Max. sawblade diameter |
315 x 30 mm |
|
Max. cutting height 90° / 45° |
90 / 60 mm |
|
Cutting width on rip fence |
1295 mm |
|
Table height |
850 mm |
|
Table extension |
750 x 600 mm |
|
Square table with roll |
725 x 550 mm |
|
Speed main sawblade |
4000 / 6000 rpm |
|
Speed scoring sawblade |
8000 rpm |
|
Scoring sawblade |
120 x 20 mm |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
4,0 kW (5,5 HP) |
|
Motor power input S6 40% |
5,5 kW (7,5 HP) |
|
Motor scoring unit |
0,75 kW |
|
Voltage |
400 V |
|
Machine dimension (W x D x H) |
1680 x 3000 x 1520 mm |
|
Weight approx. |
550 kg |
