Bernardo sliding table saw Basic 2800

• Sturdy cantilever table for machining large and heavy panels
• Extendable telescopic fence (up to 2260 mm), can be mounted on the front and rear of the cantilever table
• Powerful drive motor ensures optimum cutting performance even during prolonged operation

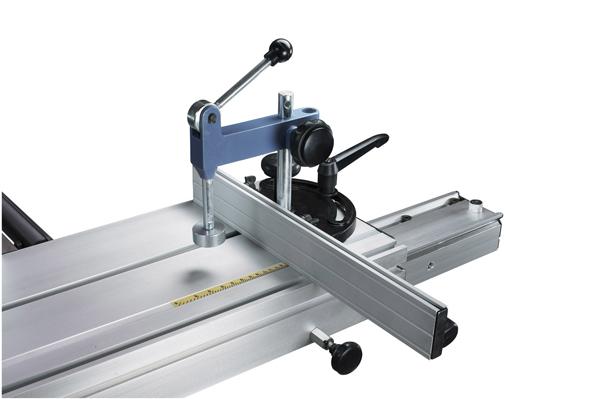

• Mitre fence and hold-down device can be moved along the entire length of the carriage
• Table extension and widening as standard for placing larger panels on the carriage
• Stable saw unit guarantees vibration-free and precise work
• Aluminium sliding table with hardened guide rails
• Machine body consisting of a torsion-resistant steel/cast iron combination
• Large machine table made of grey cast iron, machined and ground to a precise plane
• Increased operating comfort due to the solid rip fence with magnifying glass
• Angular adjustment of the saw blade up to 45° according to scale by means of handwheel

Scope of delivery Bernardo Basic 2800 sliding table saw​

• TCT saw blade 315 x 3.0 x 30 mm / Z 40
• 2-piece scoring saw blade 2-100 x 20 mm / Z 24
• Saw blade protection bonnet with suction connection
• Connecting hose with Y-piece
• Mitre fence with eccentric clamp
• Mitre fence
• Trimming shoe
• Table extension
• Table extension
• Extendable telescopic fence
• Fence with fine adjustment
• Extension table with roller
• Push stick
• Operating tool

Available special accessories Bernardo sliding table saw Basic 2800​

• 3-piece saw blade set 315 mm, in aluminium case (Art.No.:17-1653)
• Scoring saw blade 2-100 x 20 mm (Art.No.:17-1604)
• Extraction unit DC 300 / 400 V (Art.No.:12-2045)
• Extraction unit DC 400 / 400 V (Art.No.:12-2060)
• PU spiral suction hose diam. 100 mm (6 m) (Art.No.:12-1077)
• Automatic switch-on device ALV 10 / 1M (Art.No.:12-1150)
• Digital protractor Level Box (Art.No.:31-1041)

Technical data Bernardo sliding table saw Basic 2800​
