This series of semi-automatic bandsaws features a wide range of cutting capacities, making these models ideal for various applications. The semi-automatic function allows quick and easy operating.
Properties Bernardo semi-automatic sawing machine MSB 560 H
- Automatic lifting of the saw frame whith adjustable lifting height when cutting is complete

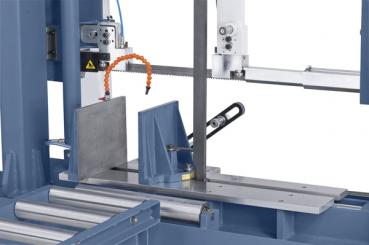

- Vice tilts from 90° up to 45° for mitre cutting
- Increased stability due to precisely polished linear guide for parallel cuts
- Automatic blade break control stops the machine if blade breaks
- Automatic shut-down at cutting end
- Stepless speed change to allow precise adjustment to each workpiece
- Serial roller table for operating with long workpieces
- Bandsaw blade guiding features ball bearings and carbide tips
- Optimal power transmission to the blade wheel due to the robust gear unit
- Torsion-free, strong saw frame for precise cutting
Standard accessories Bernardo semi-automatic sawing machine MSB 560 H
- Bandsaw blade
- Material fence
- Manometer for blade tension
- Hydraulic vice
- Coolant device
- Hydraulic cylinder
- Motor protective switch
- Automatic blade break control
- Automatic shut-down
- Roller table
Technical specifications Bernardo semi-automatic sawing machine MSB 560 H
|
Cutting capacity round 90° |
560 mm |
|
Cutting capacity square 90° |
560 x 560 mm |
|
Cutting capacity flat 90° |
750 x 560 mm |
|
Cutting capacity round 45° |
560 mm |
|
Cutting capacity square 45° |
430 x 430 mm |
|
Cutting capacity flat 45° |
430 x 560 mm |
|
Working height |
590 mm |
|
Cutting speed, stepless |
20 - 100 m/min |
|
Bandsaw blade dimension |
6000 x 41 x 1,3 mm |
|
Coolant pump |
120 W |
|
Motor power |
4,0 kW |
|
Machine dimension (L x D x H) |
3400 x 1100 x 1950 mm |
|
Weight approx. |
1700 kg |
